Nordson 3100V Series Customer Product Manual

Tank
B 3-5
Reassembling
the Tank and
Manifold
14. Remove
the screws
and washers that secure
the manifold to the
tank;
then
separate the manifold from
the tank.
15. Remove
the two
O-rings
from
the
grooves
in the manifold
and discard
them.
You should replace
the O-rings any time the
manifold is
separated from
the tank. Refer lo Manifold
Assembly Parts Lrbtin
the
Hydraulics
section for the
O-ring
part
number.
Follow
this
procedure
to reassemble the tank
and manifold and to
reinstall
them on the unit.
1. Turn
the tank upside down
and
place
it on a flat surface.
2. See Figure B
3-4. Lubricate two new
O-rings with
O-ring
lubricant
and
place
the
O-rings
in
their
grooves
on the manifold.
4130830A

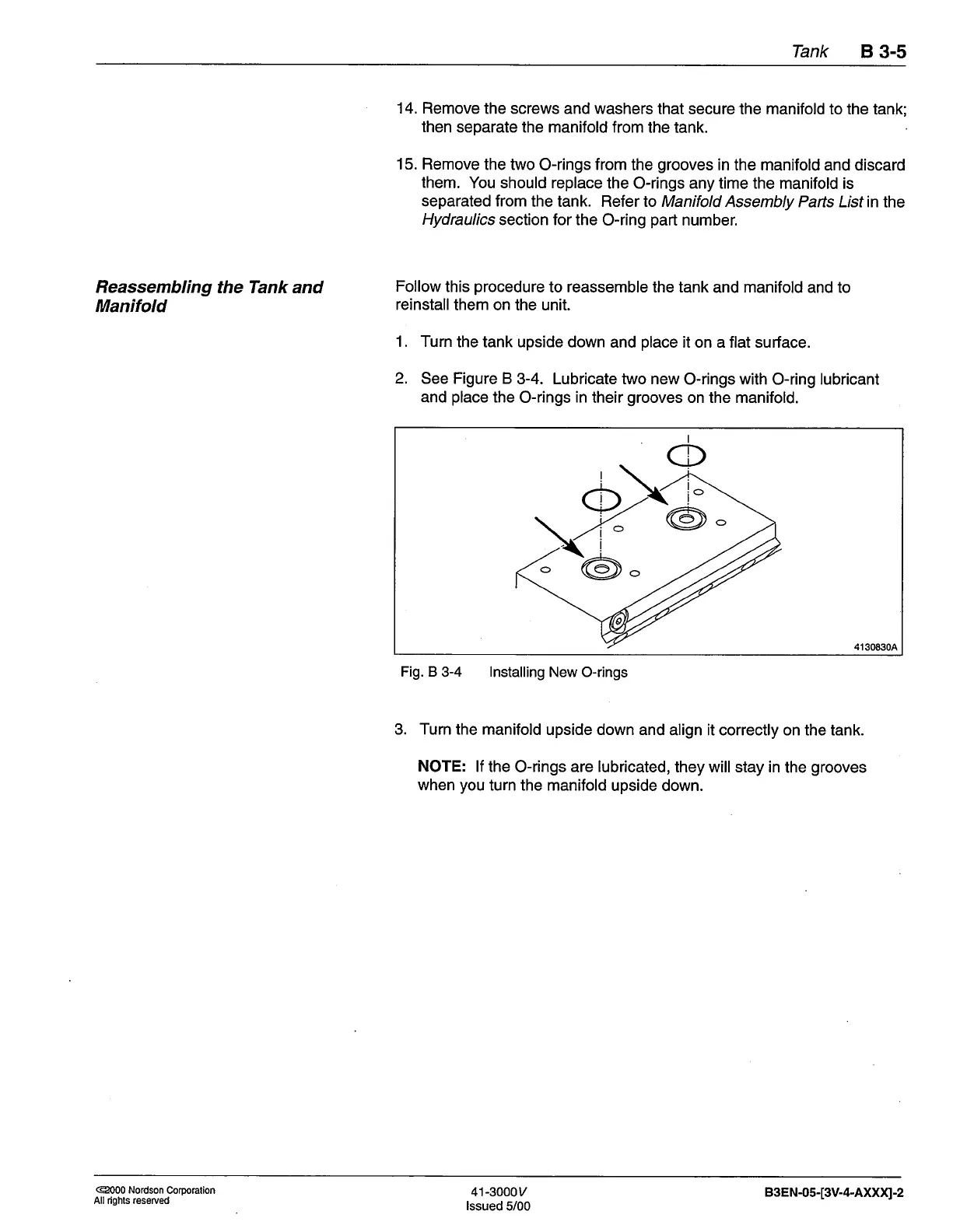

Fig. B
3-4
lnstalling
New O-rings
3. Turn the manifold
upside down
and align it correctly on the tank.
NOTE:
lf the
O-rings are
lubricated,
they will stay in
the
grooves
when
you
turn the manifold
upside down.
@000 Nordson
Corporation
All rights reserved
41-3000y
lssued 5/00
83EN-05-[3V-4-AXXXj-2
