Nortel BayStack 410 24T - Configuring 802.1 Q Vlans

Using the BayStack 410-24T 10BASE-T Switch
C-2
309985-B Rev 00
Configuring 802.1Q VLANs
To create or modify an 802.1Q VLAN, follow the flowcharts in
Figures C-1
to C-3.
Choose VLAN Configuration (or press v) from the VLAN Configuration Menu
screen to open the VLAN Configuration screen.

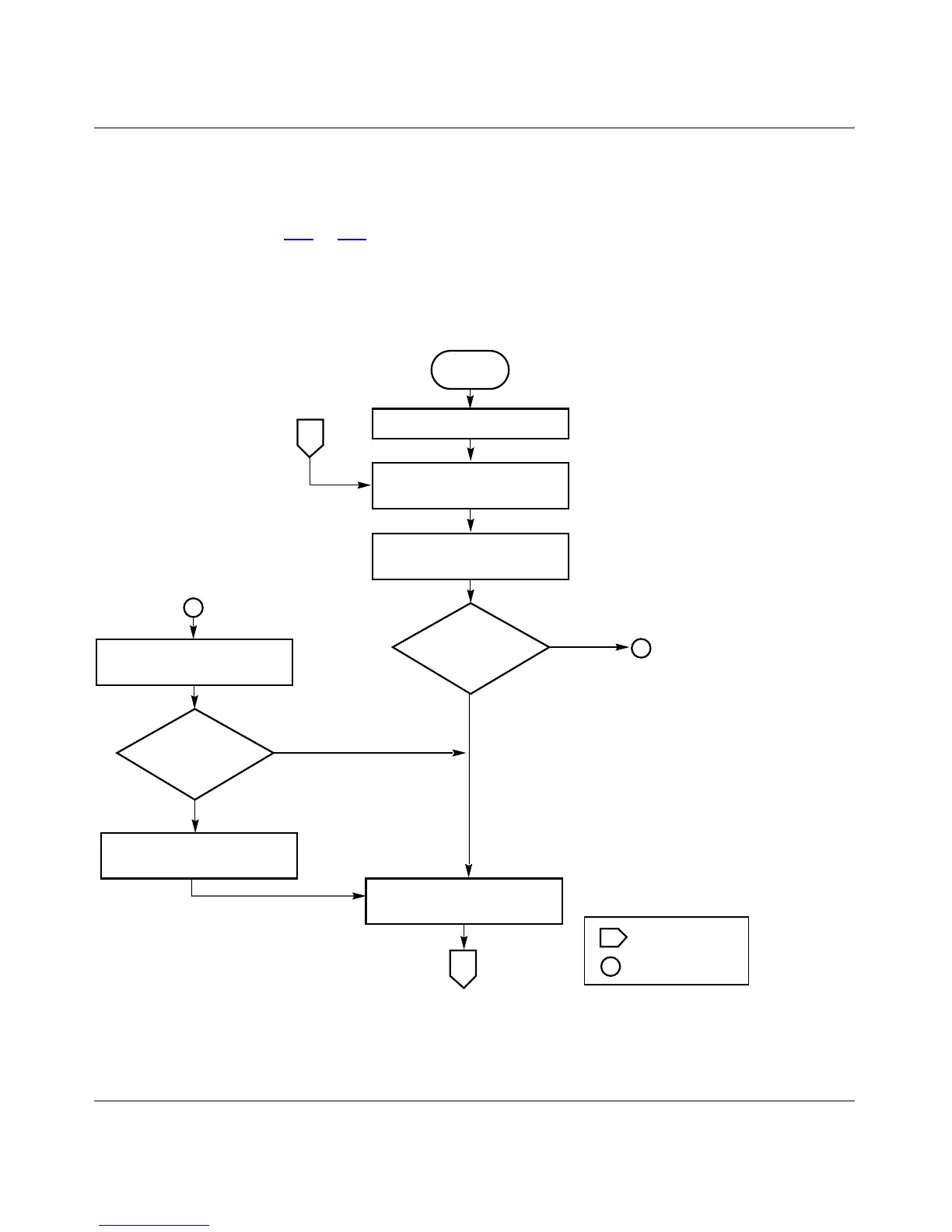

Figure C-1. Configuring 802.1Q VLANs (1 of 3)
BS41049B
Yes
No
VLAN Configuration screen
Select the appropriate value
for the Create VLAN field.
Activate VLAN State.
Is
VLAN Type
Port-Based?
3
1
Select the appropriate value
for the VLAN Type field.
A
Yes
No
Is
the PID
user-defined?
Select the appropriate PID
value for the PID field.
A
Enter the user-defined
PID value.
Off-page reference
On-page reference
Key
Start
