Introduction to the BayStack 410-24T Switch
309985-B Rev 00
1-35

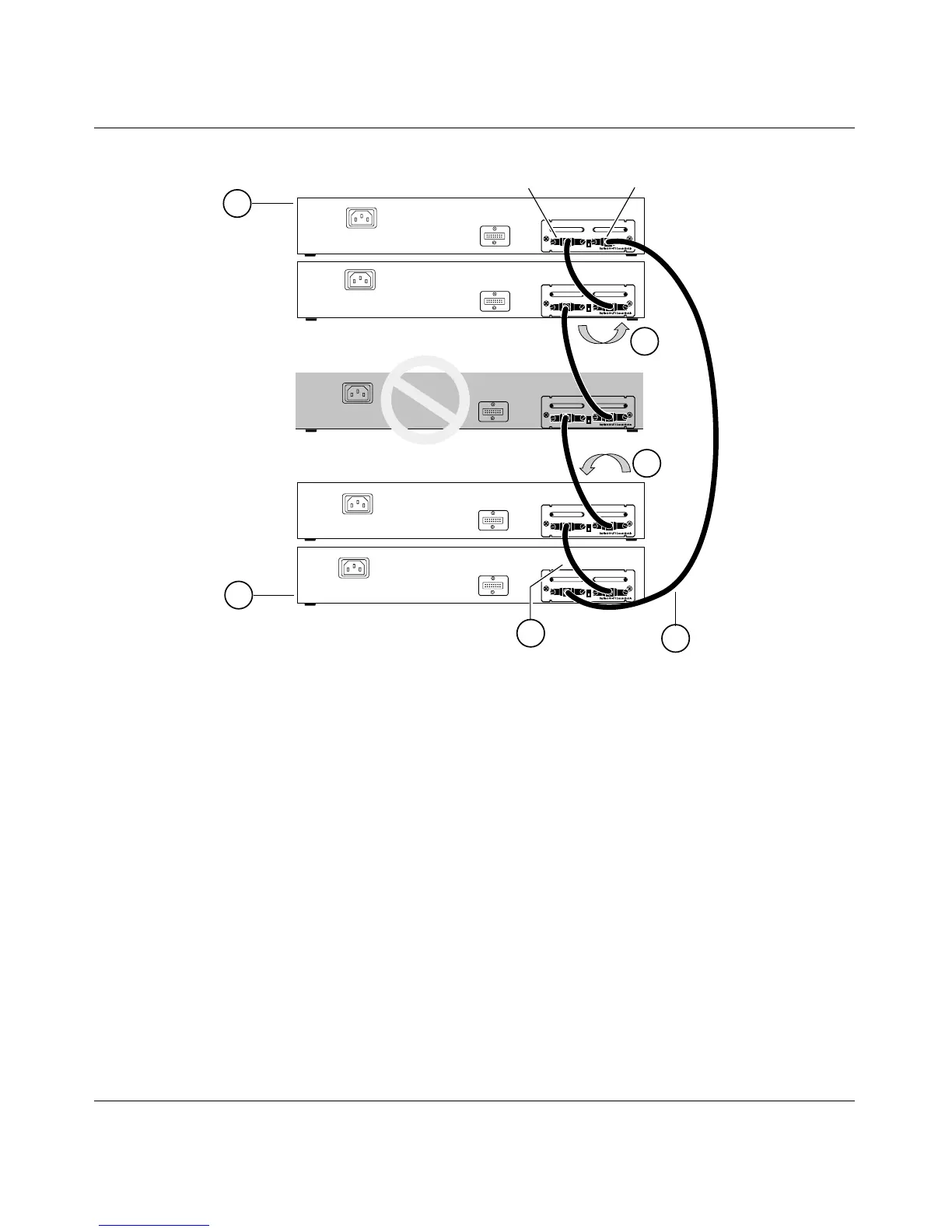

Figure 1-14. Redundant Cascade Stacking Feature
Unit 2
1 = Base unit
2 = Last unit
3 = Cascade cable (PN 303978-A)
4 = Cascade max-return cable (PN 303979-A)
BS41013A
Cascade A Out
Cascade A In
Unit 1
Unit 5
Unit 4
Unit 3
2
1
B
A
4
3
