4.7.1 Mounting on the Standard Version Spindle
Use the Spindle Index Pin to lock the headstock
spindle before commencing.
Step 1:
Use the Allen key to remove the safety screw from
the faceplate or chuck before installation.
Step 2:
Thread the faceplate or chuck onto the spindle
thread all the way. Ensure the surface of the
faceplate is sitting flat against the spindle surface.
Step 3:
Tighten the safety screw on the faceplate or chuck
to lock the faceplate in place.
Unlock the spindle before turning the machine on.
WARNING! The faceplate or chuck body must contact the shoulder on the spindle bearing. When
installing or removing the Faceplate or Chuck from the spindle, the side-locking grub screws MUST
be completely removed. This avoids any potential damage to the spindle that the safety screws may
cause if it were not completely removed, when winding the Faceplate or Chuck on or off the spindle.
4.7.2 Mounting on the Euro ASR version spindle

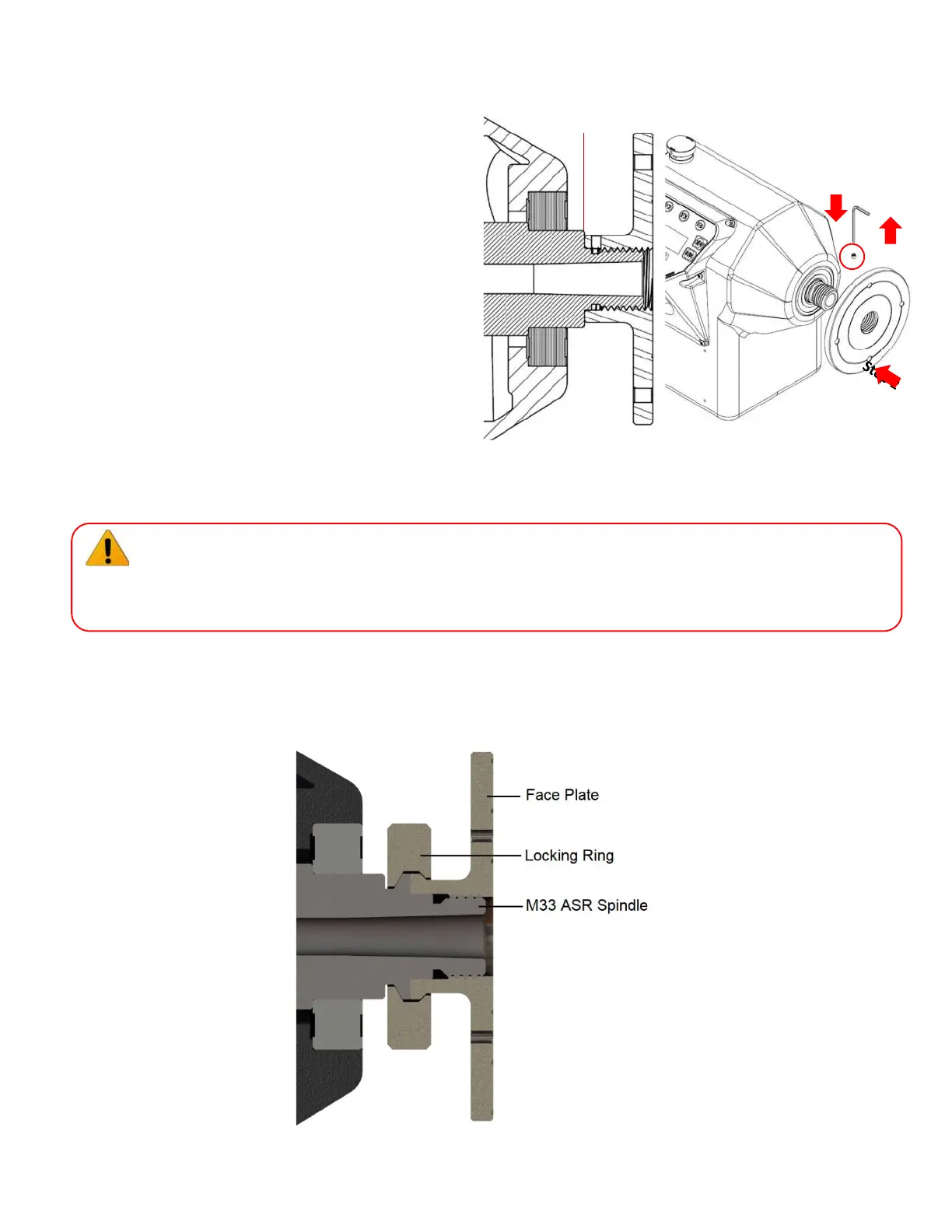

The diagram below illustrates a cross sectional view of an M33 ASR Eurolock version spindle with an M33 ASR Eurolock
chuck mounted.
Step 1
Step 3
Make sure there is no
gap between faceplate
and spindle
