Nova NEBULA 55600 - Lifting Mechanisms Method; Manual Lifting Method

12
128-0521-002
4.2.1 Lifting Mechanisms Method
1. Position straps around lathe bed.
IMPORTANT: Do not place straps around spindle, near levers, knobs or other parts that can be damaged when lifting.
2. Position lathe onto stand and secure with screws and washers (Figure above) using 10mm Allan key.
3. Tighten screws firmly. Rotate adjustable nut on feet as needed to establish level for the lathe. Tighten locking nuts
on each foot against adjustable nut and leg casting.
4.2.2 Manual Lifting Method
1. For easier lifting of heavy components, take apart walls of shipping container, remove Phillips head screws and
stop plates at ends of bed, and slide headstock, tool rest, and tailstock off bed before lifting bed from container.
2. Attach bed to Stand set and secure with screws and washers using 10mm Allan key.
4. Tighten screws firmly. Rotate adjustable nut on feet as needed to establish level for the lathe. Tighten locking nuts
on each foot against adjustable nut and leg casting.
CAUTION! Seek help when moving the heavier
components (Stand, Bed and Headstock) to help
avoid risk of injury.

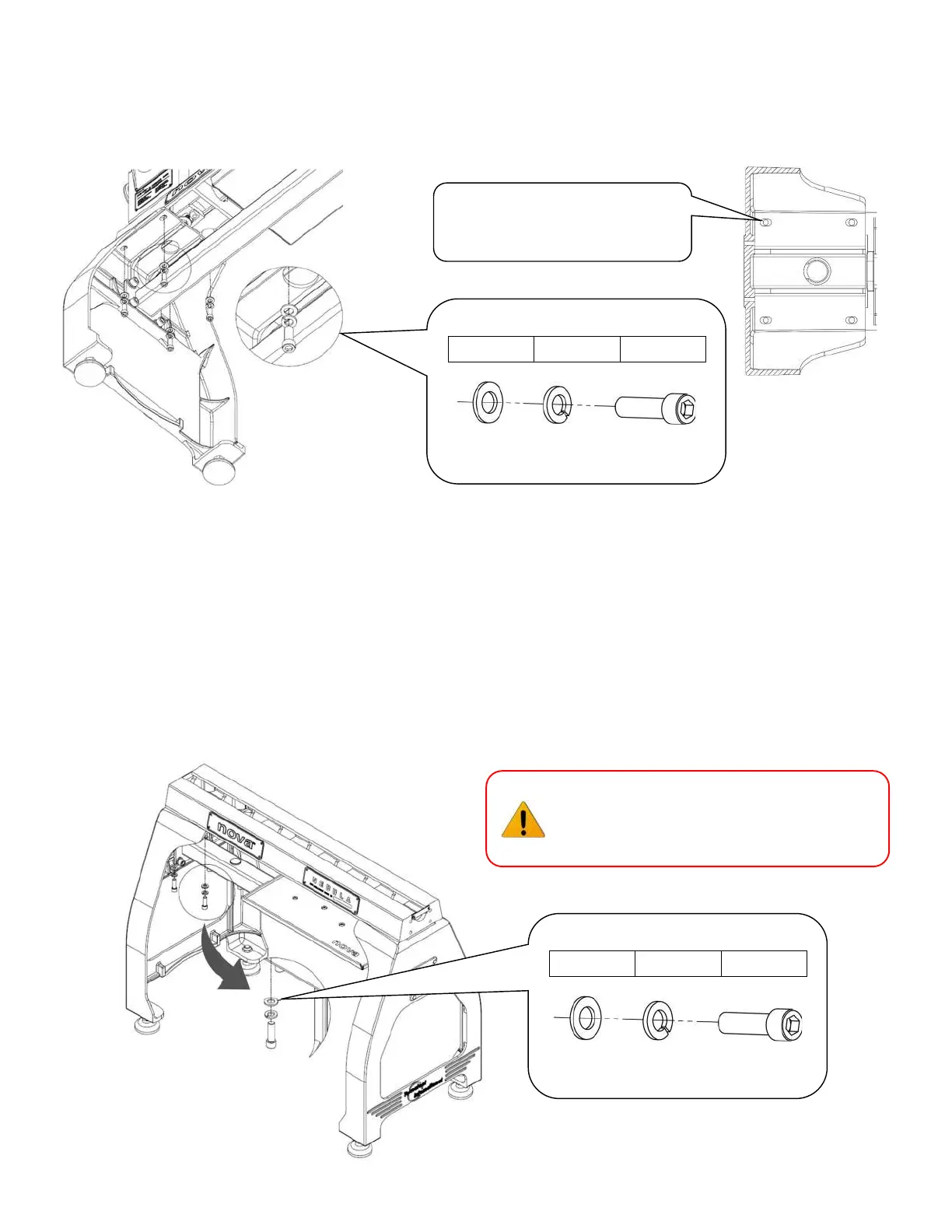

ASSEMBLY NOTE
Washer
Spring
Washer
Bolt
Repeat for all 8 bolt holes on bed
ASSEMBLY NOTE
Washer
Spring
Washer
Bolt
Repeat for all 8 bolt holes on bed
Align the lathe bed mounting holes
with the slots on the stand legs
before inserting the bolts.
