4.1 Unpacking and Preparing the Lathe
1. Remove all smaller items from main carton. Do not discard carton or packing material until the lathe is assembled and
running satisfactorily.
2. Inspect contents for shipping damage; if any is found, report it to your distributor.
3. Compare contents of shipping carton with the contents list in this manual. Report shortages, if any, to your
distributor. Note: Check lathe first – some parts may have been pre-installed.
4. Exposed metal areas of the Lathe, such as bed ways and spindles, have been factory coated with a protectant. This
should be removed with a soft cloth and a cleaner degreaser. Clean the bed areas under headstock, tailstock and tool
support base. Do not use an abrasive pad, and do not allow solvents to contact painted or plastic areas.
WARNING! Seek help when moving the NOVA NEBULA DVR 1825 lathe and its heavier components to help avoid
risk of injury. Use straps in good condition. Straps/lifting mechanisms must be properly rated for lathe weight.
Read and understand the contents of this manual and recommended procedures before attempting to assemble
or operate the Lathe or its parts.
DO NOT CONNECT POWER ON LATHE UNTIL FULLY ASSEMBLED.
4.2 Installing Stand and Beam Set

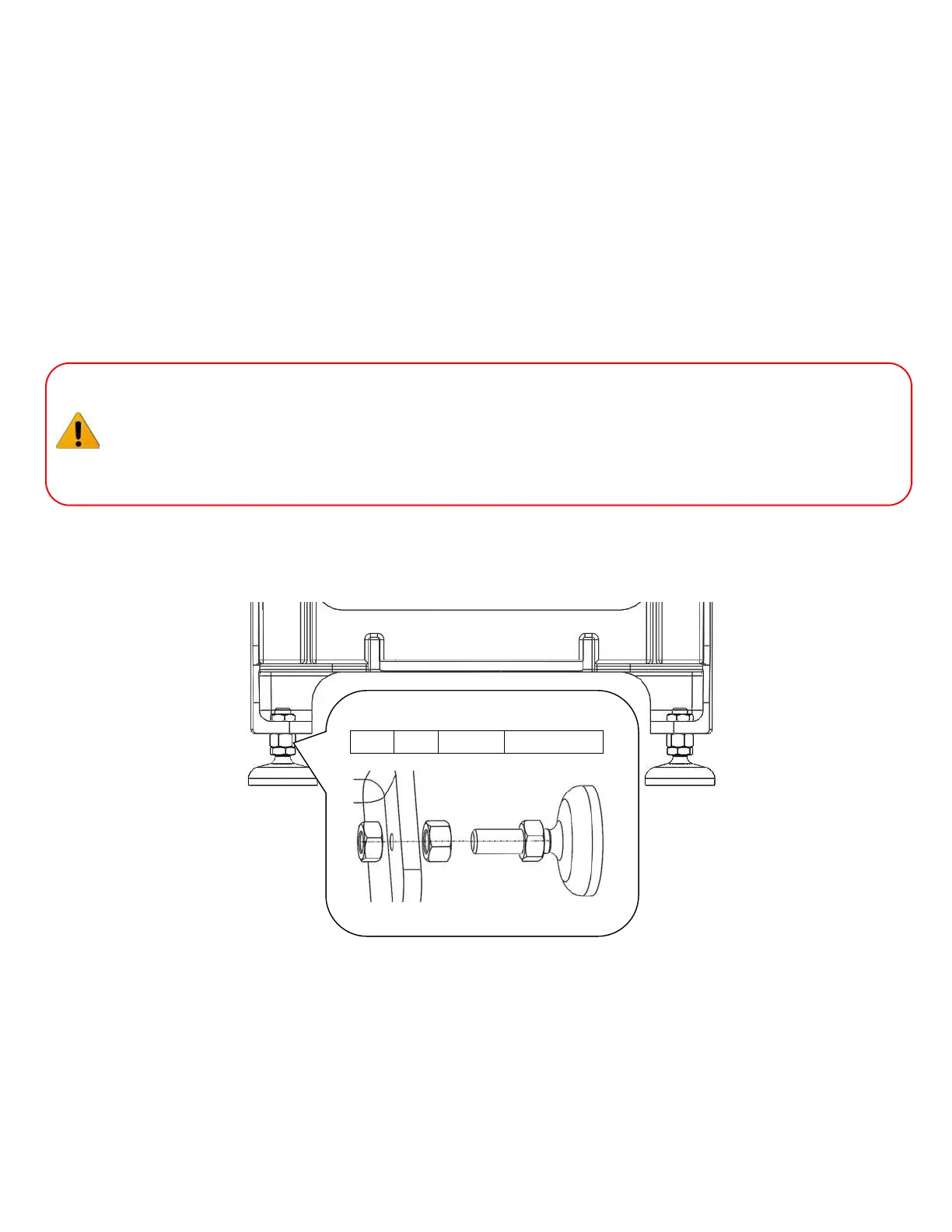

1. Install adjustable feet into the bottom of legs (Figure above) and tighten the hex nut against leg casting. The feet
can be adjusted later.
ASSEMBLY NOTE
Lock
Stand
Adjustable
Feet
Repeat for all 2 bolt holes on Stand
To Next Page
