Changing the Floor Tool Blades
ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO
MAINTENANCE.
4
2
3
1
5

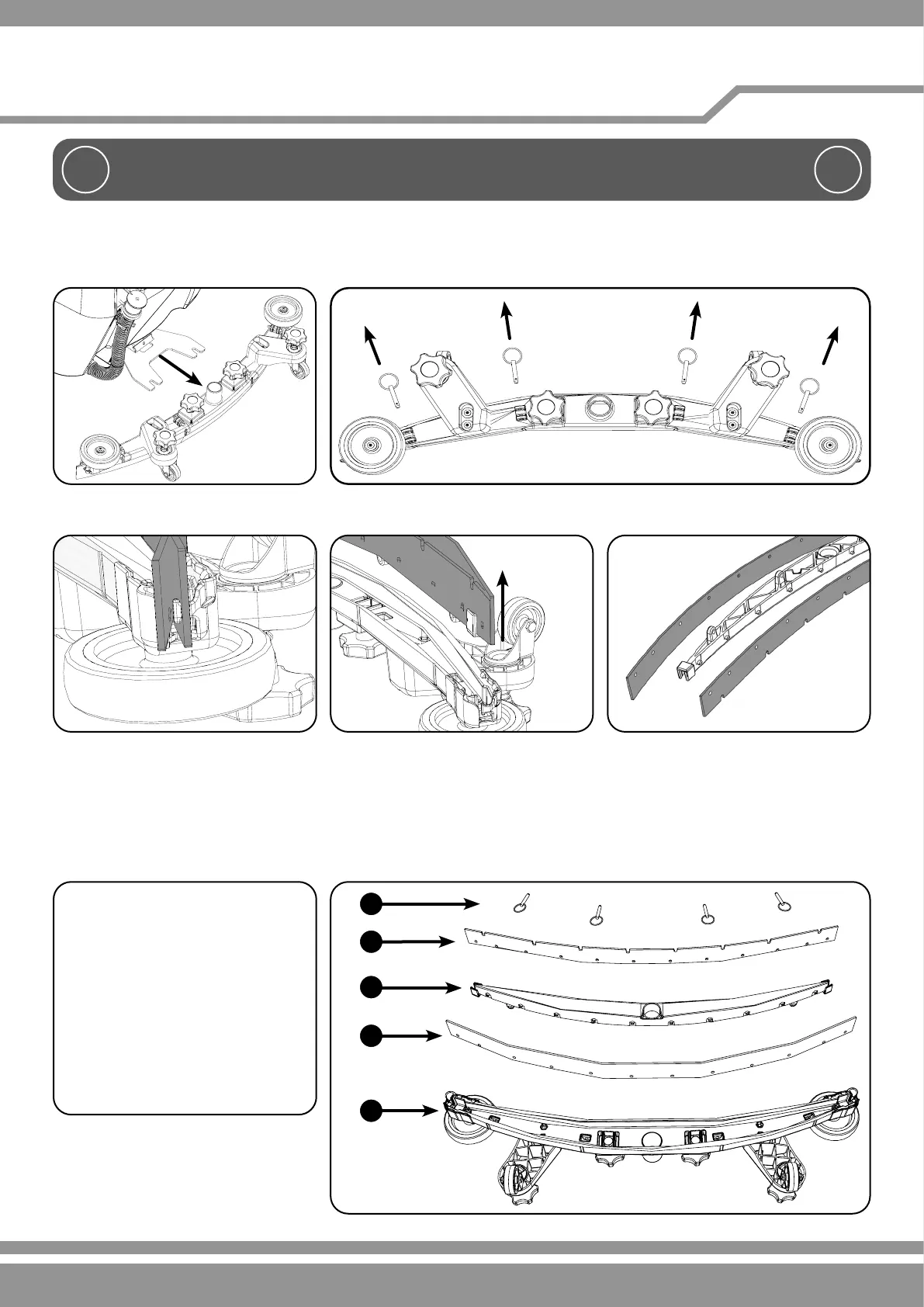

Floor Tool Overview
1. Retaining pins x 4
2. Front blade (slotted)
3. Blade carrier
4. Rear blade
5. Floor tool main body
Note: The blades are designed to be
reversible, thus extending their useful
working life.
! !
Lower the oor tool then unscrew the retaining knobs and slide it o󰀨 the holding bracket.
Rinse the oor tool assembly with clean water and ret.
Periodically the oor tool blades should be examined and checked for wear and damage.
Replacement is a reversal of the removal process.
Remove oor tool. Remove four retaining pins.
Turn the oor tool over. Separate the blade from the carrier. Peel away blades.
