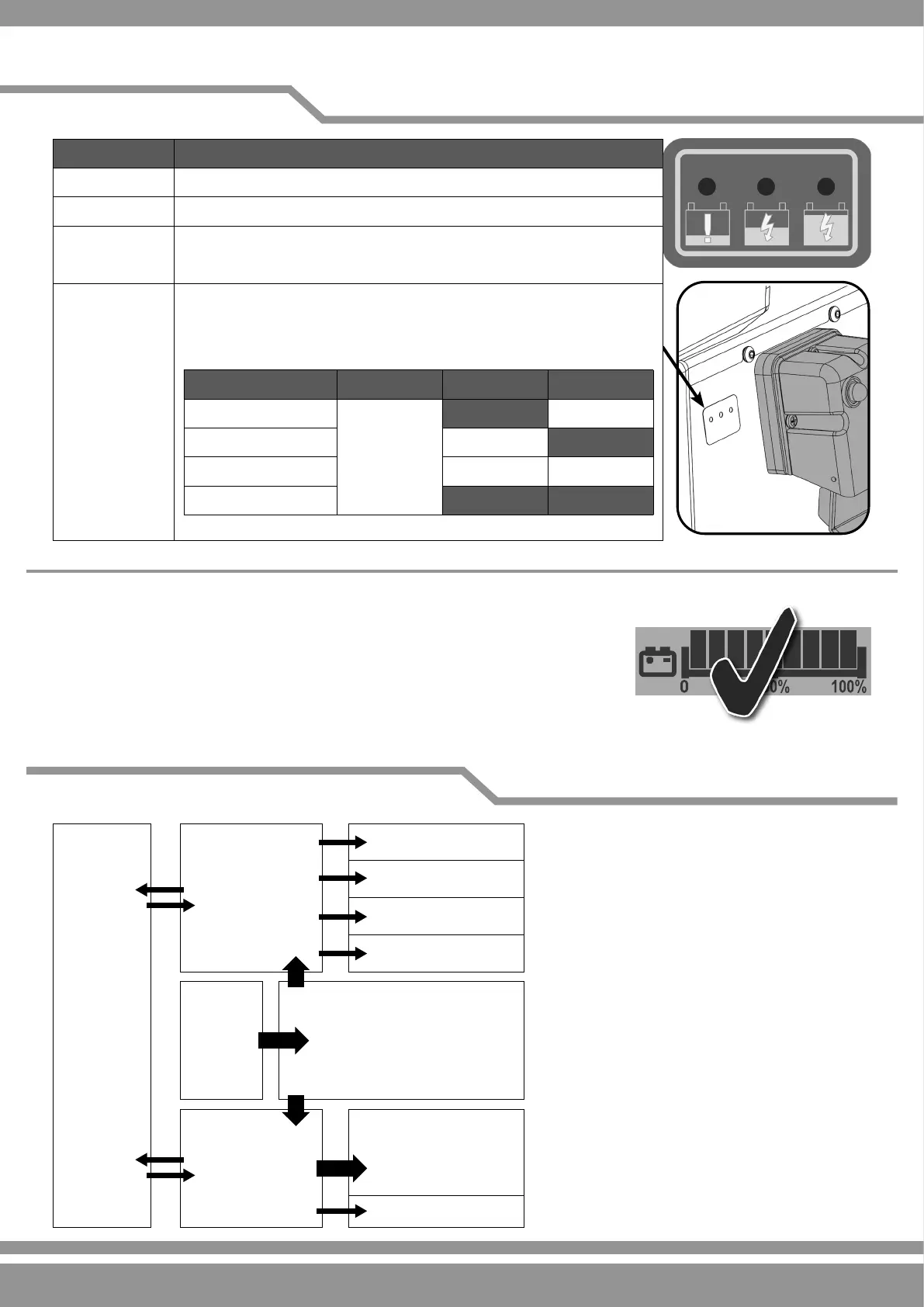

Signal (LED) Meaning
Red LED on First Phase (Constant Current Mode).
Orange LED on Second Phase (Constant Voltage Mode).
Green LED on
Third Phase (Constant Voltage Mode) Charge Complete.
However, after full re-charge, leaving the charger connected moves to oat-
charge mode to help to maintain a healthy balance between batteries.
Red LED
ashing
followed by
Pause
Cooling Fan Locked > 1 ash between pause.
Over Voltage Protection / Output Short Circuit / Battery Reverse Polarity
> 2 ashes between pause.
Over Temperature Protection > 3 ashes between pause.
Charge Time has exceeded 16 hrs during phase 1 or 2 > 4 ashes between pause.
Note:
O
means illuminates continuously
Condition RED LED YELLOW LED GREEN LED
Pre-charge Timeout
Flashing 4
Times
O
CC Timeout
O
CV Timeout
O O
Battery Disconnection
Note: Re-charge the machine fully after its last use. Do not leave the machine in a discharged state.
Charging Light Sequence
Under abnormal use;
i.e. leaving the machine without charging for a period of time, we advise that you follow these steps:
Float charge mode allows to maintenance LFP batteries at the right level of health.
The machine should be left on oat charge overnight or over the weekend at least once per month.
Charge fully the day before you start using the machine again.
CNTR
MOTOR DRIVE
CHARGER
DC BATTERY
PUMP
LIGHT
TRACTION
TRACTION MOTOR
HORN
CONTROL
BRUSH MOTOR
VAC MOTOR
Schematic Diagram
