Numatic NX1K - Machine Set up Guide

5

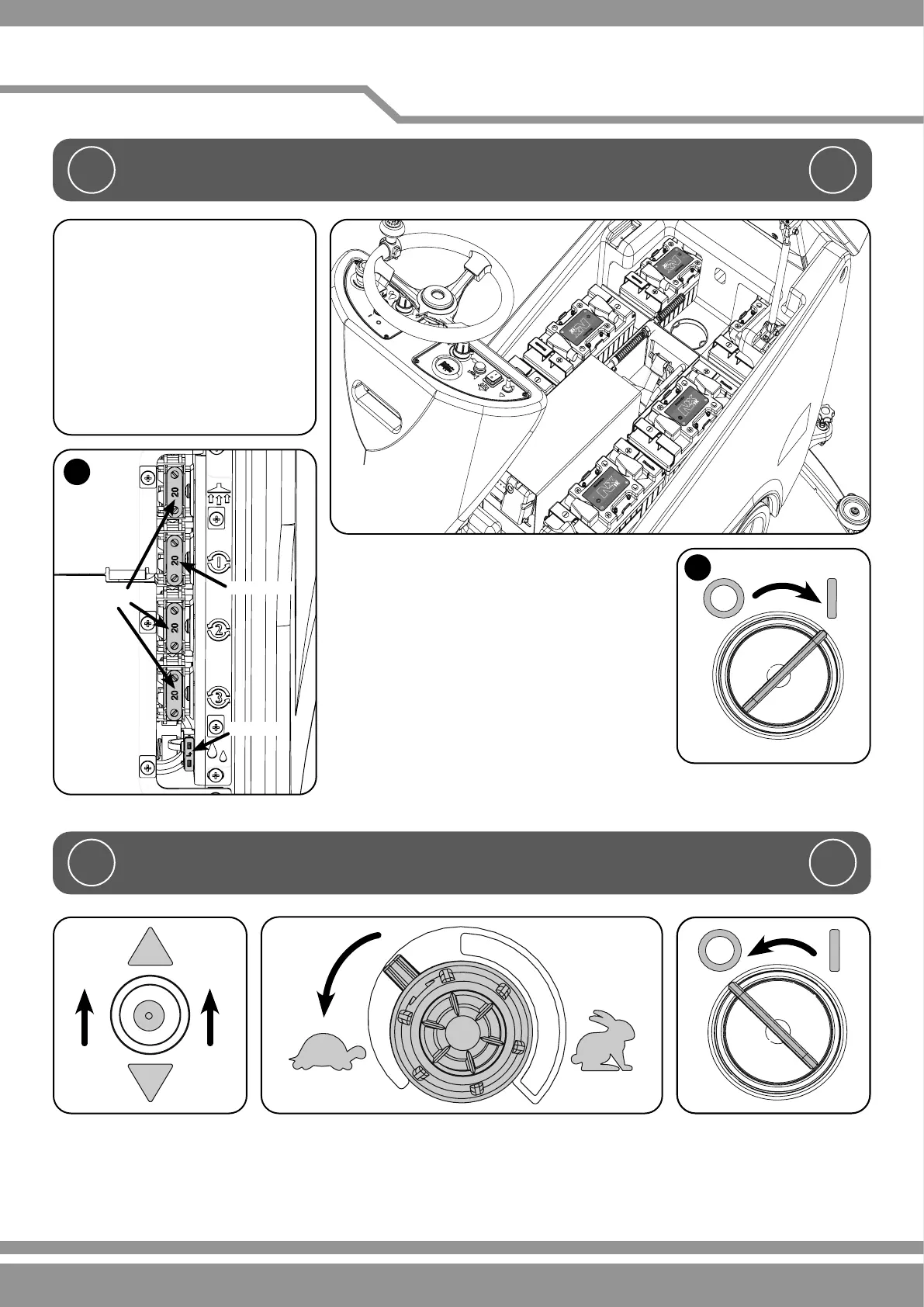

Lift top tank assembly to reveal battery compartment,
ensuring you use the handle grip provided.
Fit vacuum and brush fuses (contained in start-up
pack) into the fuse holders as illustrated. (Fig. 1)
Charge the machine to activate the batteries. After
the batteries are activated, LEDs should illuminate on
the top of all the batteries.
Insert Key into ignition located on the control panel.
(Fig. A)
Numatic International Ltd recommends ONLY using
911948 NX1K LFP battery type Lithium Batteries
provided with this machine.
Note: DO NOT depress accelerator pedal while software initialises. The machine will not operate in reverse with the oor
tool lowered. The seat is tted with a pressure sensor that disables the machine until an operator is seated.
Turn the key to switch on the
machine, set lever to forward.
Set to slowest speed, depress accelerator and drive o󰀨 the pallet
using ramp provided.
Once in a safe location switch
o󰀨 machine.
Insert the Ignition key and
switch the machine on. (Fig. A)
A
CONTENTS
● Owner manual
● Battery charging lead
● 2 x Keys
● 4 x 20 Amp fuses
● 4 Amp fuse
● Maxi fuse-puller
!!
ENSURE THAT NO METAL OBJECTS COME INTO CONTACT WITH BATTERY TERMINALS
WHILE THE BATTERIES ARE EXPOSED.
Machine Set-up Guide
1
20 Amp
20 Amp
4 Amp
PLEASE READ BEFORE COMMENCING ANY OPERATION AFTER THE REMOVAL OF
ALL THE PACKAGING, CAREFULLY OPEN AND CHECK THE CONTENTS.
!!
Use handle grip
when raising or
lowering the
top waste-tank.
