Edition 02 to 12/2013
3.14
SERVICE MANUAL

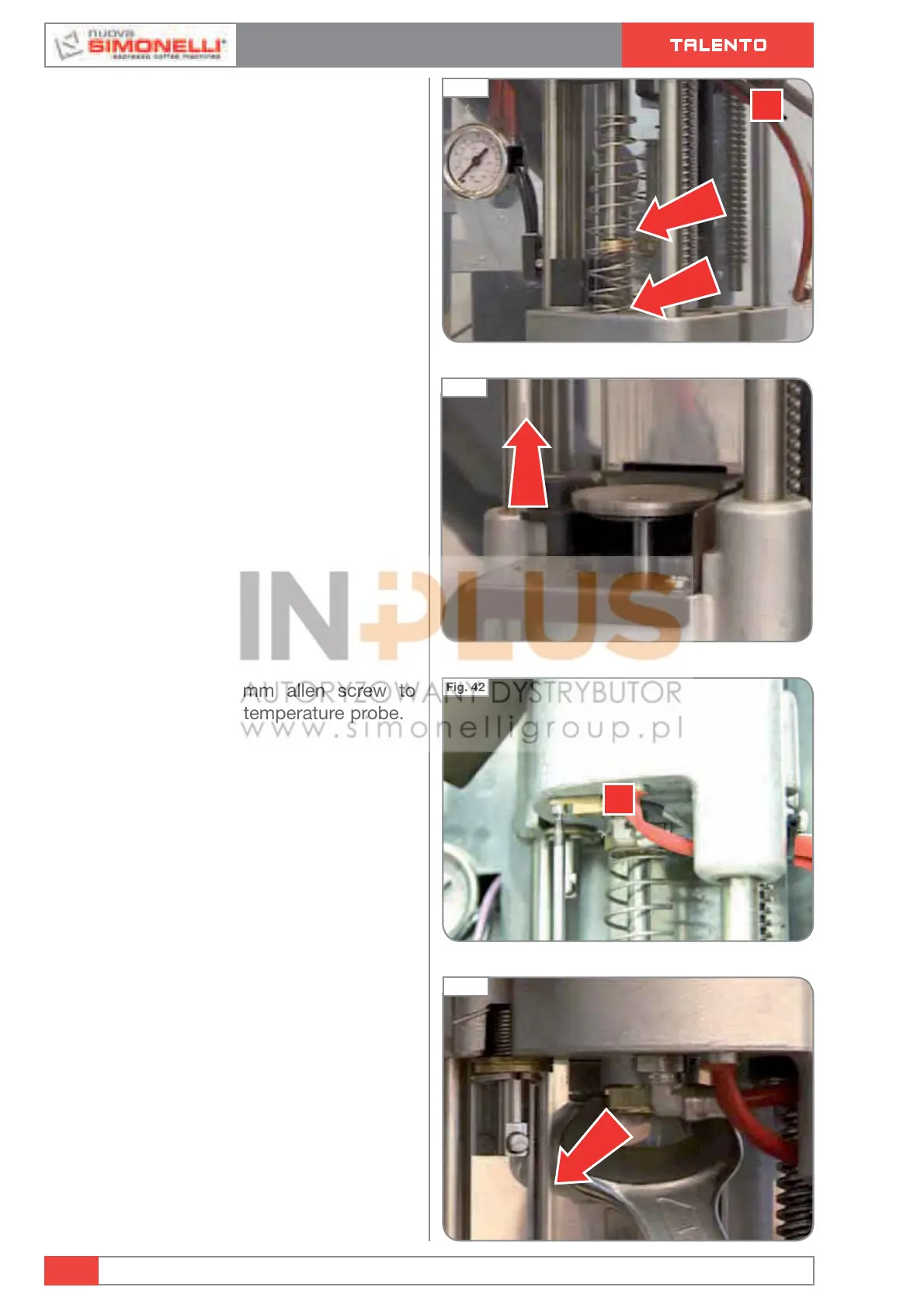

3 Press key number 6 to move the cham-
ber in top position.
4 Slide out the springs (C) and remove the
central o-ring (D) on the bottom piston
shaft.
5 Press the number 7 key and release it
before the blade starts its ejection move-
ment.
6 Slide the piston out from the top, then
press 8 to move the group to the inter-
mediate position.
7 Take out the 2,5 mm allen screw to
remove the group’s temperature probe.
8 With the aid of a 21 mm wrench, remove
the screw supporting the seal and slide it
out with one finger.
Fig. 40
Fig. 41
Fig. 42
Fig. 43
