Nuova Simonelli TALENTO - Grinder Chute

Edition 02 to 12/2013
8.7
SERVICE MANUAL
As well as the grinders, in the top part of the
machine it’s possible to see the conveyors of
the two types of ground coffee, the fan for the
ground coffee chute (A) (0,08 A) and the fan to
cool the containers (B) (0,15 A), which serves to
keep coffee bean quality at a constant level.

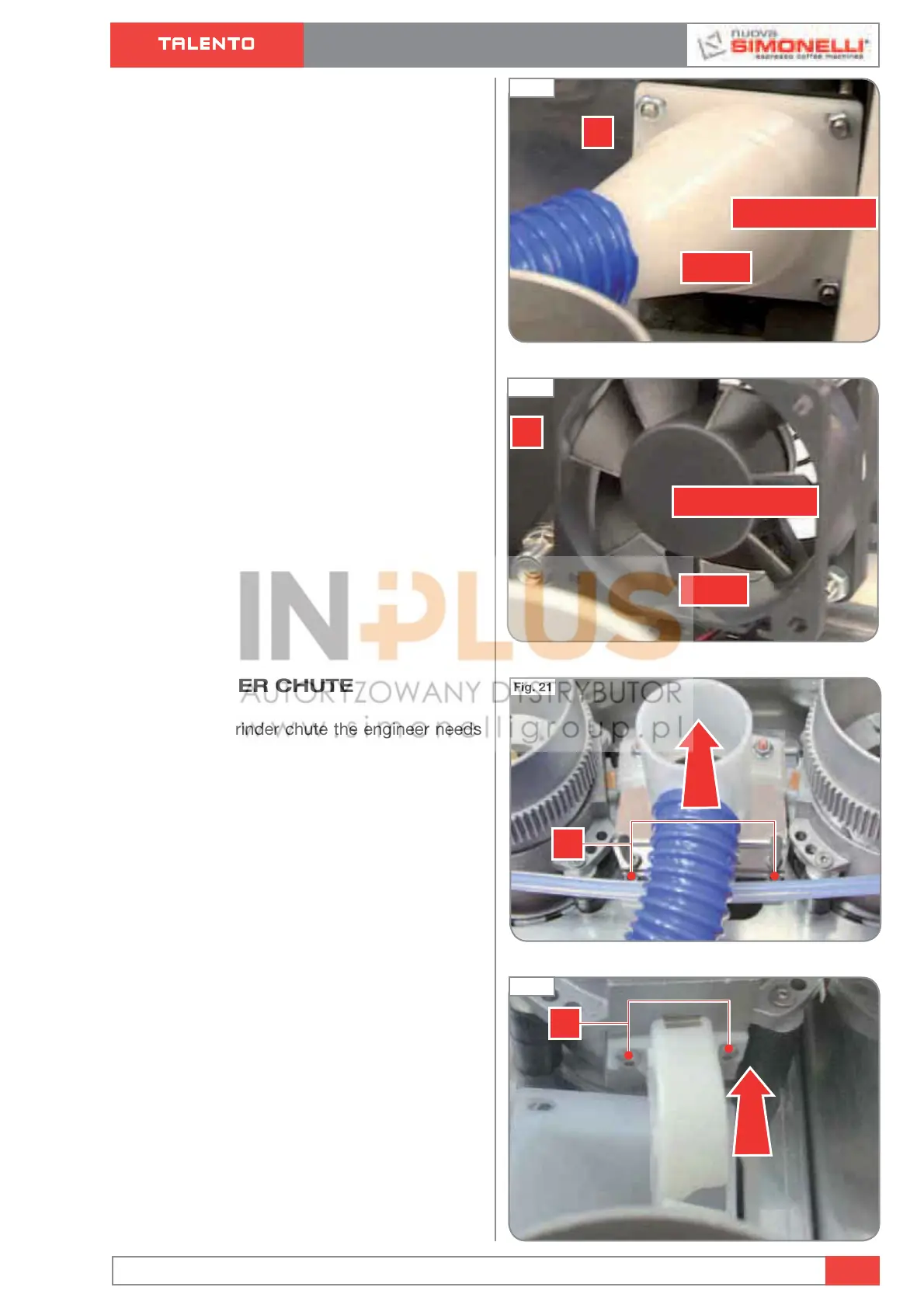

8.4 GRINDER CHUTE
To change the grinder chute the engineer needs
to:
1 Clean the coffee conveyor with the long
brush provided.
2 Slide out the blue tube.
3 Remove the two allen screws and slide up
the top cover.
4 -PPTFUIFUXPBMMFOTDSFXTBOETMJEFVQUIF
coffee grinder chute.
AIR IN
0,08A
A
Fig. 19
AIR OUT
0,15A
B
Fig. 20
3
Fig. 21
4
Fig. 22
