9.1 MILK CIRCUIT TALENTO
PLUS
9.1.1 CAPPUCCINO MAKER AND
NOZZLE
To access the cappuccino maker, the engineer
will need to:
1 Switch off the machine.
2
Unhook the plastic cover of the pouring
nozzle moving up the metal lock.
The pouring nozzle contains:
A Cappuccino maker, with the inlet pipe for the
steam, in red silicon, on the top (A1) and the
milk pipe, in white silicon, on the right (A2)
B Pipe for coffee (Blue)
C Pipe to add hot water (Teflon)
To remove the pouring nozzle, the engineer will
have to:
3 Press the clip at the back.
4 Release the pouring nozzle from it’s original
position.
5 Remove the cappuccino maker.
6 Free the upper part from the steam and milk
pipe.
2

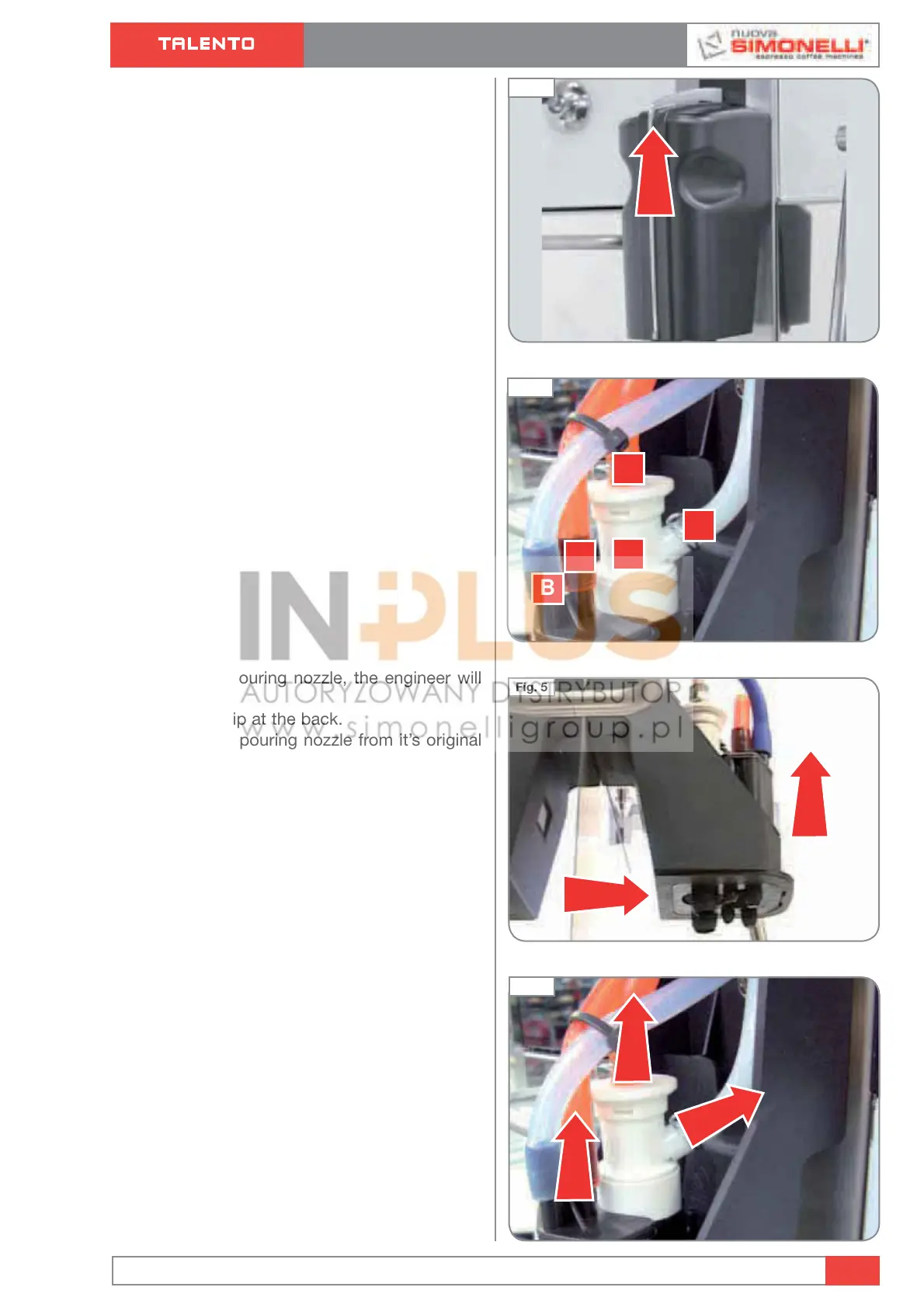

Fig. 3
A2
A1
A
C
B
Fig. 4
3
4
Fig. 5
6
6
5
Fig. 6
