1.3 Mounting Considerations
As shown in Figure 1-2, when mounting the developer system in a vehicle, make sure that
there are no obstructions on the front and rear panels to block the airflow. There must be
enough clearance around the fan opening on the front panel for the cooling solution.
See Table 1-2 for the recommended clearance for all four sides.

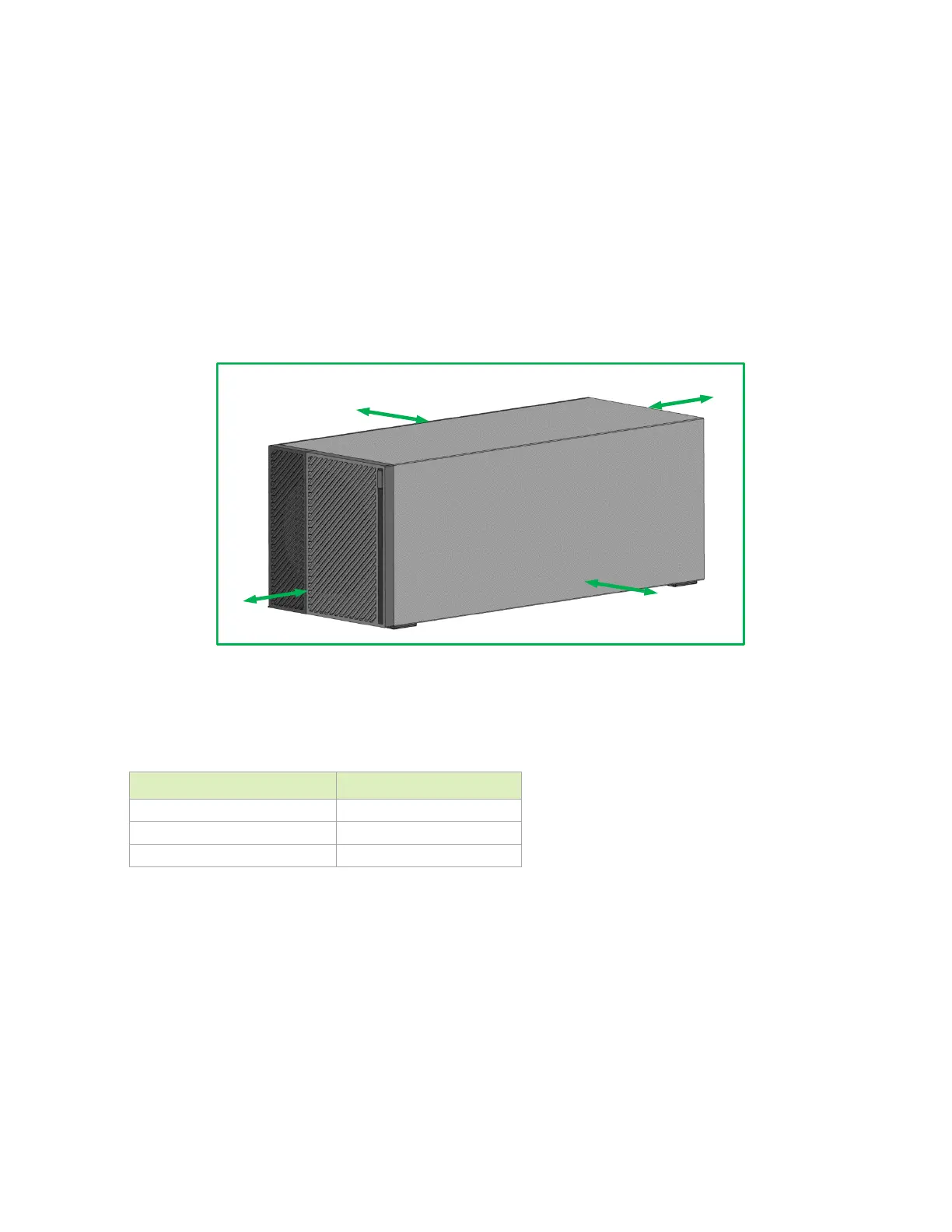

Figure 1-2. Keep-out Clearance Around All Sides
Front
Rear
Side
Side
Table 1-2. Clearance Recommendation
Panel
Clearance (mm)
Front
80
Rear
100
Side
20
The airflow rate required for the developer system is 80 cfm. With proper clearance, the
developer system fans can deliver greater than 80 cfm at max RPM. See Figure 1-3 for the
airflow direction.
The rear panel also needs clearance for air exhaust to come out, plugging/unplugging the
cables as well as accommodating for cable bend radius.
