Nvidia Quadro K5000 User Manual

Quadro K4000/K5000/K6000 SDI DU-05337-002_v01 | 32
Chapter 04 : Linux—Using the Graphics to Video Out Control Panel

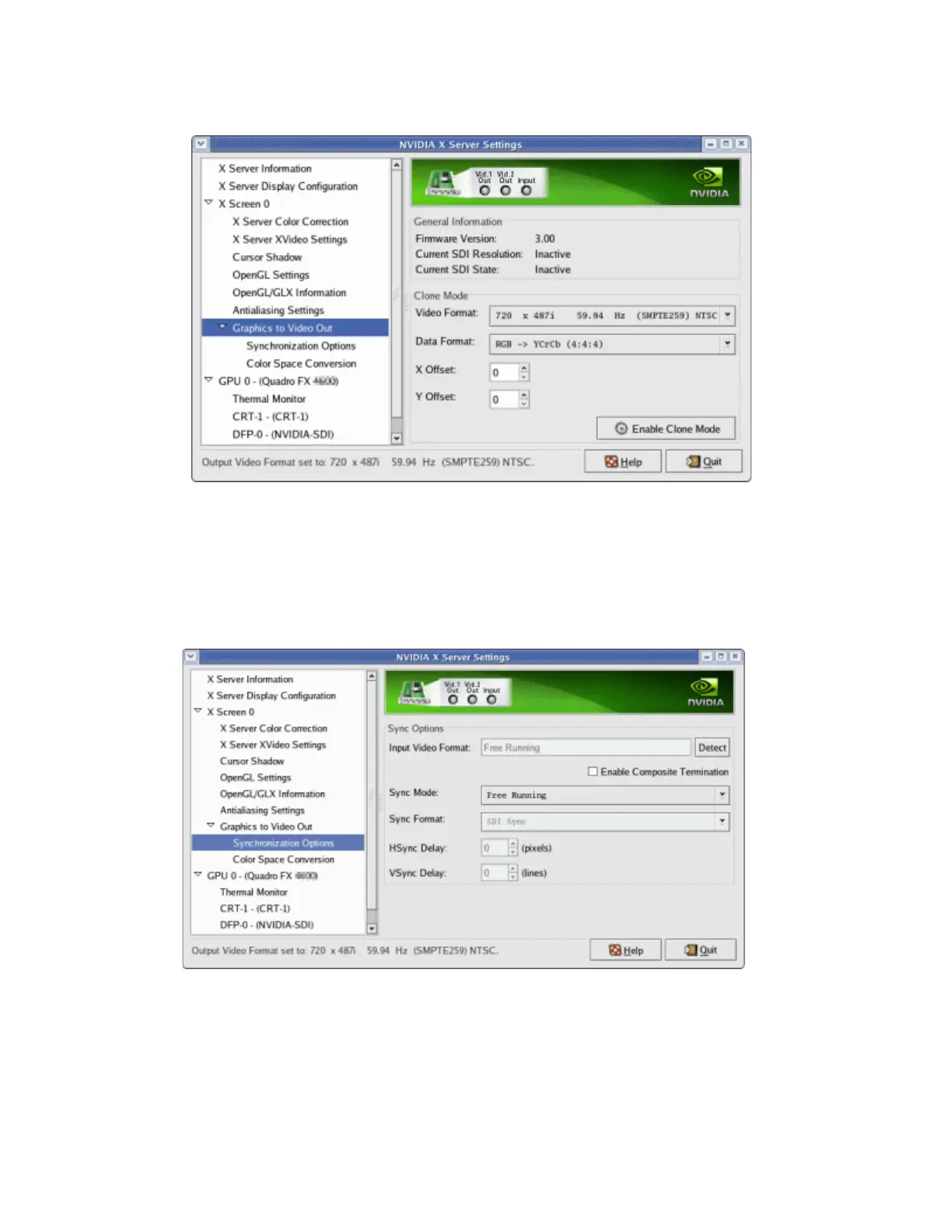

The Graphics to Video Out page appears.
Figure 0.2 Graphics to Video Out Page
Step 2: Choose a Synchronization Method
1 Click the Graphics to Video Out: Synchronization Options tree item from the
side menu.
The Sync Options page appears.
2 From the Sync Options group box, click the Sync Mode list arrow and then click the
method you want to use to synchronize the SDI output:
• Free Running: The SDI output will be synchronized with the timing chosen from
the SDI signal format list.
• Genlock: The SDI output will be synchronized with the external sync signal.

Nvidia Quadro K5000 Specifications

General

CUDA Cores	1536
Memory Size	4 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	173 GB/s
Max Power Consumption	122 W
DirectX	11
OpenGL	4.5
Architecture	Kepler
GPU	GK104
Bus Interface	PCI Express 3.0 x16
Form Factor	Dual Slot
Display Connectors	2x DVI, 2x DisplayPort
Interface	PCIe 3.0 x16
Max Resolution	3840x2160
Outputs	DisplayPort + DVI-I
