DOC-13000 Rev. E 7–25
Connex500/350 User Guide

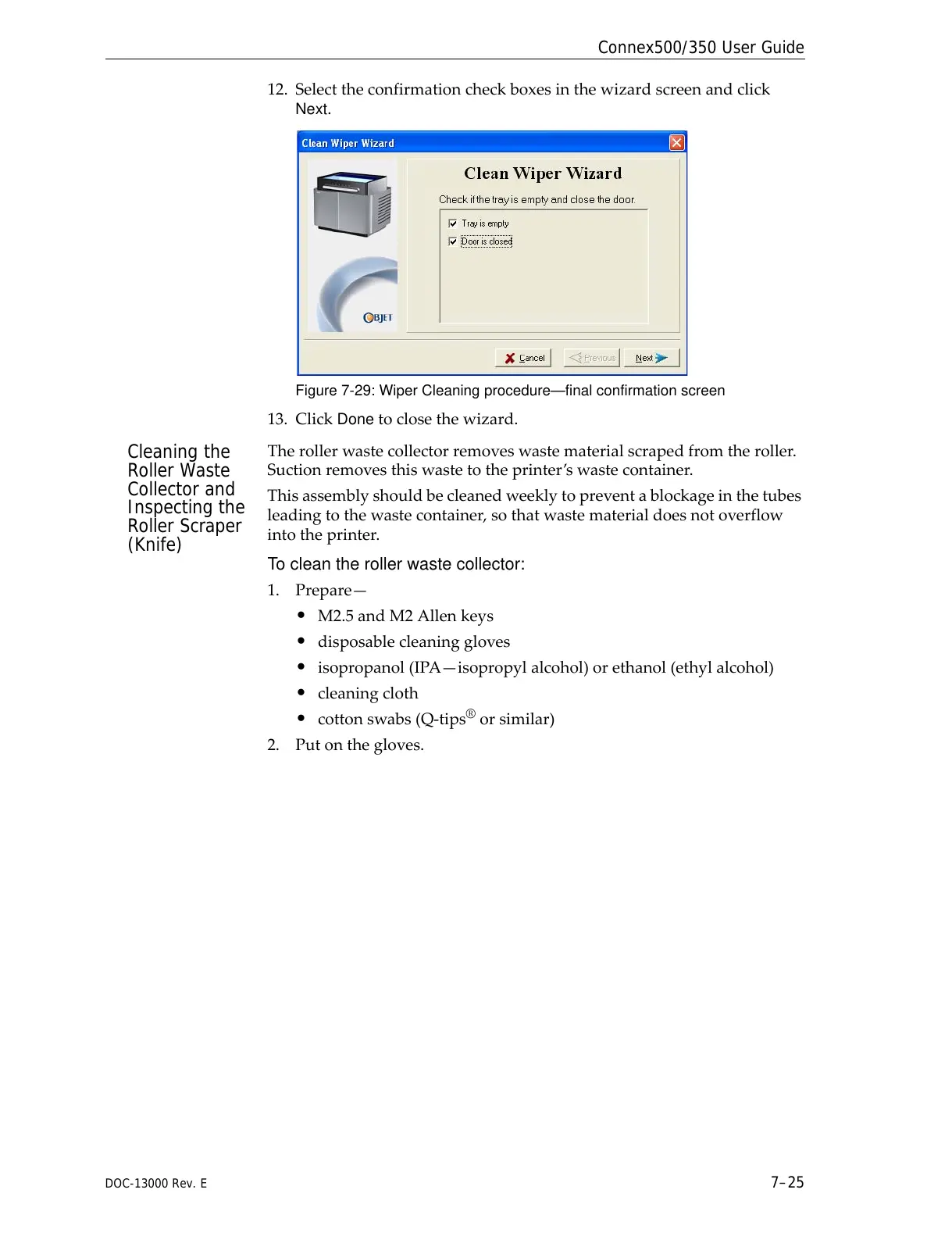

12. Selecttheconfirmationcheckboxesinthewizardscreenandclick
Next.
Figure 7-29: Wiper Cleaning procedure—final confirmation screen
13. ClickDonetoclosethewizard.
Cleaning the
Roller Waste
Collector and
Inspecting the
Roller Scraper
(Knife)
Therollerwastecollectorremoveswastematerialscrapedfromtheroller.
Suctionremovesthiswastetotheprinter’swastecontainer.
Thisassemblyshouldbecleanedweeklytopreventablockageinthetubes
leadingtothewastecontainer,sothatwastematerialdoesnotoverflow
intotheprinter.
To clean the roller waste collector:
1. Prepare—
• M2.5andM2Allenkeys
• disposablecleaninggloves
• isopropanol(IPA—isopropylalcohol)orethanol(ethylalcohol)
• cleaningcloth
• cottonswabs(Q‐tips
®
orsimilar)
2. Putonthegloves.
