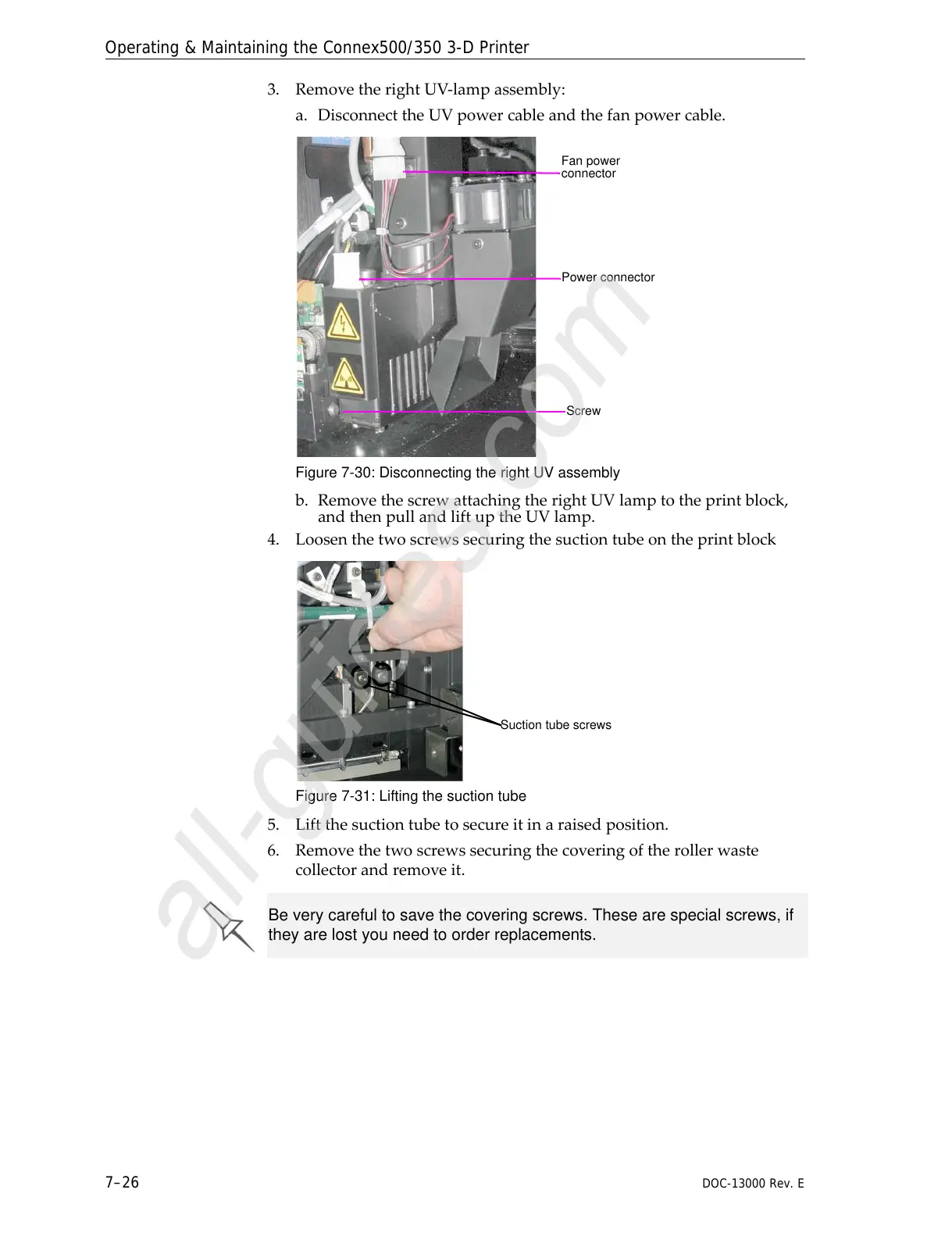

Operating & Maintaining the Connex500/350 3-D Printer
7–26
DOC-13000 Rev. E
3. RemovetherightUV‐lampassembly:
a. DisconnecttheUVpowercableandthefanpowercable.
Figure 7-30: Disconnecting the right UV assembly
b. RemovethescrewattachingtherightUVlamptotheprintblock,
andthenpullandliftuptheUVlamp.
4. Loosenthetwoscrewssecuringthesuctiontubeontheprintblock
Figure 7-31: Lifting the suction tube
5. Liftthesuctiontubetosecureitinaraisedposition.
6. Removethetwoscrewssecuringthecoveringoftherollerwaste
collectorandremoveit.
Be very careful to save the covering screws. These are special screws, if
they are lost you need to order replacements.
