Operating & Maintaining the Connex500/350 3-D Printer
7–54 DOC-13000 Rev. E

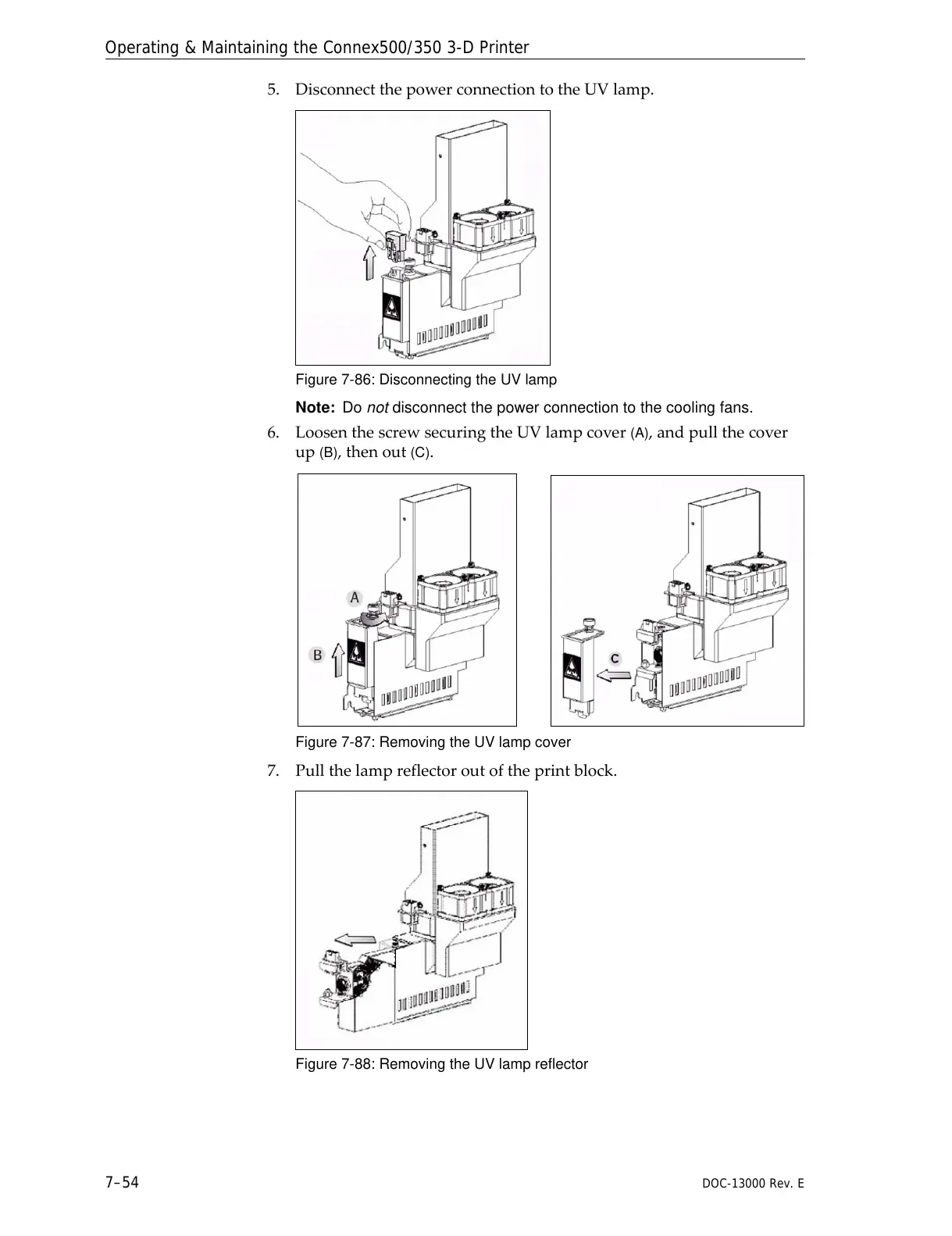

5. DisconnectthepowerconnectiontotheUVlamp.
Figure 7-86: Disconnecting the UV lamp
Note: Do not disconnect the power connection to the cooling fans.
6. LoosenthescrewsecuringtheUVlampcover(A),andpullthecover
up
(B),thenout(C).
Figure 7-87: Removing the UV lamp cover
7. Pullthelampreflectoroutoftheprintblock.
Figure 7-88: Removing the UV lamp reflector
