Page 68
Instruction Manual Easygraph
• Example: 3-curve lens
b1 = constant b1=0.40
r1=r0*A+B A=1.20 B=0.00
dr1 = constant
dr1=0
b2 = constant b2=0.40
r2=r0*A+B A=1.50 B=0.00
dr2 = constant
dr2=0
• Example: Toric lens with bevel
b1 = constant b1=0.25
r1=r0*A+B A=1.50 B=0.00
dr1=dr0*r1/r0
b2 = constant b2=0.00
r2=r0*A+B A=1.50 B=0.00
dr2 = constant
dr2=0
If the [Generate new lenses] button is clicked, the
previously defined series of contact lens data is
created and the function is ended.
More than one series can be created for a single lens
type.
[Quit] cancels the function without creating a series.
7.5.4.3.2 Creating Soft Lens Geometries

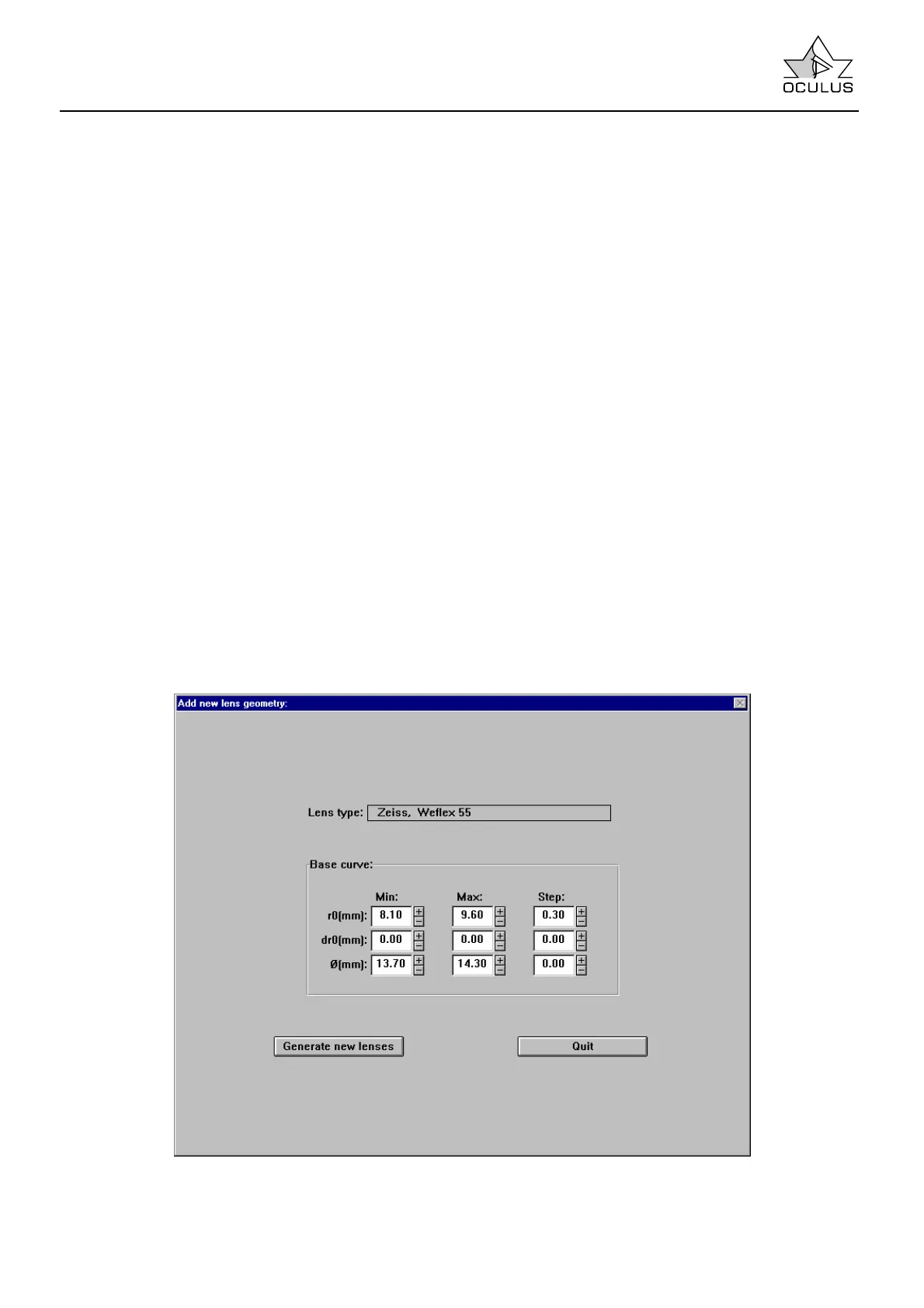

Clicking the [Add soft lenses] button (cf. 7.5.4.3
page 65) causes the following display to appear:
The generation of soft lens geometries corresponds
to that of rigid geometric data, except that fewer
parameters must be given.
