10 Measuring Procedure
16 / 29 Instruction Manual Pentacam® / Pentacam HR® (G/70700/0109/en)

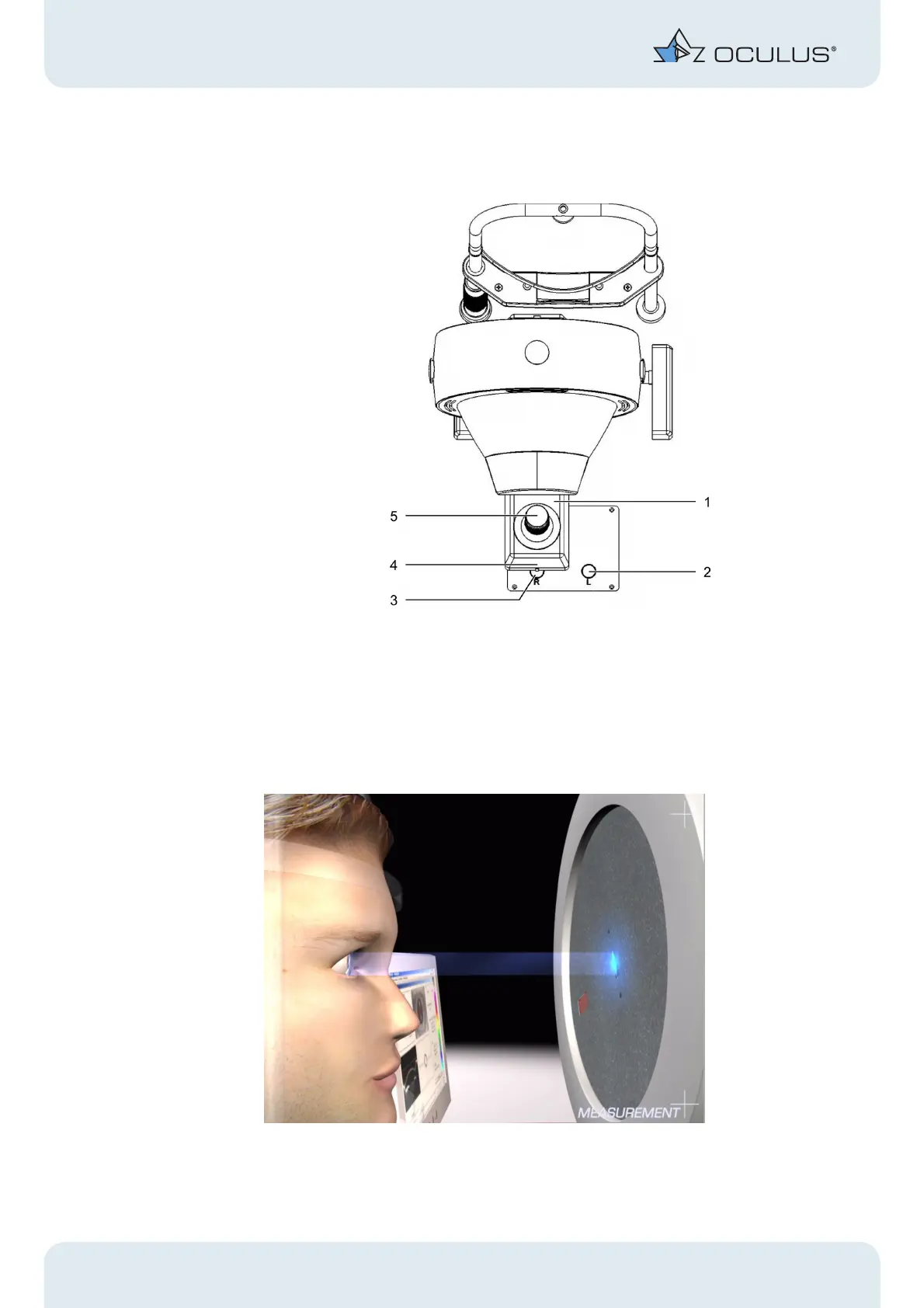

Î Example of a rough adjustment for the right eye: Move the cross slide (1) until the
marking at the end of the cross slide (4) roughly coincides with the circle R (3) on
the sliding plate.
Fig. 10-2: Markings on the cross slide
Î Look at the patient’s eye you are examining from one side and make sure that the
blue slit light illuminates the cornea.
Î If necessary, adjust the position of the cross slide to the left or right.
Fig. 10-3: Slit light on the cornea
1 Cross slide 4 Marking on the cross slide
2 Left marking 5 Joystick
3 Right marking
