10 Measuring Procedure
Instruction Manual Pentacam® / Pentacam HR® (G/70700/0109/en) 17 / 29
☞
Note
If the blue slit light is not visible, ensure that you have activated the [Slit Light] checkbox
on the "Scan" screen.
Darkening the room / dark sheet
Î If the lighting in the examination room has not been turned down or switched off,
use the dark sheet supplied to cover the patient and the Pentacam.
Adjustment
Î Move the cross slide towards the patient until the Scheimpflug image shows the
cornea of the eye that you are examining.

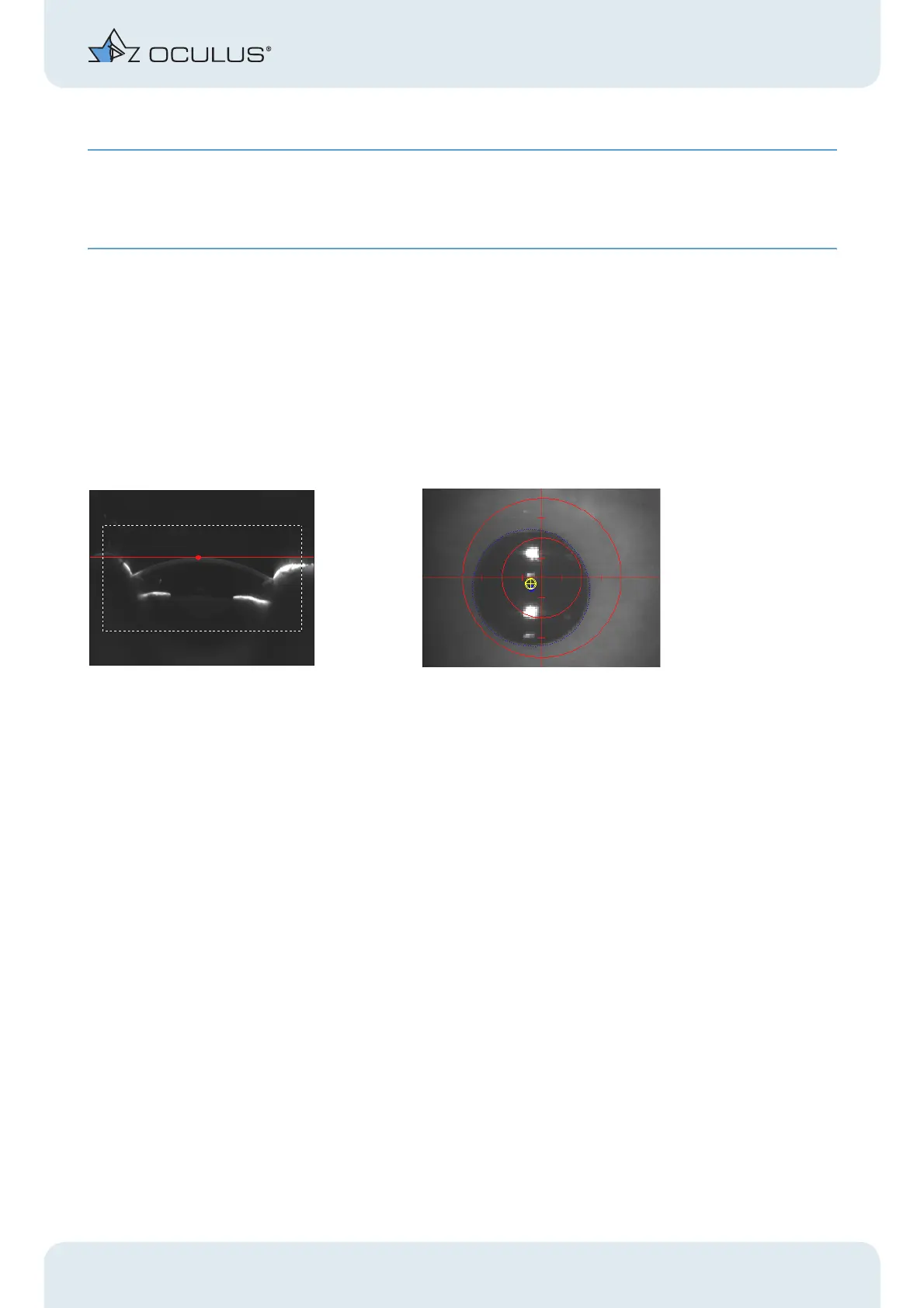

Fig. 10-4: Scheimpflug image (left) and pupil image (right)
The image is sharpest when the red dot coincides with the red line in the Sche-
impflug image.
Î Focus the pupil image by moving the joystick towards the Pentacam or away from it.
Î Adjust the left/right position of the Pentacam and its height setting.
Move the joystick to the left or right and rotate the joystick clockwise or anticlock-
wise.
The tentative final position of the camera is reached when the yellow dot is in the
centre of the crosshairs.
Î Ask the patient to widen his or her eye.
Fine adjustment
Î Make any fine adjustments required based on the information in the adjustment
window. To do so, move the joystick in the specified directions.
Example: Move the joystick to the right and forwards (towards the patient) and also
anticlockwise.

OCULUS Pentacam Specifications

General

Measurement Time	Less than 2 seconds
Corneal Coverage	Up to 12 mm
Software	Pentacam Software
Data Transfer	USB
Corneal Topography	Yes
Display	External monitor required
Measurement Principle	Scheimpflug imaging
Camera	Rotating Scheimpflug camera
Light Source	Blue LED
Pachymetry	Yes
Anterior Chamber Analysis	Yes
Imaging Principle	Scheimpflug imaging
Fixation	Internal
Power Supply	100-240 V, 50/60 Hz
Resolution	High resolution
Lens Density Measurement	Yes
Dimensions	Varies depending on model and configuration
Weight	Varies by model, check manufacturer specifications
Number of Images	25 or 50
