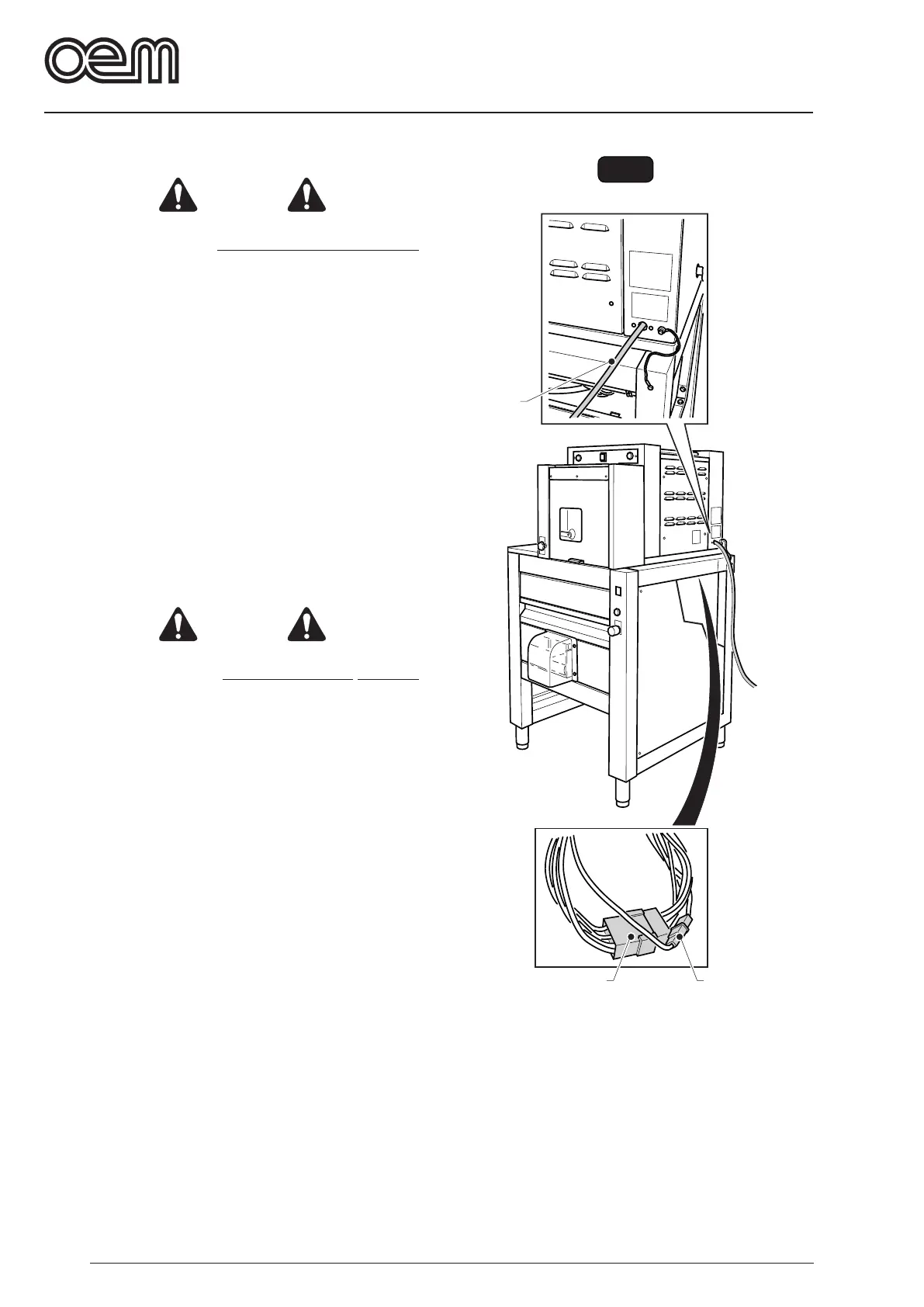

3.3 - ELECTRICAL CONNECTION (Fig. 6)
DANGER
• The power feed line should be provided with a
suitable omnipolar DISCONNECTING SWITCH
(magnetothermic circuit-breaker and residual current
device) placed before the control unit main switch,
with a minimum contact opening of 3 mm.
• THE LINE DISCONNECTING SWITCH must be
located near the machine so the operator can see
it at any moment while working on the machine or
performing maintenance or cleaning operations.
• The earthing system should comply with the local
electric regulations in force.
• The electric power cables should comply with
the maximum current required by the machine,
so that the total voltage drop at full charge will
be less than 2%.
• The specifications of the electric power line
should correspond to the specications of the
identication plate and to those mentioned in
the technical specications table that can be
consulted in the rst part of this booklet.
DANGER
Before connecting the machine with the electric
line, make sure that the DISCONNECTING SWITCH
is disconnected (line not energized), therefore:
• Connect the two connectors (1) and the ground con-
nector (2) connecting the two machines.
• Connect the power cable (3) of the machine with the
disconnecting switch placed above.
