1.4. Mainboard

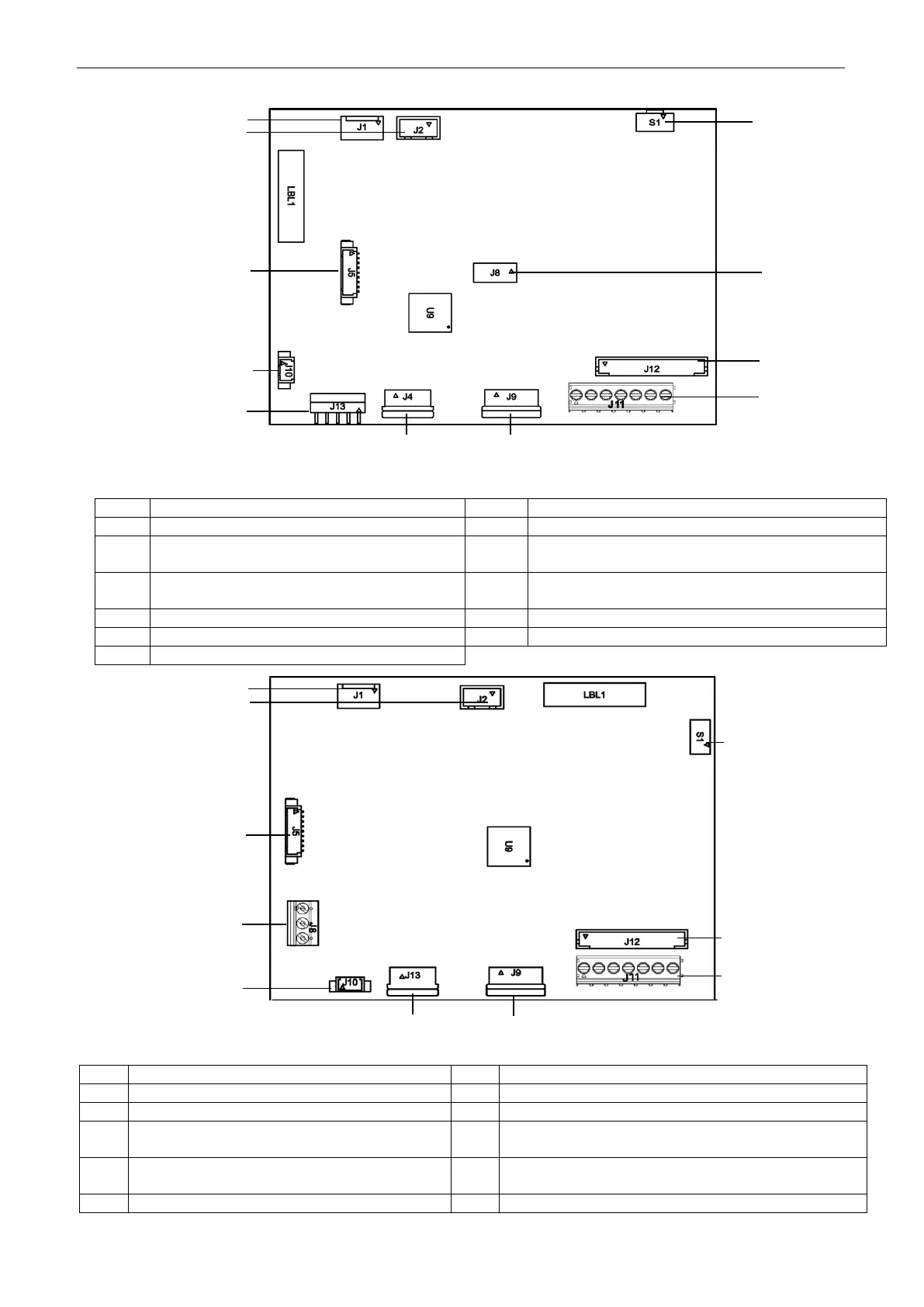

Figure 1-3 i-DT33P Mainboard
Item
Description
Item
Description
1
DC input (J1)
7
Display board connector (J9)
2
Dry cell input (J2)
8
Load cell terminal block (J11)
(for models not supporting EasyConnect
TM
)
3
Ethernet kit / USB device kit connector (J5)
9
Load cell connector (J12)
(for models supporting EasyConnect
TM
)
4
Backlight connector (J10)
10
Lead-acid battery charge board kit connector (J8)
5
RS232 connector (J13)
11
Security switch connector (S1)
6
Keyboard connector (J4)
Figure 1-4 i-DT33XW Mainboard
Note: Mainboard may vary slightly for different regions.
Item
Description
Item
Description
1
DC input (J1)
6
Keyboard connector (J13)
2
Lead-acid battery input (J2)
7
Display board connector (J9)
3
Ethernet kit / USB device kit connector (J5)
8
Load cell terminal block (J11)
(for models not supporting EasyConnect
TM
)
4
RS232 connector (J8)
9
Load cell connector (J12)
(for models supporting EasyConnect
TM
)
5
Backlight connector(J10)
10
Security switch connector (S1)
