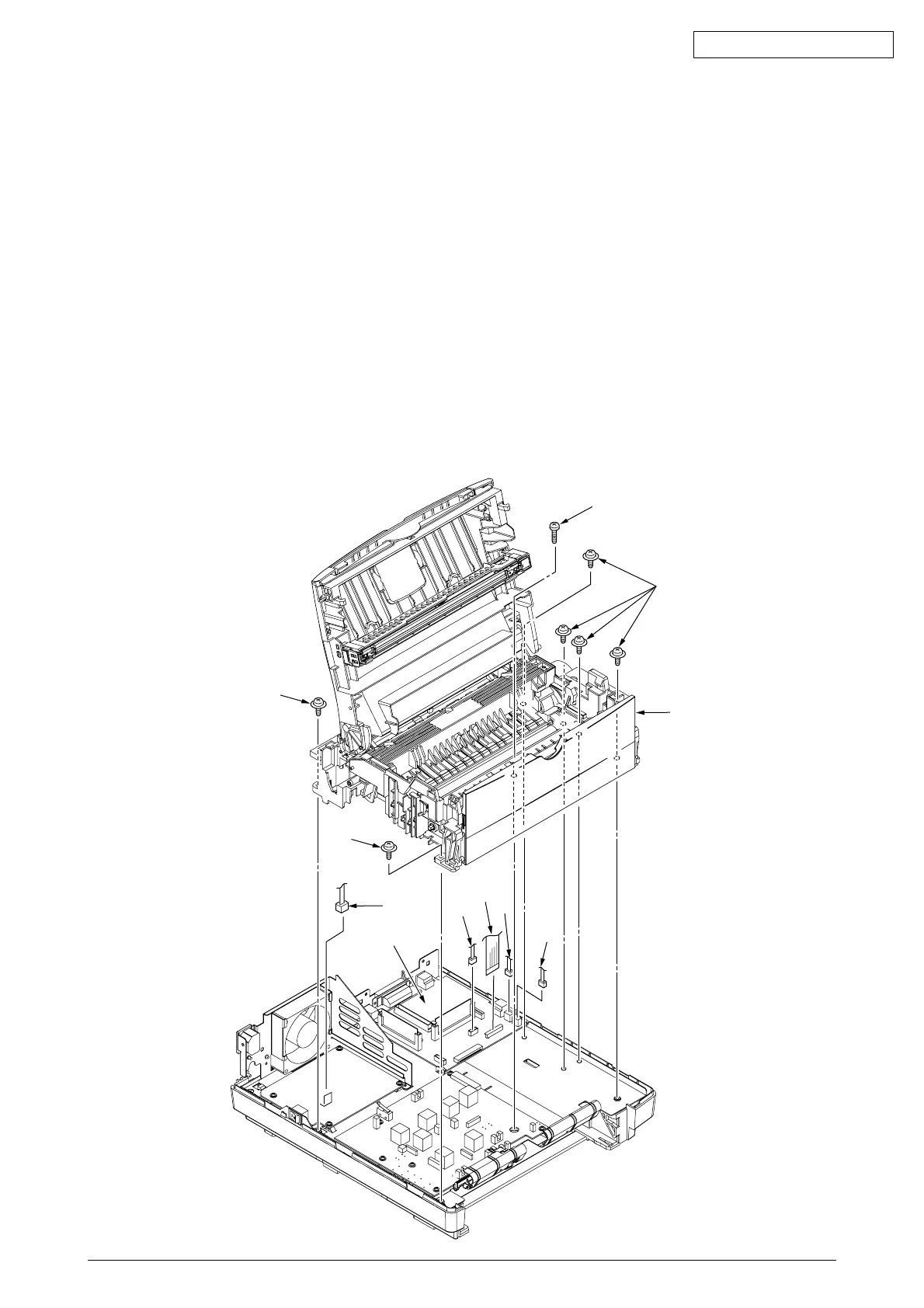

2.3.4 Lower Base Unit
(1) Remove the upper cover assy (see 2.3.1).
(2) Remove the operator panel assy (see 2.3.3).
(3) Remove the face up stacker assy (see 2.3.7).
(4) Remove the transfer roller assy (see 2.3.13).
(5) Remove the connecting cables 1 and 2 of the pulse motors from the connectors (DM, RM) of the
GRG-PCB 3.
(6) Remove the LED head cables 4 from the connector (HEAD).
(7) Remove the Thermistor cable 5 from the connector (THERM).
(8) Remove the connecting cable 6 of the heater from the connector (CN2).
(9) Open the manual feed guide assy, remove seven screws 7, then remove the lower base unit 8.
8
2
7
7
1
4
5
6
7
7
3
