2.3.10 Hopping Roller Shaft Assy
(1) Remove the upper cover (see 2.3.1).
(2) Remove the operator panel assy (see 2.3.3).
(3) Remove the face up stacker assy (see 2.3.7).
(4) Remove the lower base unit (see 2.3.4).
(5) Remove the motor assy (see 2.3.9).

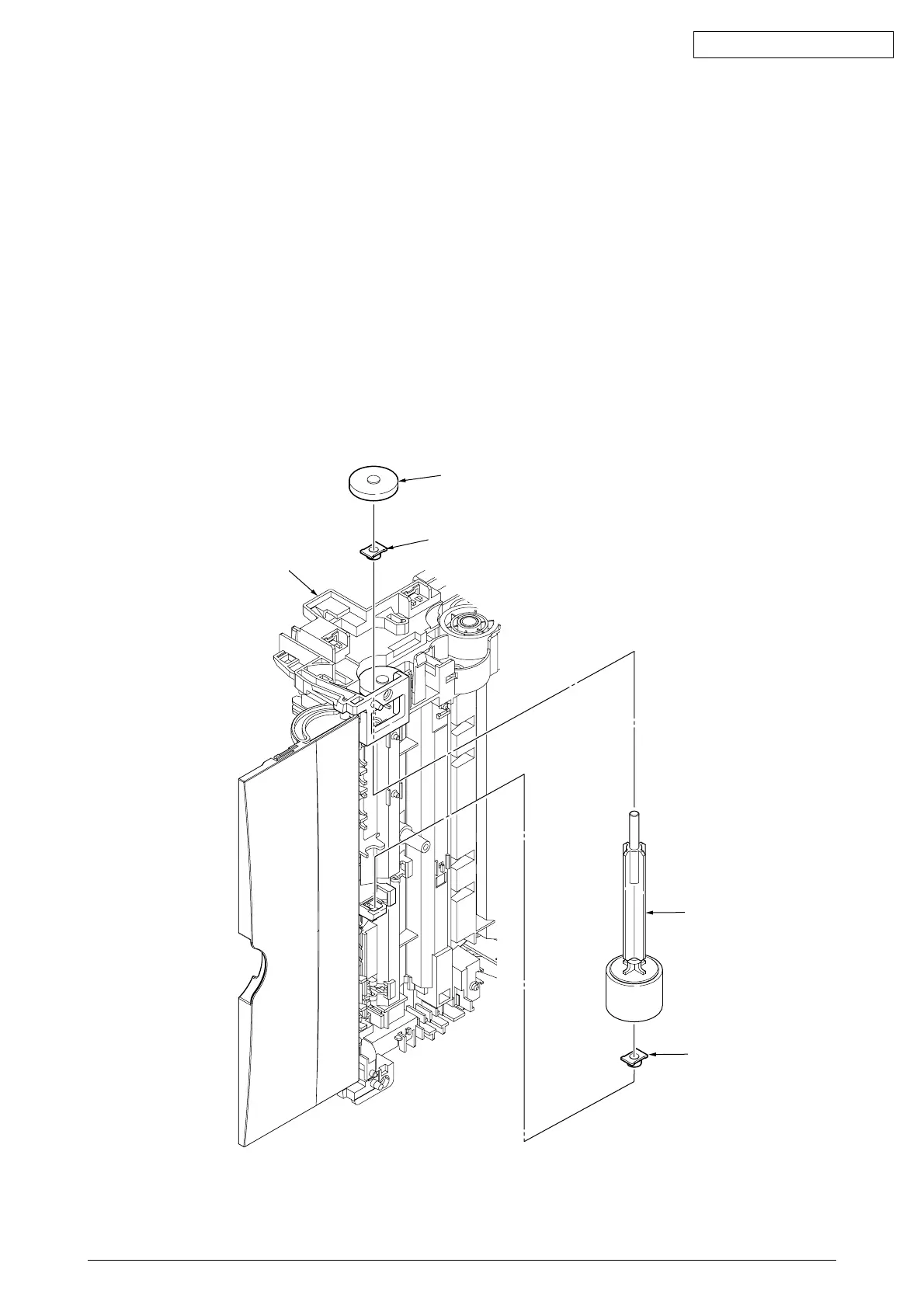

(6) With the lower base unit 1 standing on its side, remove the one-way clutch gear 2 and the bearing
(A) 3.
(7) Remove the hopping roller shaft assy 4 (the bearing (B) 5 comes off, so be careful not to lose it).
2
3
1
4
5
