2.3.22 Cassette Guide L Assy
(1) Remove the paper cassette.
(2) Remove the upper cover assy (see 2.3.1).
(3) Remove the lower base unit (see 2.3.4).
(4) Remove two screws 1, and remove the beam plates 2.

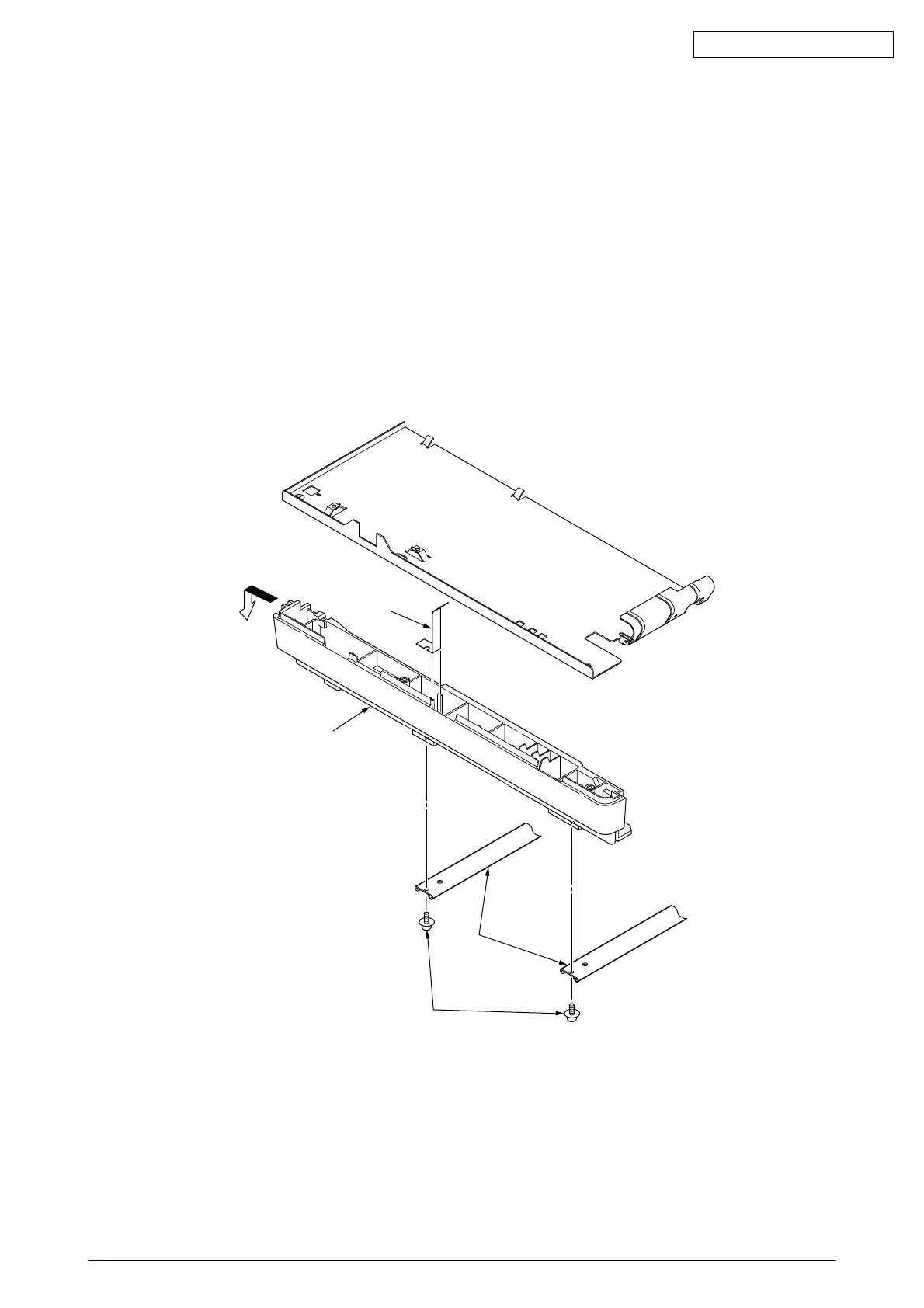

(5) Remove the cassette guide L Assy 3 by shifting it in the direction of the arrow as shown below.
(6) Remove the earth plate 4.
2
1
3
4
