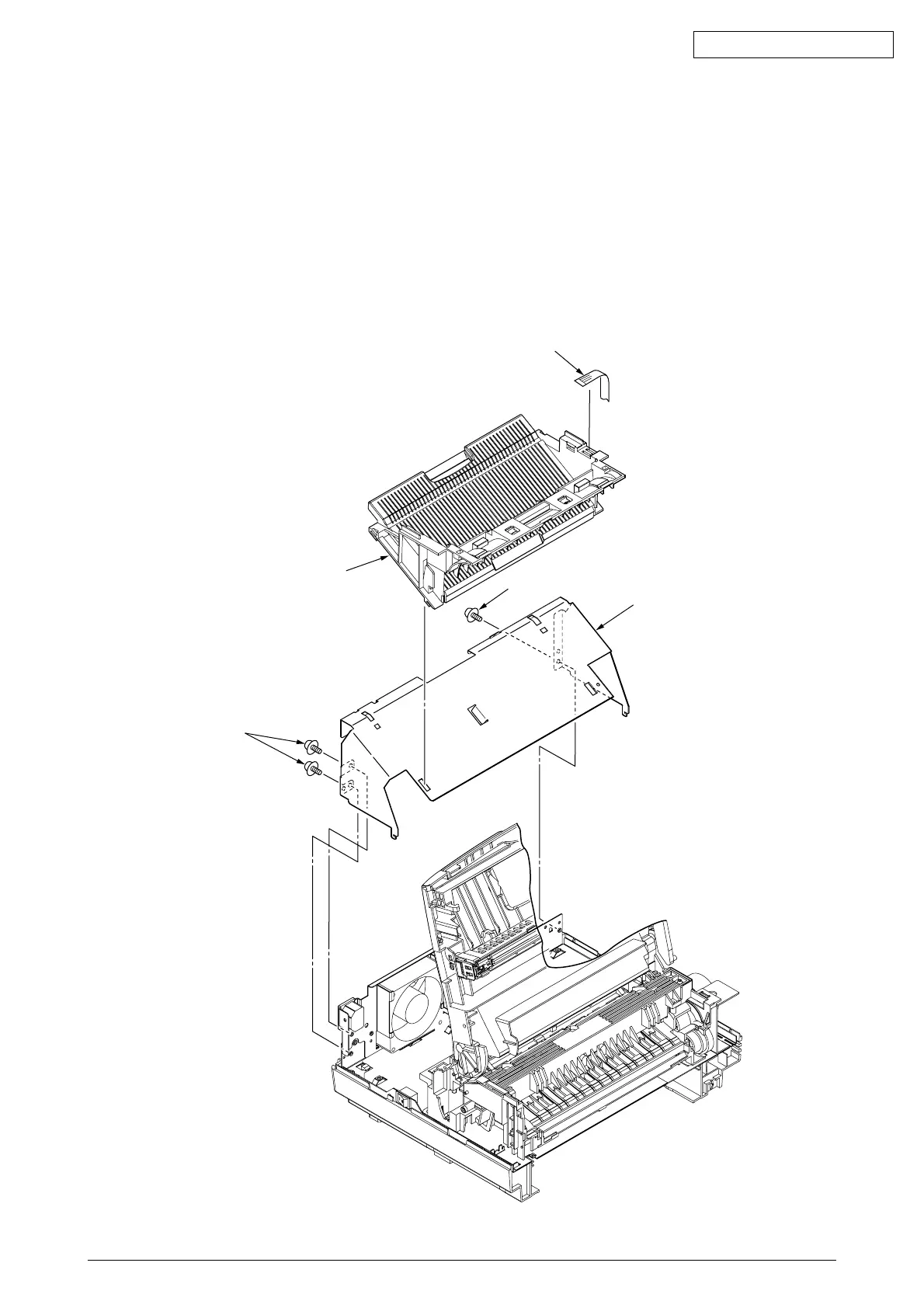

2.3.7 Face Up Stacker Assy
(1) Remove the upper cover assy (see 2.3.1).
(2) Remove the operator panel assy (see 2.3.3).
(3) Remove the Sumi card (Operator panel cable) 1 off the latch section of face up stacker 2 .
(4) Remove three screws 3 and remove both the shield plate 4 and face up stacker 2 together.
(5) Unlock the latches at two locations, and remove the face up stacker 2.
3
4
1
2
3
