42640901TH Rev.1 30 /
Oki Data CONFIDENTIAL

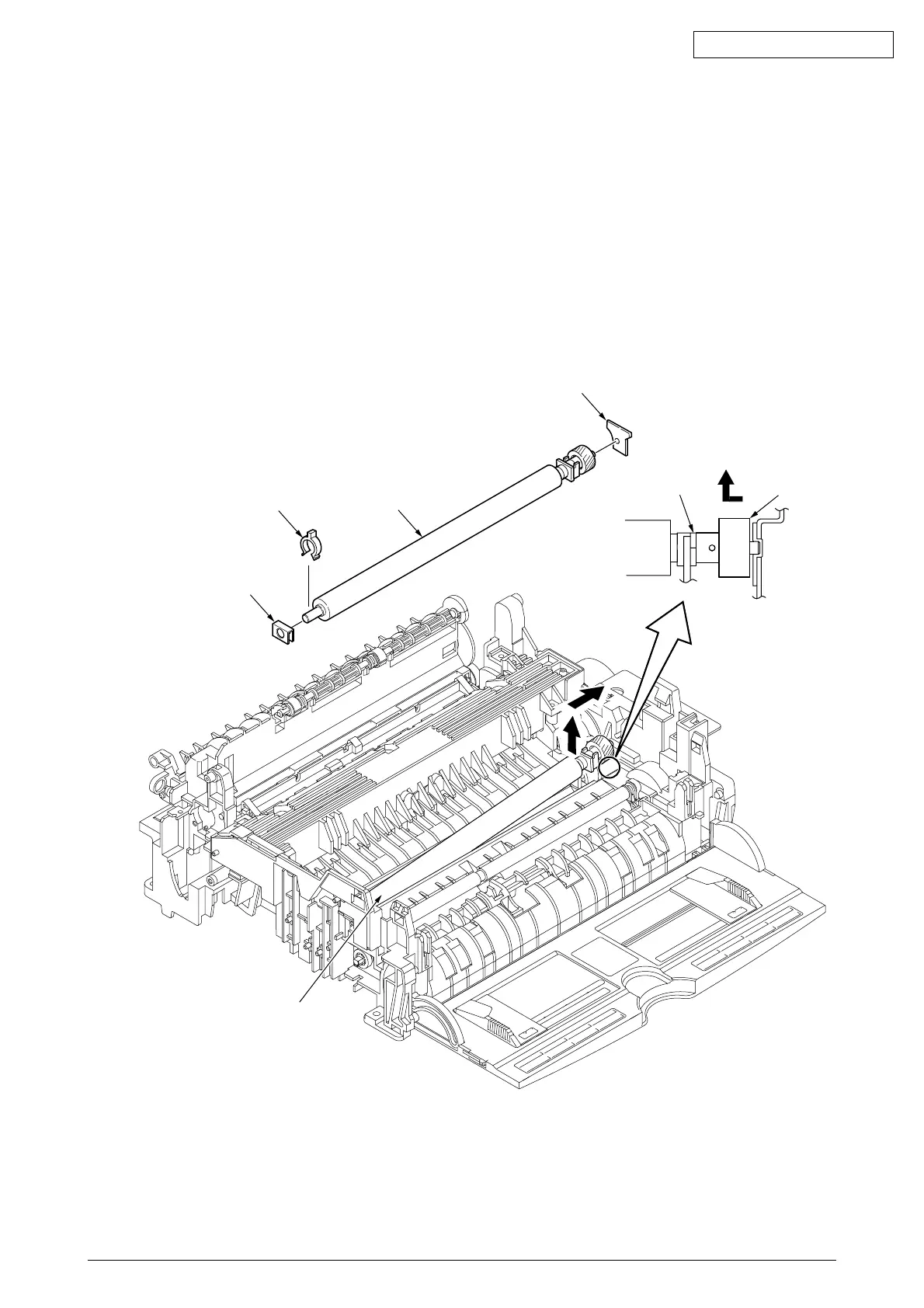

2.3.13 Roller Transfer Assy
(1) With the power switch turned off, unplug the AC cord from the outlet.
(2) Open the stacker cover.
(4) Remove the spacer 1.
(4) Release the roller transfer assy 2 by unlocking two latches of the bearing TR (never apply excessive
force when unlocking the latch) and slide the roller transfer assy left to remove the gear from the
bracket.
(5) Lift the right side of the roller transfer assy 2, and shift it to the right side, then pull it out from the
main unit (at this time, the bearings 3 of the left side and holder-TR 4 of the right side of the roller
transfer assy 2 will also come off).
1
1
2
1
3
4
Latches
To Next Page
