3.3 Parts Replacement Methods

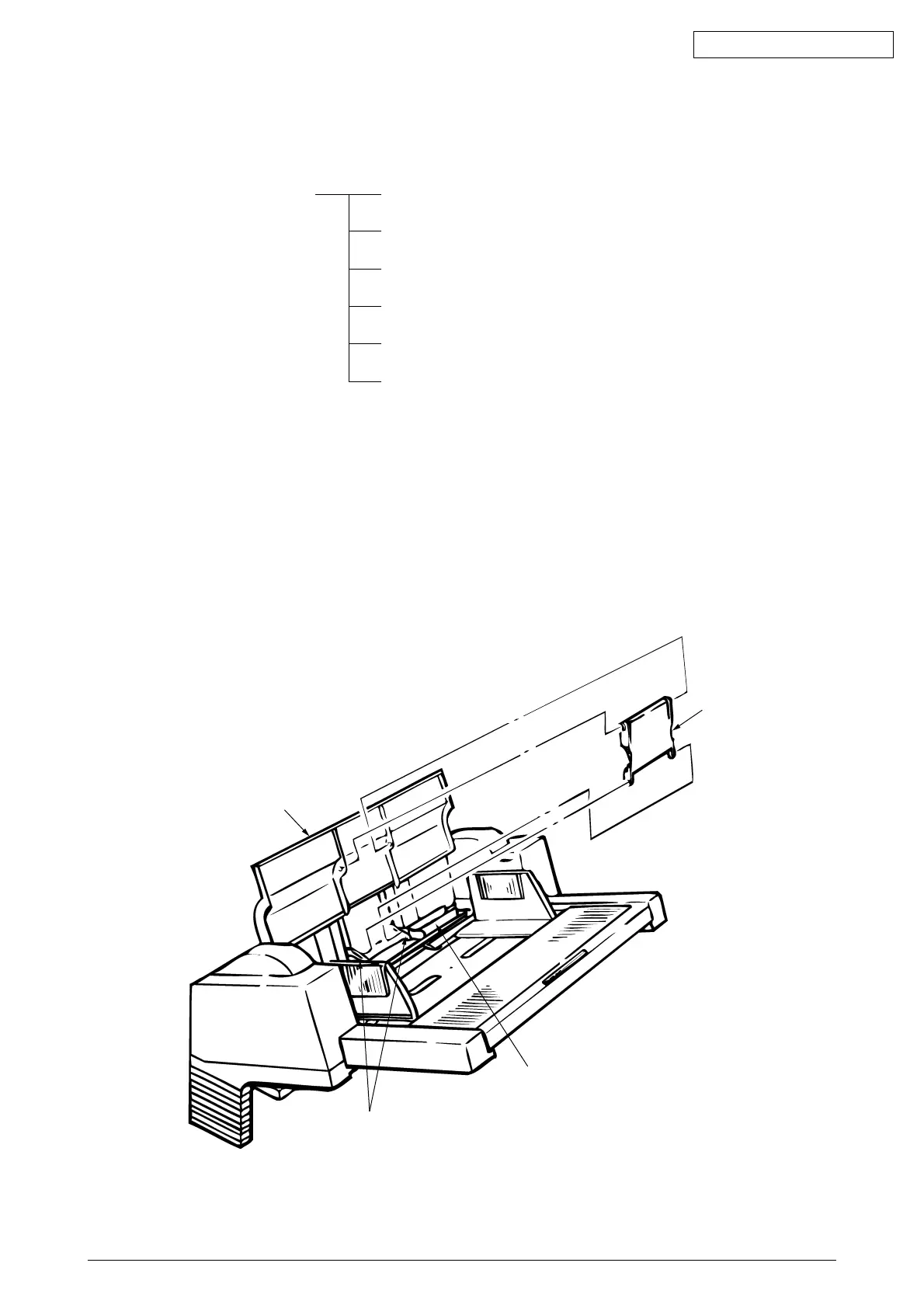

This section describes the parts replacement methods for the components listed in the disassembly
order diagram below.
Multi-Purpose Feeder Link (3.3.1)
Separator (3.3.2)
OLEV-11-PCB (3.3.3)
Pulse motor (3.3.4)
Planet gear (3.3.5)
Roller-A (3.3.6)
3.3.1 Link
(1) Open paper feed cover 1, and disengage the paper feed cover 1 and link 3, while lifting the paper
hold 2.
(2) Remove the paper hold 2 off the arm 4.
(3) Disengage the link 3 from the arm 4, and remove it.
* Be careful not to deform the link and arm.
1
3
2
4
