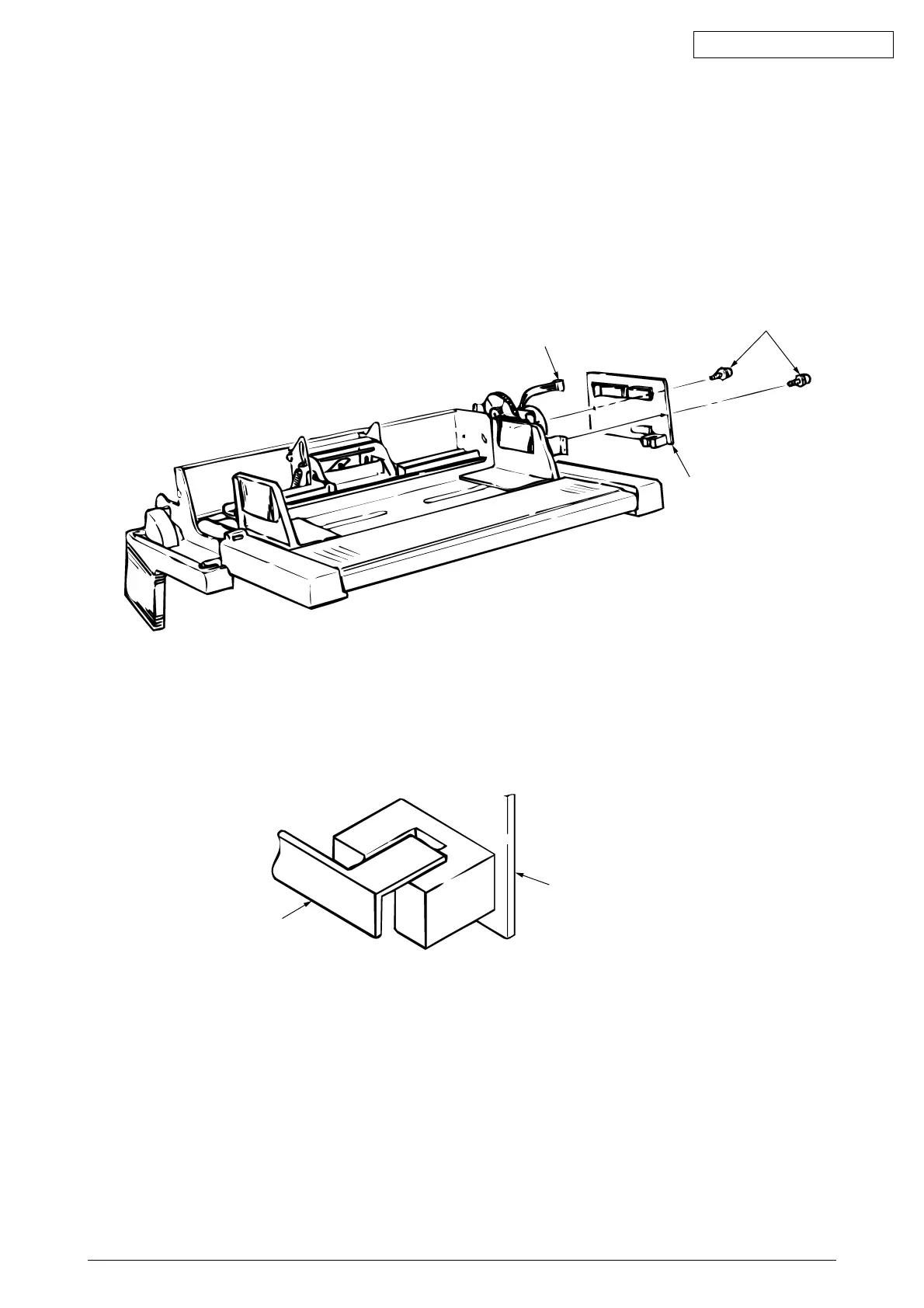

3.3.3 OLEV-11-PCB
(1) Remove the upper frame [ see 3.3.2 steps (1) through (3) ].
(2) Remove the connector 1.
(3) Remove 2 screws 2, and remove the OLEV-11 PCB 3.
When reinstalling the printed circuit board, be careful to make sure that the sensor plate is being set
correctly.
1
2
3
3
Sensor Plate
