4. REPLACEMENT OF PARTS
4.2.23 Paper feed rollers (tray 2/3 (option))
Note! Be sure to replace all of the three paper feed rollers.

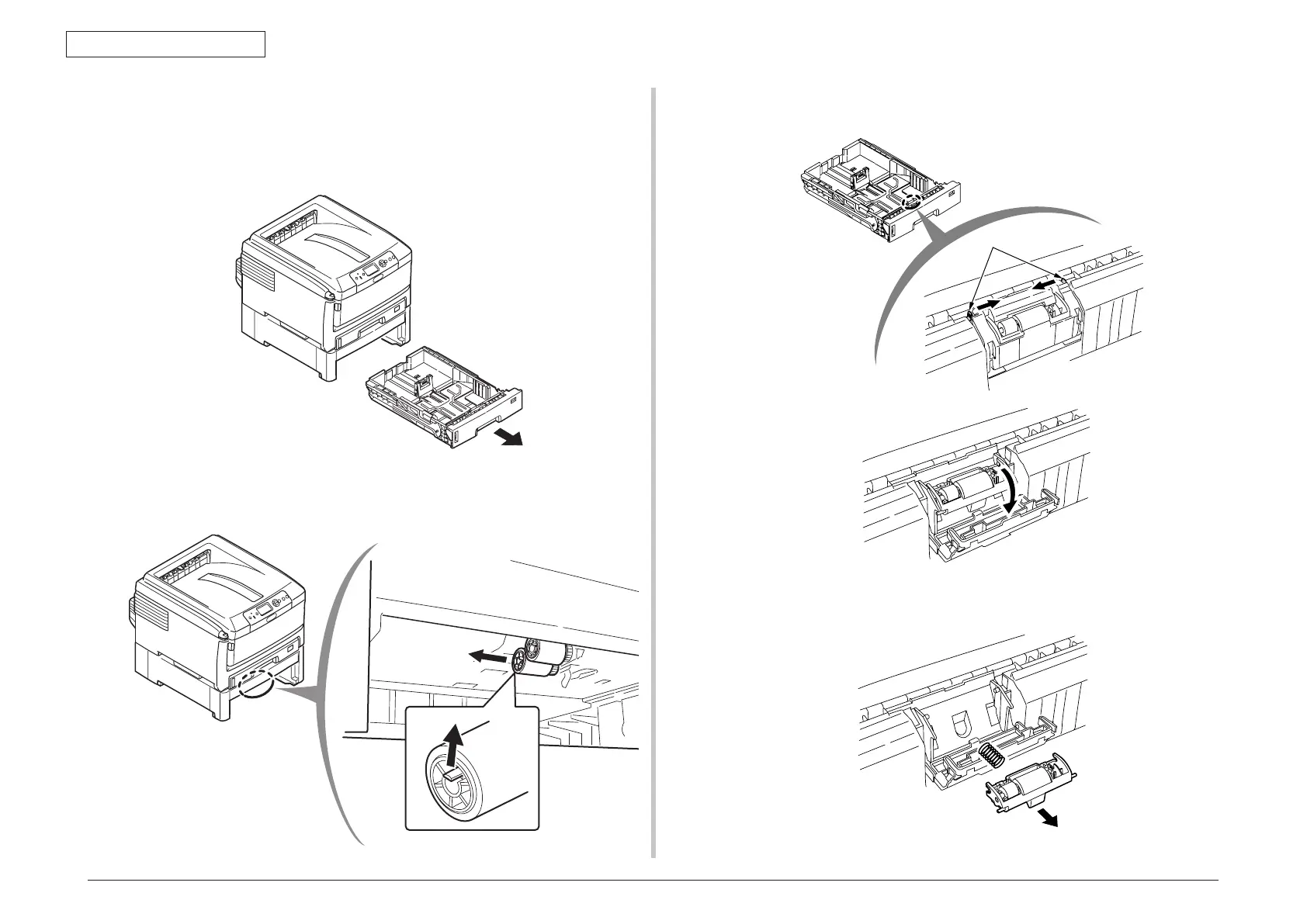

(1) Turn off the printer and remove the paper cassette of the tray 2/3.
(2) Pressing the protrusions of the two paper feed rollers outward, detach them from
their shafts.
(3) Warp the protrusion on each side of the cover on the paper cassette to unlatch the
cover and, turning the cover toward the front of the printer, remove the cover.
(4) Pull the retard roller Assy. in the direction of the arrow out of its shaft.
