3. INSTALLATION

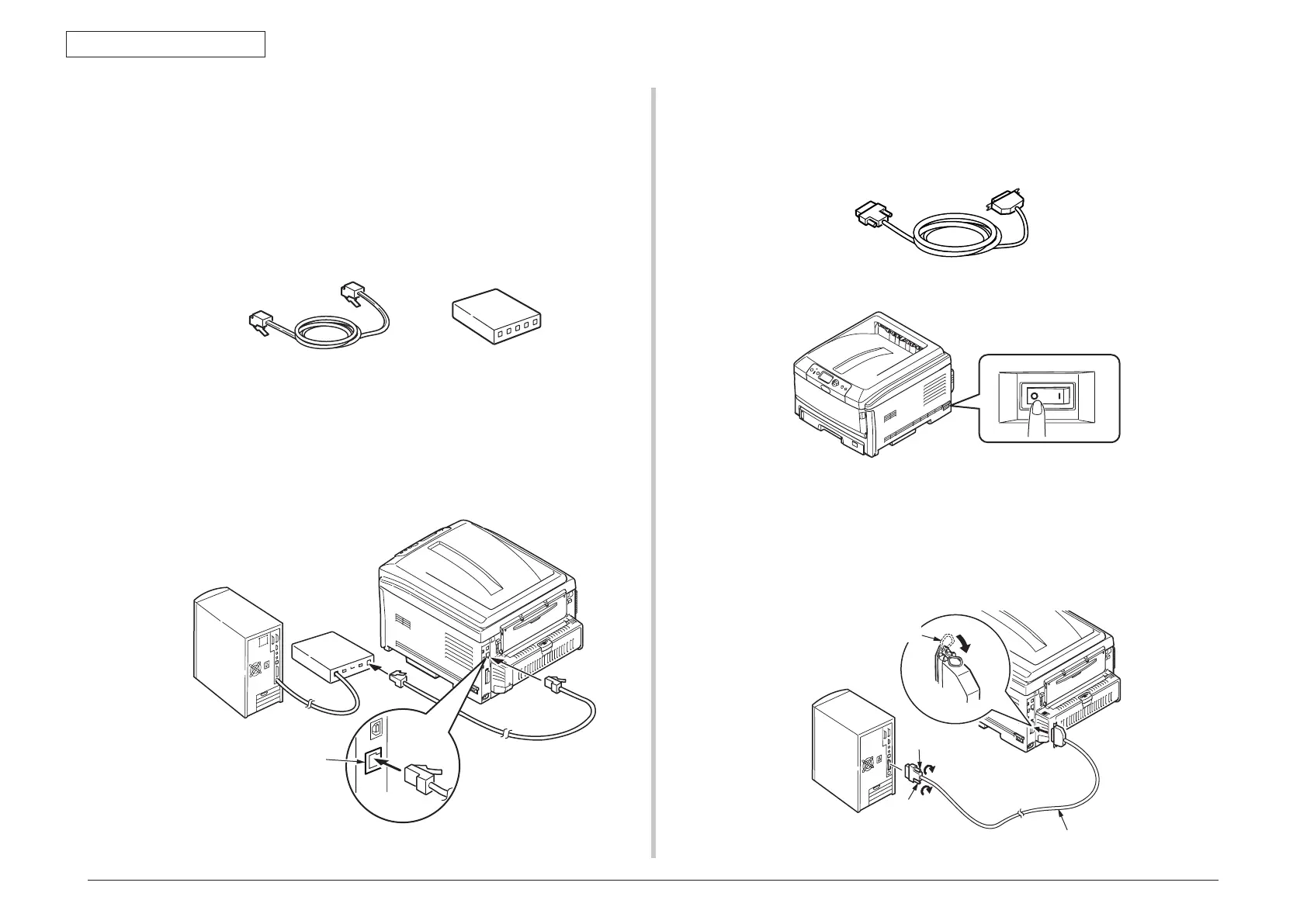

<Ethernet cable connection>
Note! Refer to the user’s manual for operating environment.
Preparing an Ethernet cable
Note! An Ethernet cable and a hub do not come with the printer. Ask the user to
prepare an Ethernet cable (a Category 5 twisted pair cable, straight through)
and a hub.
Memo F
or the setup procedure of the printer driver, see the user’s manual.
Network interface connector
Switching off the printer and the computer
Connecting the computer to the printer
(1) Plug the Ethernet cable into the network interface connector of the printer.
(2) Plug the Ethernet cable into the hub.
<Parallel connection>
Preparing a parallel cable
Note! A parallel cable does not come with the printer. Ask the user to prepare a
parallel cable.
Turning off the printer and the computer.
Connecting the computer to the printer
(1) Connect a parallel cable to the parallel interface connector of the printer and lock
the cable with the metal fitting.
(2) Connect the parallel cable to the parallel interface connector of the computer and
tighten the cable clamp screws.
Parallel cable
Screw
Screw
Metal fitting
