4. REPLACEMENT OF PARTS
4.2.6 LED Assy.
(1) Open the top cover.

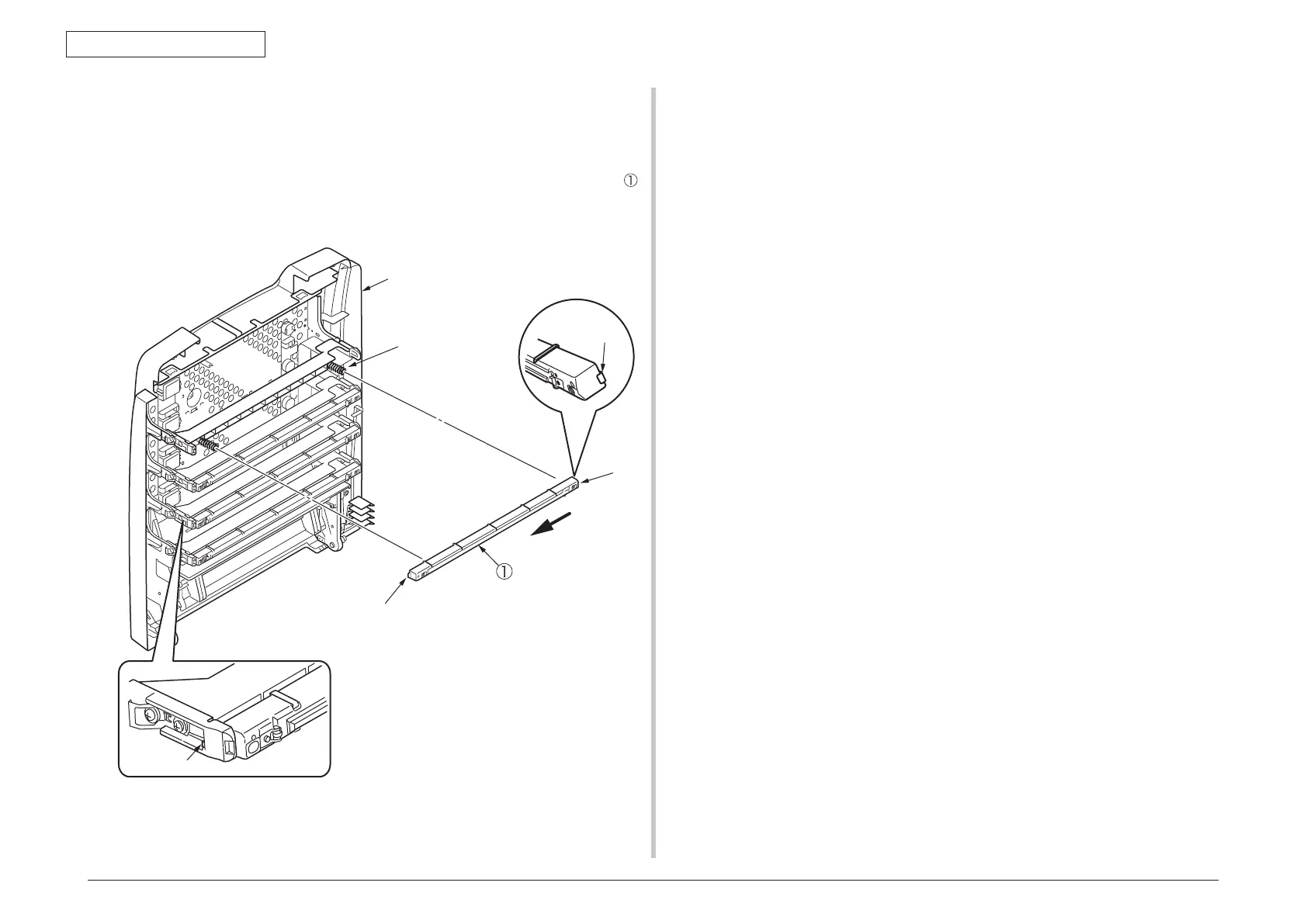

(2) Remove the FFC cables. As shown in diagram (1), applying force in the direction of
the arrow, unlatch the portion A, and then the portion B, to detach the LED Assy.
.
Top cover
Latch A
Latch A
Diagram (1)
Latch B
Latch B
FFC
