4. REPLACEMENT OF PARTS
4.2.4 Right side cover

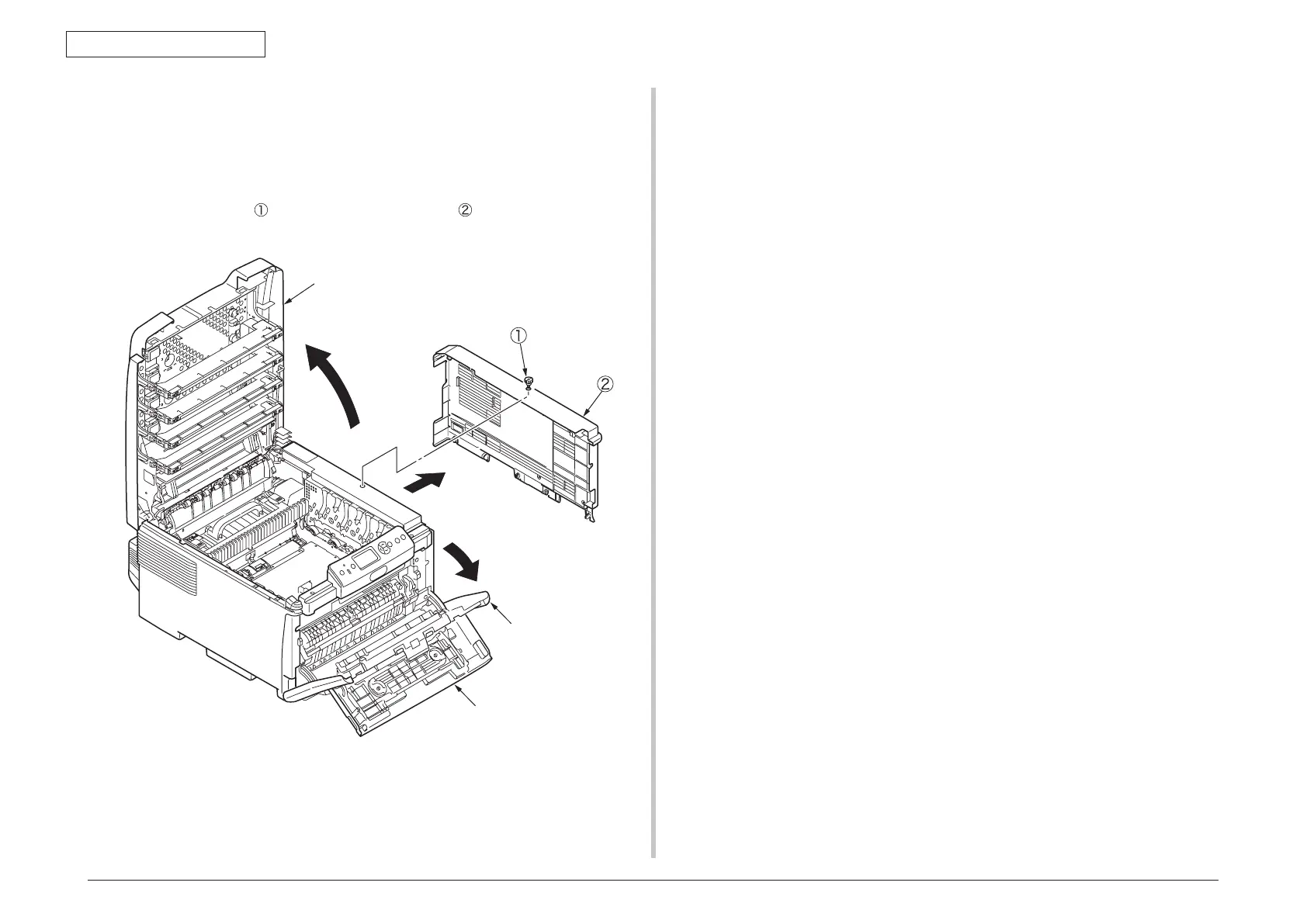

(1) Open the top cover.
(2) Open the multi-purpose tray.
(3) Open the front cover.
(4) Loosen the screw
and detach the right side cover (tool number 1).
Top cover
Front cover
(loosened)
Multi-purpose Tray
