44015503TH Rev. 1
15 /
Oki Data CONFIDENTIAL
1. CONFIGURATION
1.5.2 Network interface specifications
1.5.2.1 Network interface overview
Basic specifications
TCP/IP spec. Network layer
ARP, IP, ICMP, IPv6
Transport layer
TCP, UDP
Application layer
LPR, Port9100, FTP, HTTP, HTTPS, IPP, SNMPv1/v3, TELNET,
DHCP/BOOTP, DNS, DDNS, WINS, UPnP, Bonjour, SNTP, SMTP,
POP, Windows Rally (WSD Print, LLTD)
N
etBEUI: SMB, NetBIOS
NetWare: Remote printer mode (maximum eight print servers)
Print server mode (maximum eight file servers, 32 queues)
Support of encrypted passwords (in print server mode)
NetWare 6J/5J/4.1J (NDS, bindery)
SNMP
E
therTalk: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP
IEEE 802.1X: EAP-TLS, PEAP
(2) Cable
Non-shield twisted-pair cable with RJ-45 connector (Category 5 recommended)
1.5.2.3 Network interface signals
Pin No. Signal name Direction Function
1 TXD+ FROM PRINTER Transmitting data +
2 TXD- FROM PRINTER Transmitting data -
3 RXD+ TO PRINTER Receiving data +
4 – − Not in use
5 − − Not in use
6 RXD- TO PRINTER Receiving data -
7 − − Not in use
8 − − Not in use
1.5.2.2 Connector and cable of network interface
(1) Connector
100BASE-TX/10 BASE-T (automatically switched, not usable simultaneously)

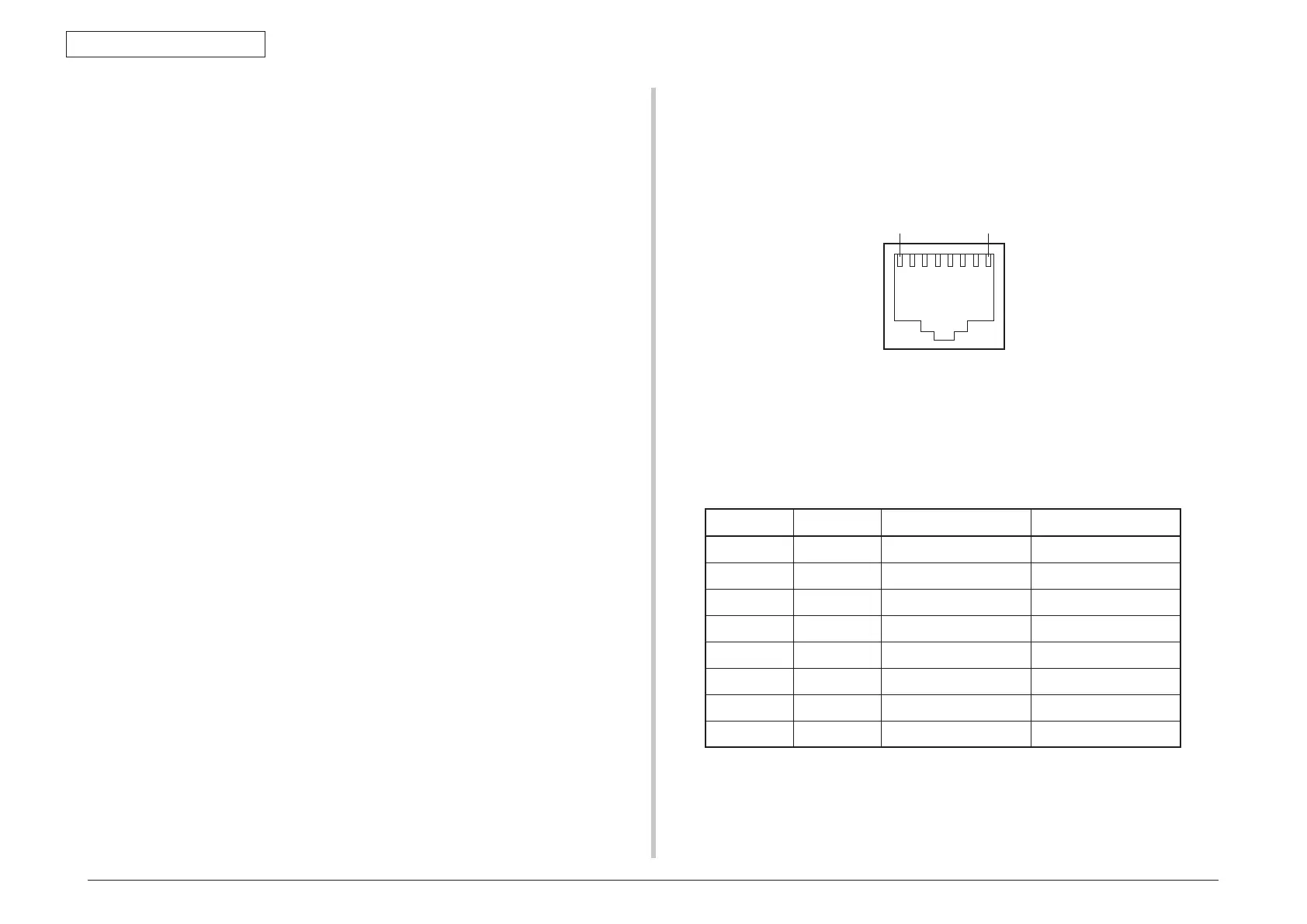

Connector pins arrangement
