44015503TH Rev. 1
79 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS

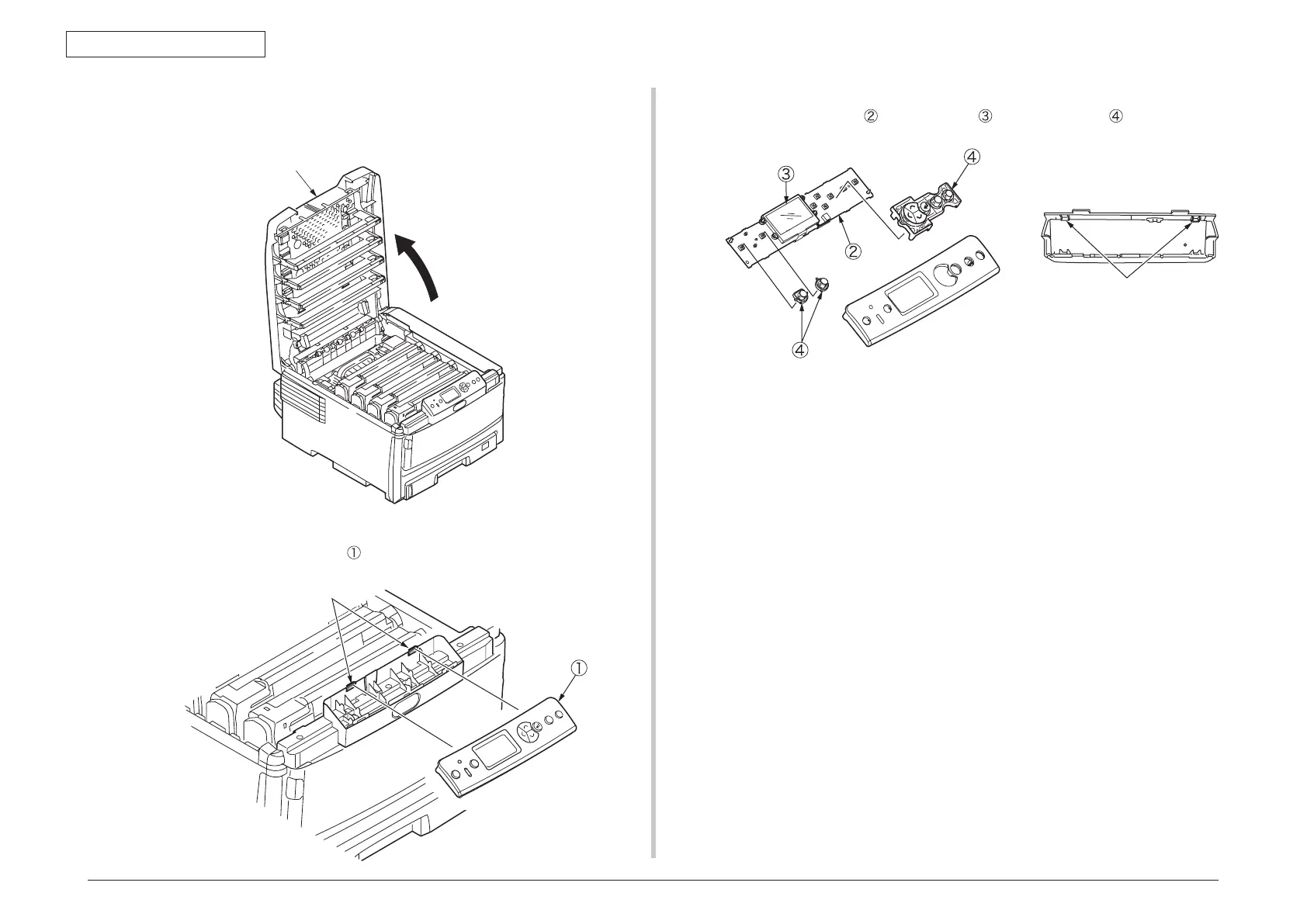

4.2.12 Board PRP
(1) Open the top cover.
(2) Unlatch the operator cover Assy.
at the two points A, remove the FFC and the
Assy.
(3) As shown in diagram (2), unlatch the operator panel cover Assy. at the two points B,
remove the board PRP
, the LCD button and the button key .
Unlatched points B
Diagram (2)
To Next Page
