Oki C830 - Rear Cover Assy

44015503TH Rev. 1
68 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
4.2.5 Rear cover Assy.

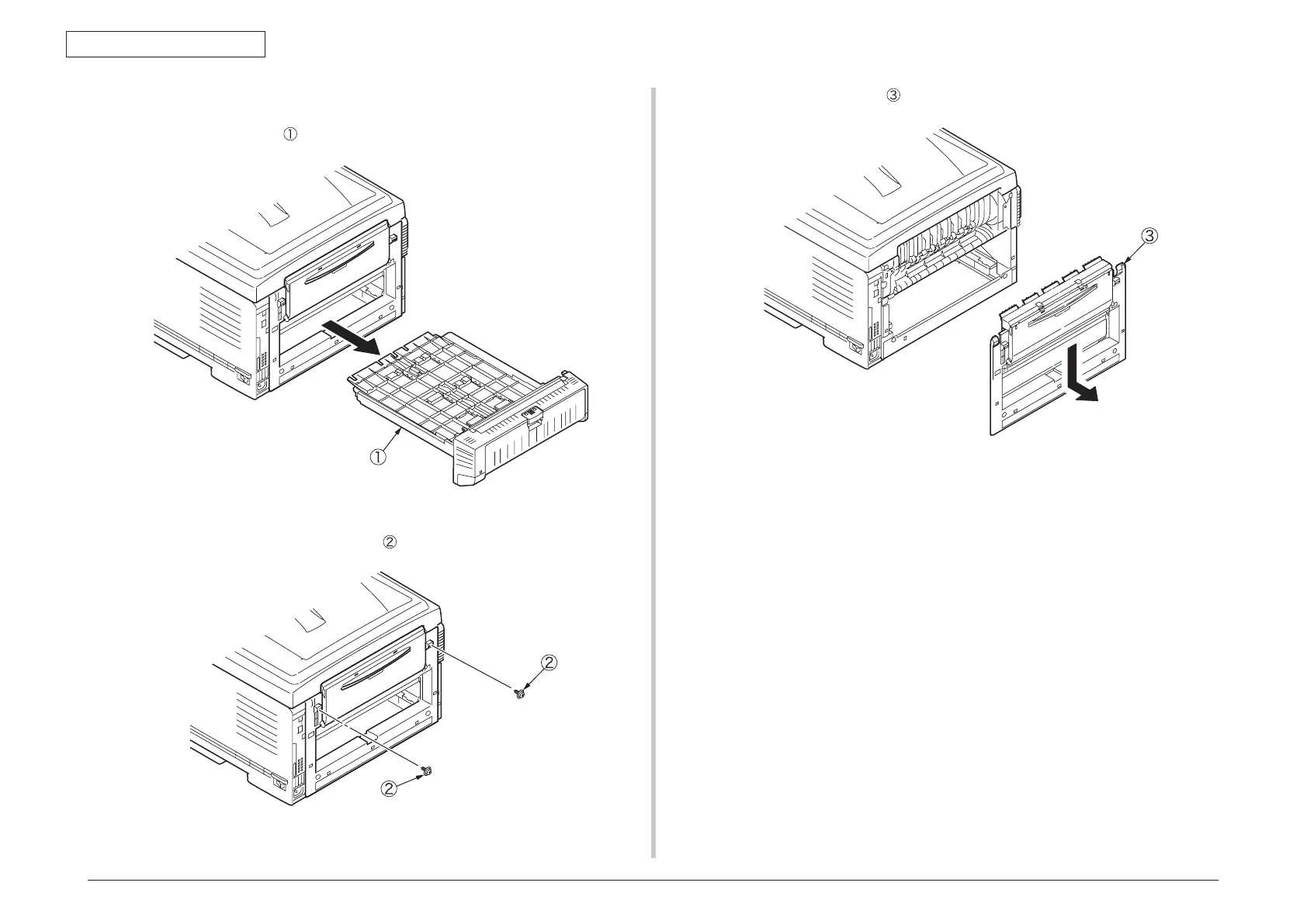

(1) Pull out the duplex unit .
(2) Remove the two screws (silver-colored)
(tool number 1).
(3) Sliding the rear cover Assy
in the direction of the arrow, detach it.
