Oki C830 - Belt Motor Assy. and Fuser Motor Assy

44015503TH Rev. 1
94 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
4.2.20 Belt motor Assy. and fuser motor Assy.
(1) Remove the main control PCB, print engine roller PCB (see sections 4.2.7 and 4.2.8).
(2) Remove the low-voltage power supply (see section 4.2.19, (7)).

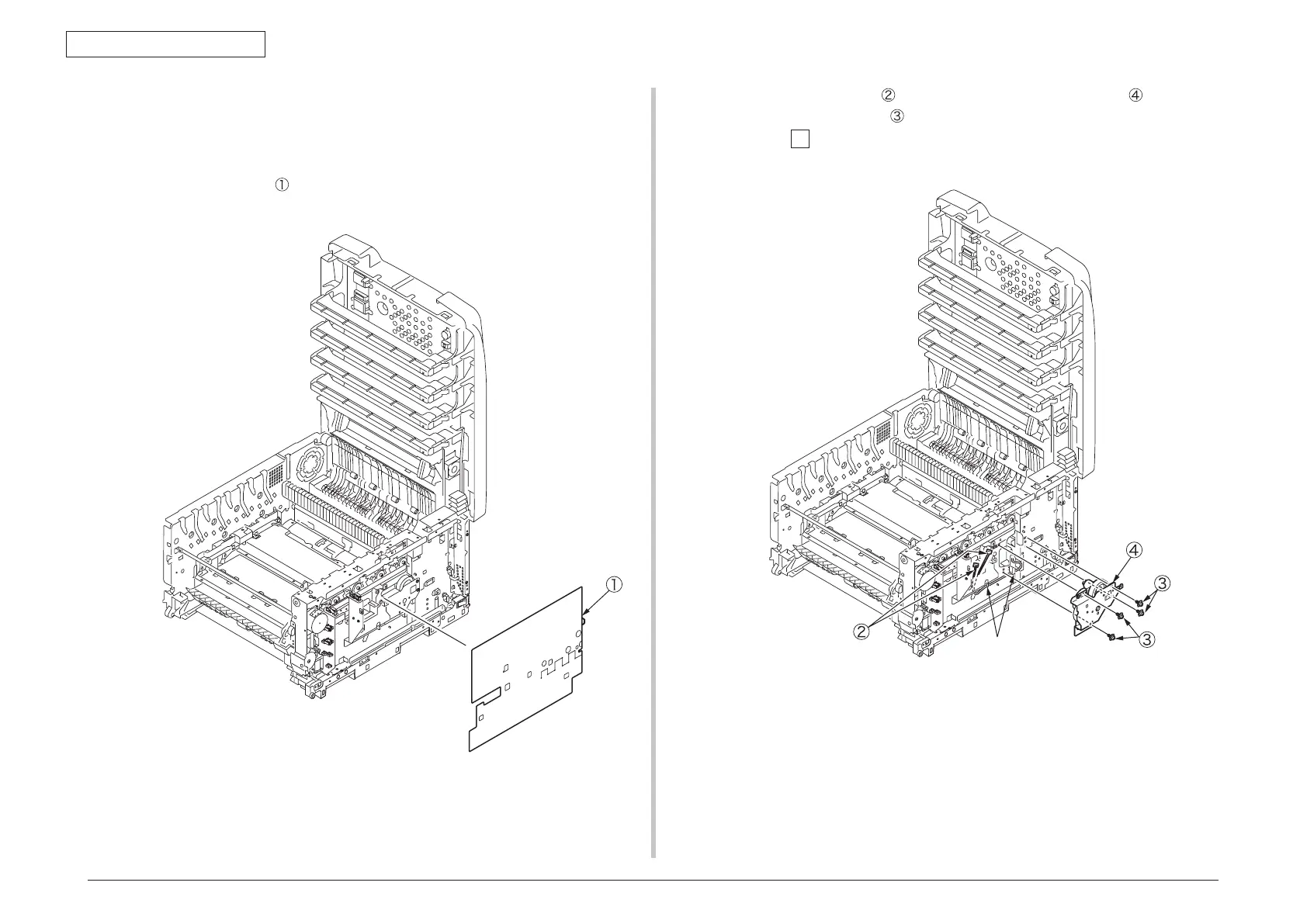

(3) Remove the insulator
.
(4) Unclamp the two cables
and, to detach the belt motor Assy. remove the
four screws (silver-colored) of which brackets are marked with a number 2 in a
rectangle (
2 ).
Clamped
