4. REPLACEMENT OF PARTS

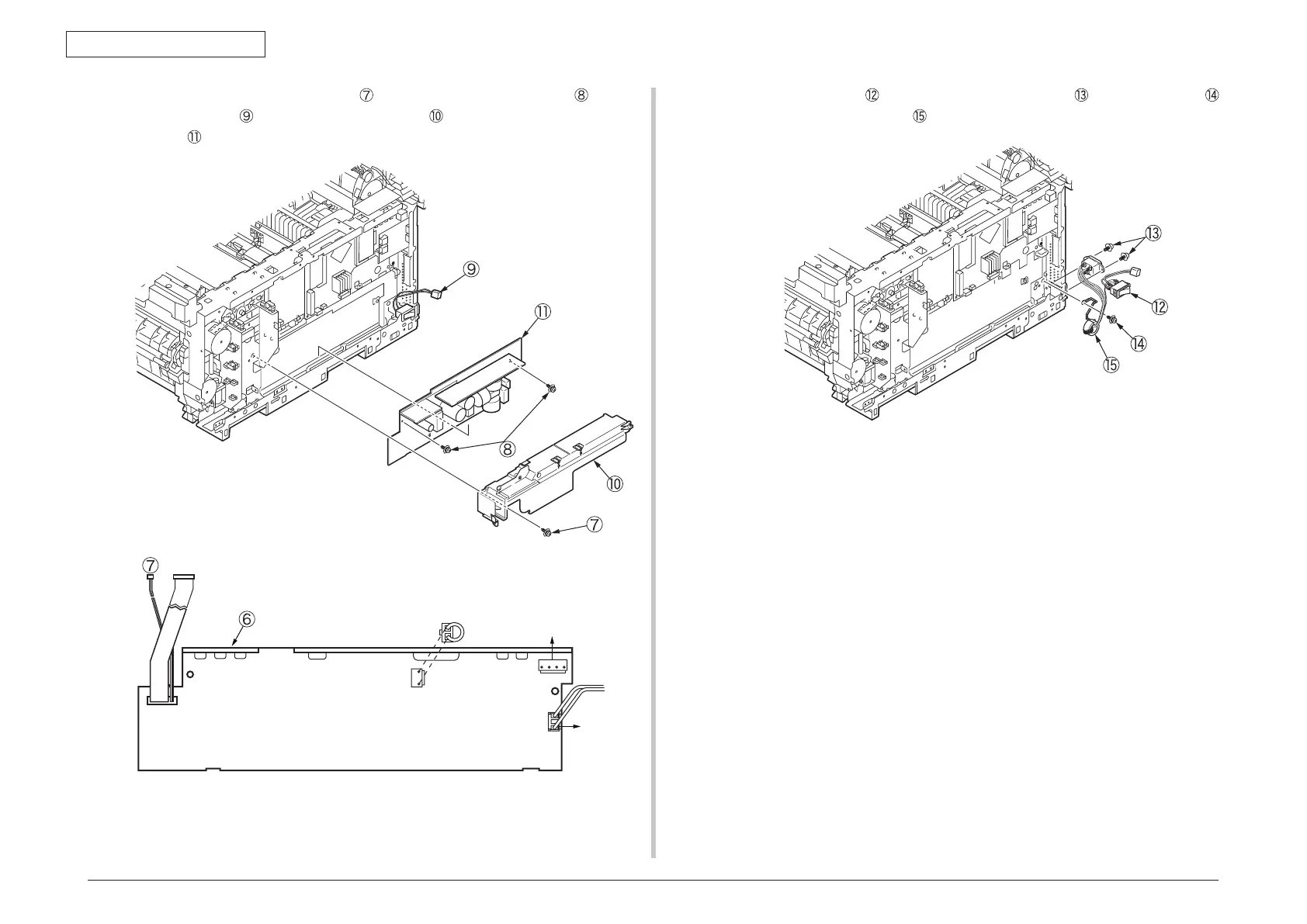

(8) Remove the AC switch
, the two screws (silver-colored) , the ground screw
and the AC power supply cable .
(7) Remove the screw (silver-colored) , the two screws (silver-colored) , the AC
cord connector and the power supply cover to detach the low-voltage power
supply .
CN3
Low-voltage fan
PRN PCB power connector
Fuser interface connector
Low-voltage power supply
CN6
CN2
CN6 short plug
AC switch
Note! CN6: AC input voltage setting switch connector
100V short plug contained but 230V short plug not contained.
