Oki C830 - Shaft-Ejection Assy. (FU) and Shaft-Ejection Assy. (FD)

44015503TH Rev. 1
80 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
4.2.13 Shaft-ejection Assy. (FU) and shaft-ejection
Assy. (FD)

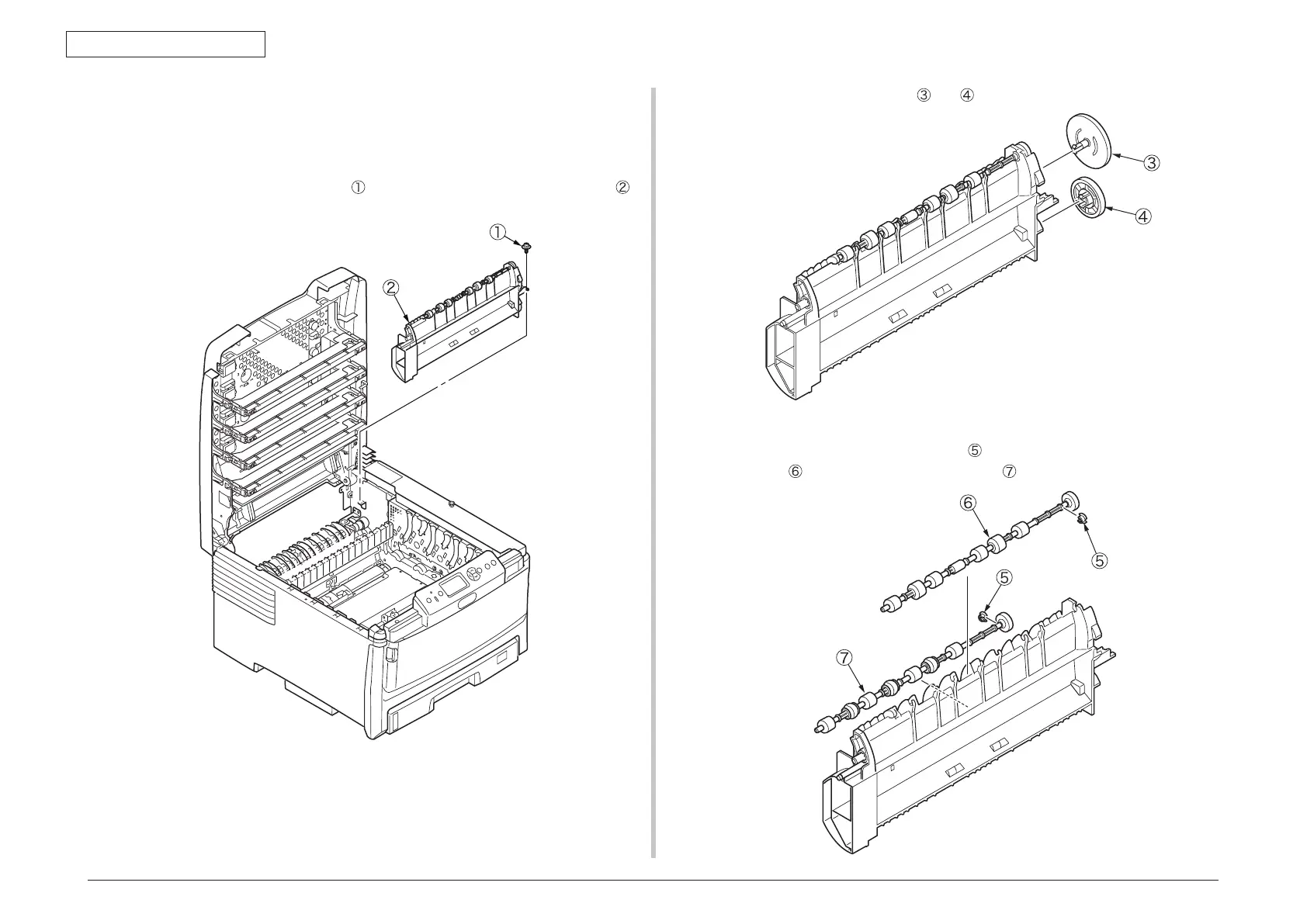

(1) Remove the rear cover Assy. (see section 4.2.5).
(2) Remove the screw (silver-colored)
to remove the guide-ejection-Assy.-upper .
(3) Remove the gears-idler-ejection
and .
(4) Remove the two molded E-shaped rings
and warp and detach the shaft-ejection
Assy. (FU) and the shaft-ejection Assy. (FD) .
