1. CONFIGURATION
1.5.3 Parallel interface specifications
1.5.3.1 Parallel interface overview
Item Details
Supported modes Compatible mode, nibble mode, ECP mode
Data bit length Compatible mode: 8 bit, Nibble mode: 4 bit, ECP mode: 9 bit
1.5.3.2 Connector and cable of parallel interface
(1) Connector
Printer side: 36-pole connector (female)
Product equivalent to 57LE-40360-12 (D56) (DDK Ltd.)
Cable side: 36-pole connector (male)
Product equivalent to 57FE-30360-20N (D8) (DDK Ltd.)

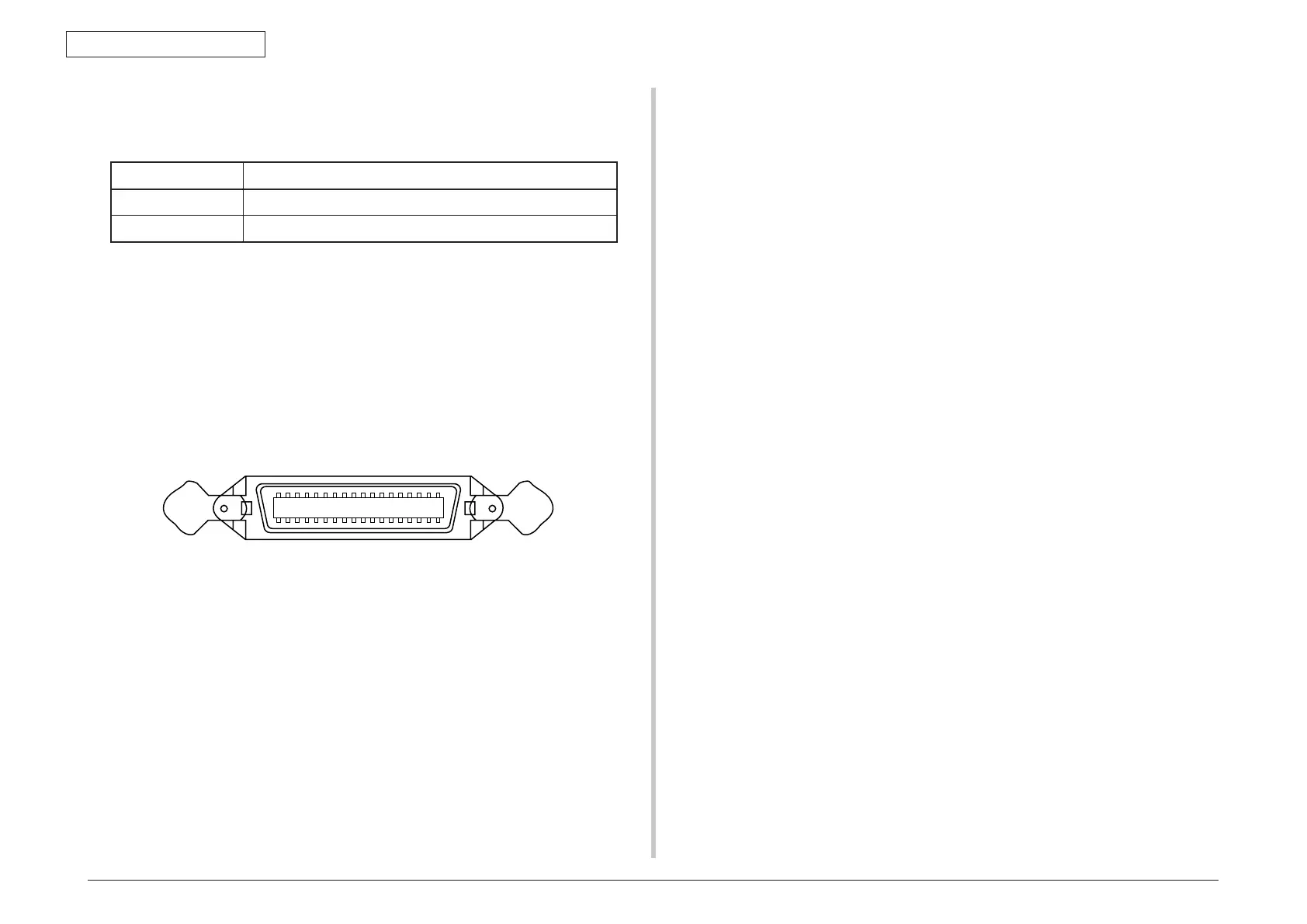

Pin arrangement on the interface cable side
(
2) Cable
Use a cable of 1.8 m or less.
(Use a shielded twisted-pair cable for noise prevention.)
1.5.3.3 Parallel interface levels
Low level: 0.0V to +0.8V
High level: +2.4V to +5.0V
