4. REPLACEMENT OF PARTS
(7) Remove the two screws and the fan Assy. (see section 4.2.7, (6)).
(8) Remove the five screws (silver-colored)
and slide out the main controller PCB
Assy. rearward (tool number 1) (see section 4.2.7, (7)).

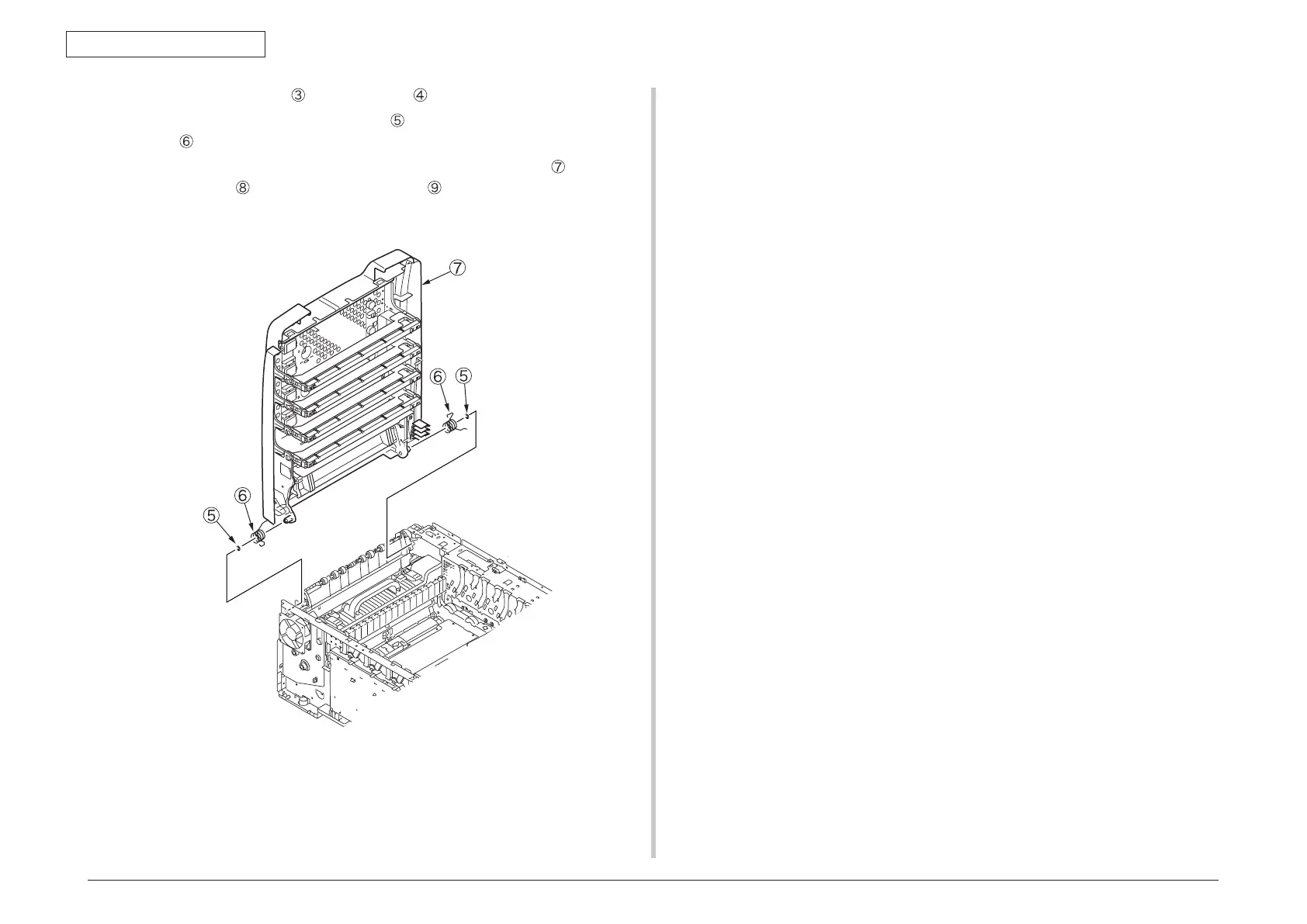

(9) Remove the screw (silver-colored), the two E-shaped retainer rings
and the two
torsion springs
to detach the top cover Assy. .
