4. REPLACEMENT OF PARTS

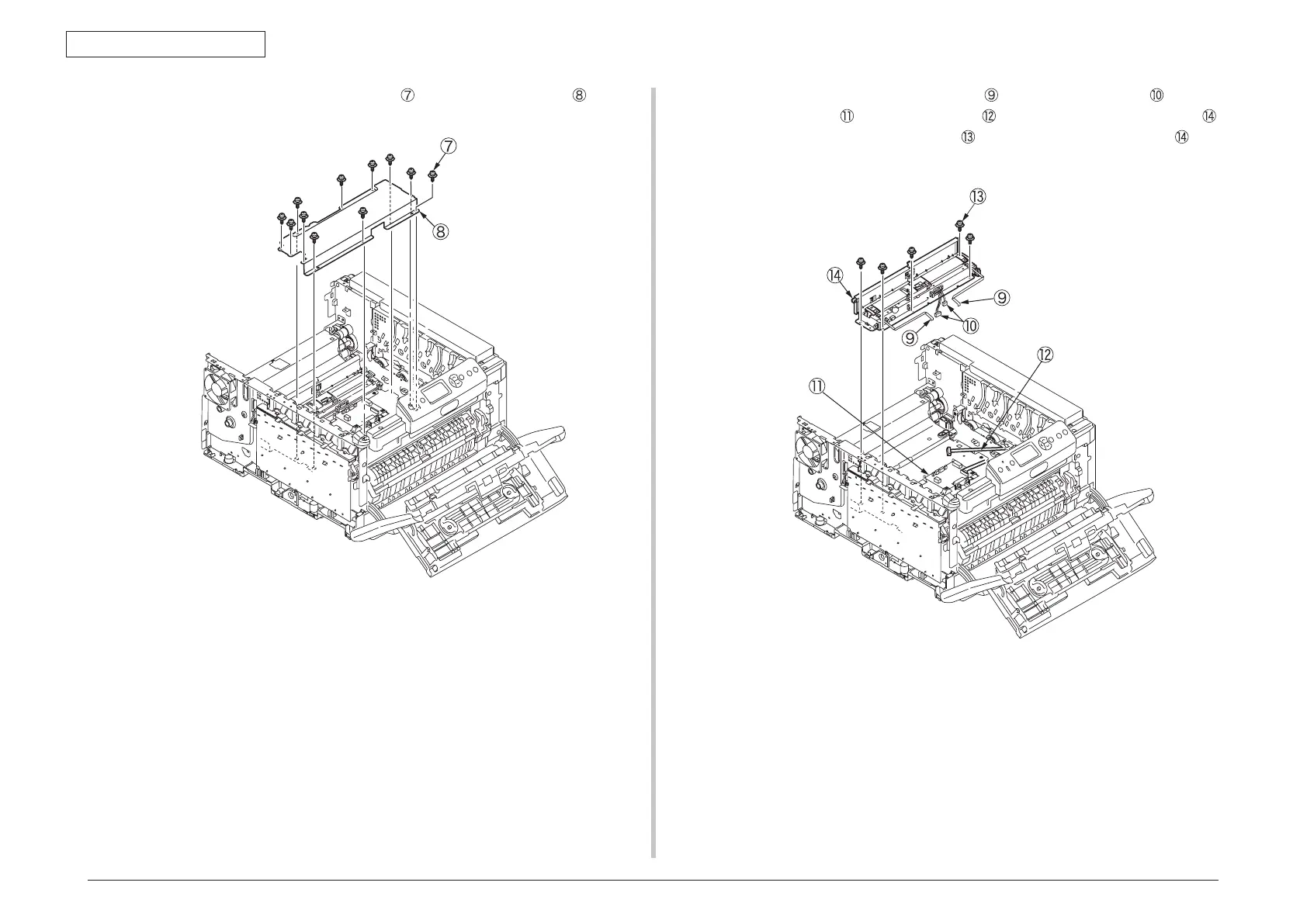

(6) Remove the right and left FFC connectors
and the two connectors from the
relay board (P6Y) , and the connector from the color-registration Assy .
Remove the five screws (silver-colored) to detach color-registration Assy. .
(5) Remove the eleven screws (silver-colored) to remove the cover plate .
