Oki C9650dn Network And Configuration Guide

Network summary printout > 64
N ETWORK SUMMARY PRINTOUT
The printer server’s network summary reports the printer’s MAC
Address (Ethernet address), required for MacOS configuration.
1. Turn the printer on.
2. Press the print server Test button for more than three
seconds and release.

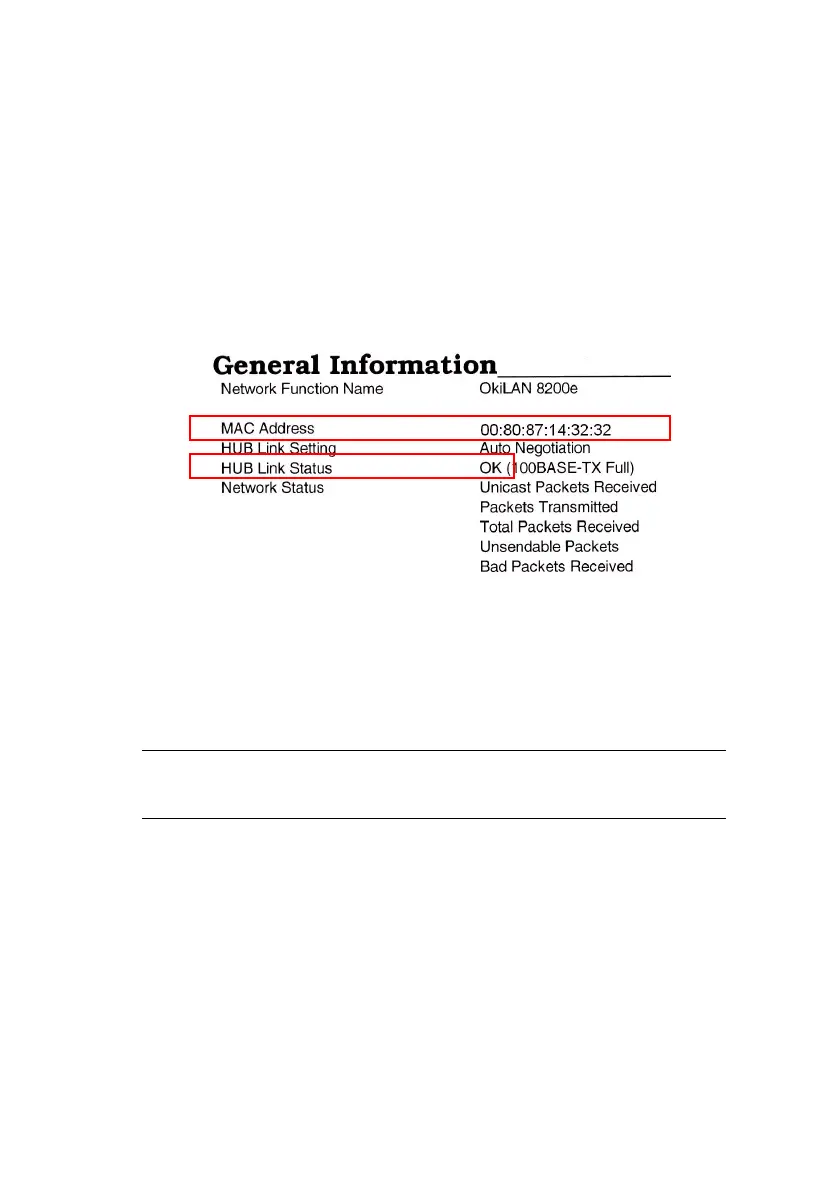

The MAC Address appears on the first page under General
Information.
The first six digits of the MAC Address are the same for all OkiLAN
print servers.
The last six digits of the MAC Address are unique to each OkiLAN
and are required to set up the print server for MacOS.
The hub link status results are also printed (normally “OK”).
NOTE
If anything other than “OK” is displayed see page 84.

Oki C9650dn Specifications

Performance

print speed color	36 ppm
print speed mono	40 ppm
time to first page color	10.5 sec
time to first page mono	9 sec
warm-up time	85 sec
resolution	1200 x 600 dpi

Memory

standard RAM	512 MB
maximum RAM	1, 024 MB
flash memory	4 MB
hard disk drive	40 GB

Power

power consumption operating typical	780W
power consumption peak	<1500W
power consumption standby	200W
power consumption power save	33W

Weight and Dimensions

size	23.6" x 24.6" x 18.5"
weight	167.5 lb
weight with consumables	76.0 kg
