Oki C9650dn Network And Configuration Guide

MacOS printer setup utility > 65
M AC OS PRINTER SETUP UTILITY
The Printer Setup Utility is a powerful MacOS-based utility for
configuring all print server functions using a graphical user
interface.

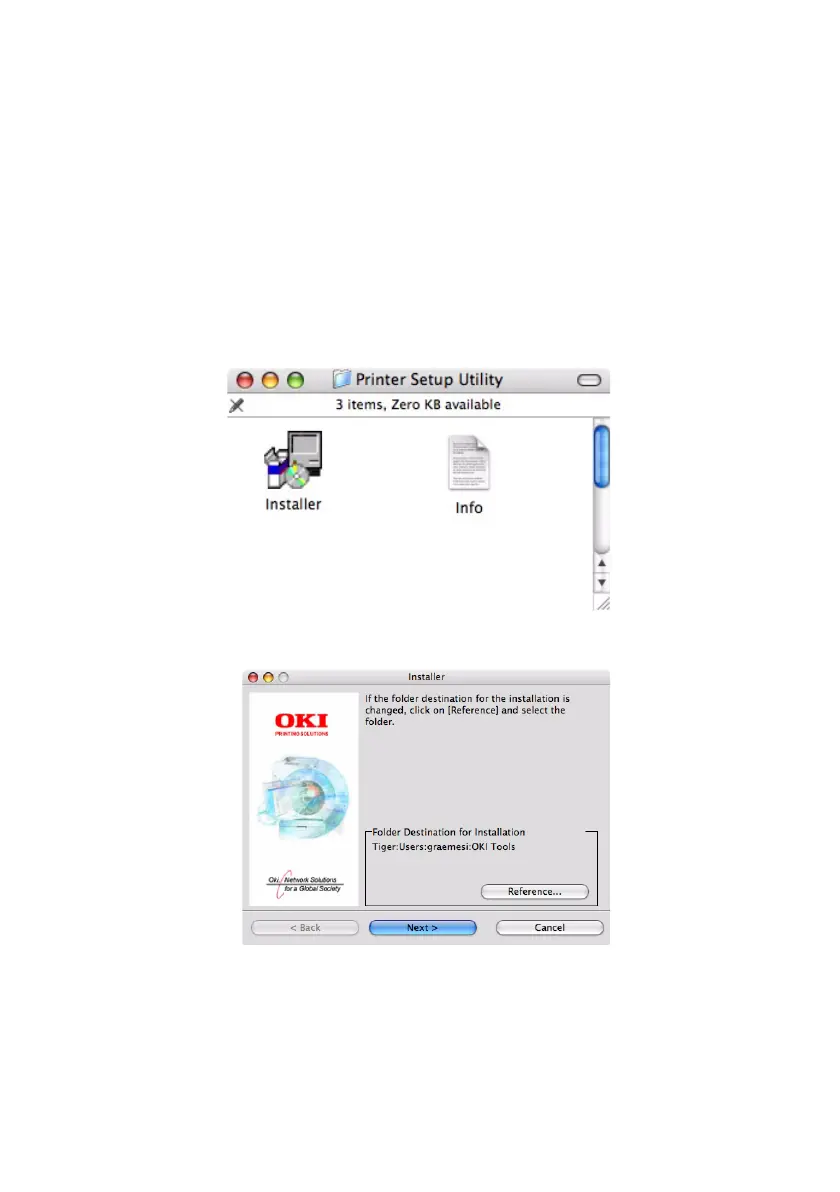

I NSTALLING THE PRINTER SETUP UTILITY
1. Insert the Network & Utilities CD into the CD-ROM drive.
2. Open the Printer Setup Utility folder and double-click
Installer.
3. Select the destination directory, then click Next.

Oki C9650dn Specifications

Performance

print speed color	36 ppm
print speed mono	40 ppm
time to first page color	10.5 sec
time to first page mono	9 sec
warm-up time	85 sec
resolution	1200 x 600 dpi

Memory

standard RAM	512 MB
maximum RAM	1, 024 MB
flash memory	4 MB
hard disk drive	40 GB

Power

power consumption operating typical	780W
power consumption peak	<1500W
power consumption standby	200W
power consumption power save	33W

Weight and Dimensions

size	23.6" x 24.6" x 18.5"
weight	167.5 lb
weight with consumables	76.0 kg
