Oki MC160MFP Maintenance Manual

44292401TH Rev.1
90 /
Oki Data CONFIDENTIAL
MAINTENANCE

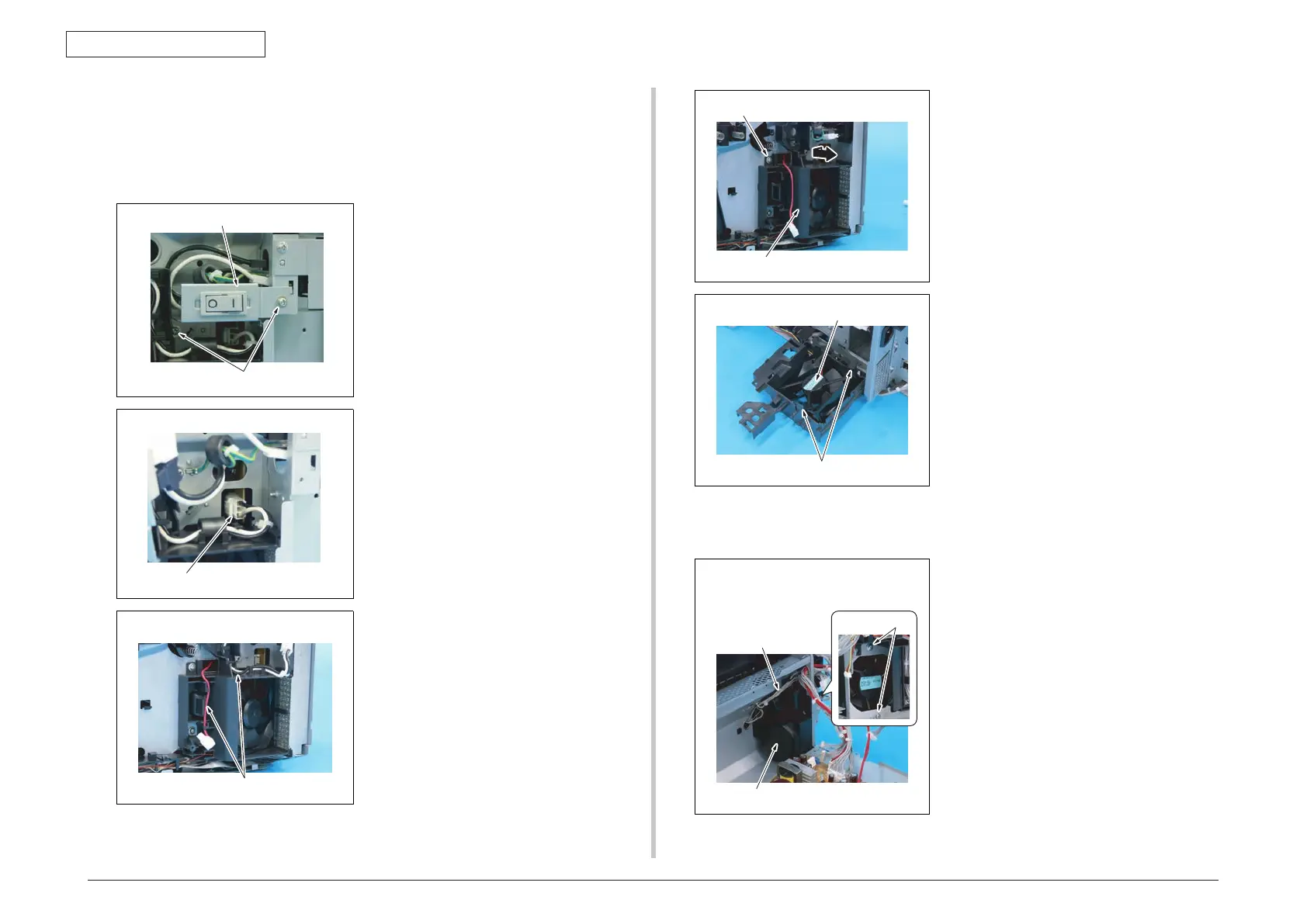

7.3.23 DC power supply fan motor (FM1)
1. Remove the rear cover.
See P.76
2. Remove the right cover.
See P.76
3. Remove the high voltage unit.
See P.82
4. Remove two screws [1], and remove
the main switch [2].
5. Disconnect the connector [1].
6. Remove the harness [1] from the
wire saddle.
A034F2C525DA
[1]
[2]
A034F2C014DA
[1]
A034F2C041DA
[1]
6.3.23 DC power supply fan motor (FM1)
7. Remove the screw [1] to take out the
DC power unit motor assy [2] as
shown in the picture.
8. Unhook two tabs [1], remove the DC
power supply fan motor [2].
7.3.24 Ozone ventilation fan motor (FM2)
1. Slide out the DC power supply assy.
See step 1 to 9 of P.81
2. Remove the harness [1] from the
harness guide.
3. Remove the screw [2], remove the
ozone ventilation fan motor assy [3].
A034F2C042DA
[1]
[2]
A034F2C043DA
[1]
[2]
A034F2C044DA
[2]
[1]
[3]
6.3.24 Ozone ventilation fan motor (FM2)
