Oki MC160MFP Maintenance Manual

44292401TH Rev.1
92 /
Oki Data CONFIDENTIAL
MAINTENANCE

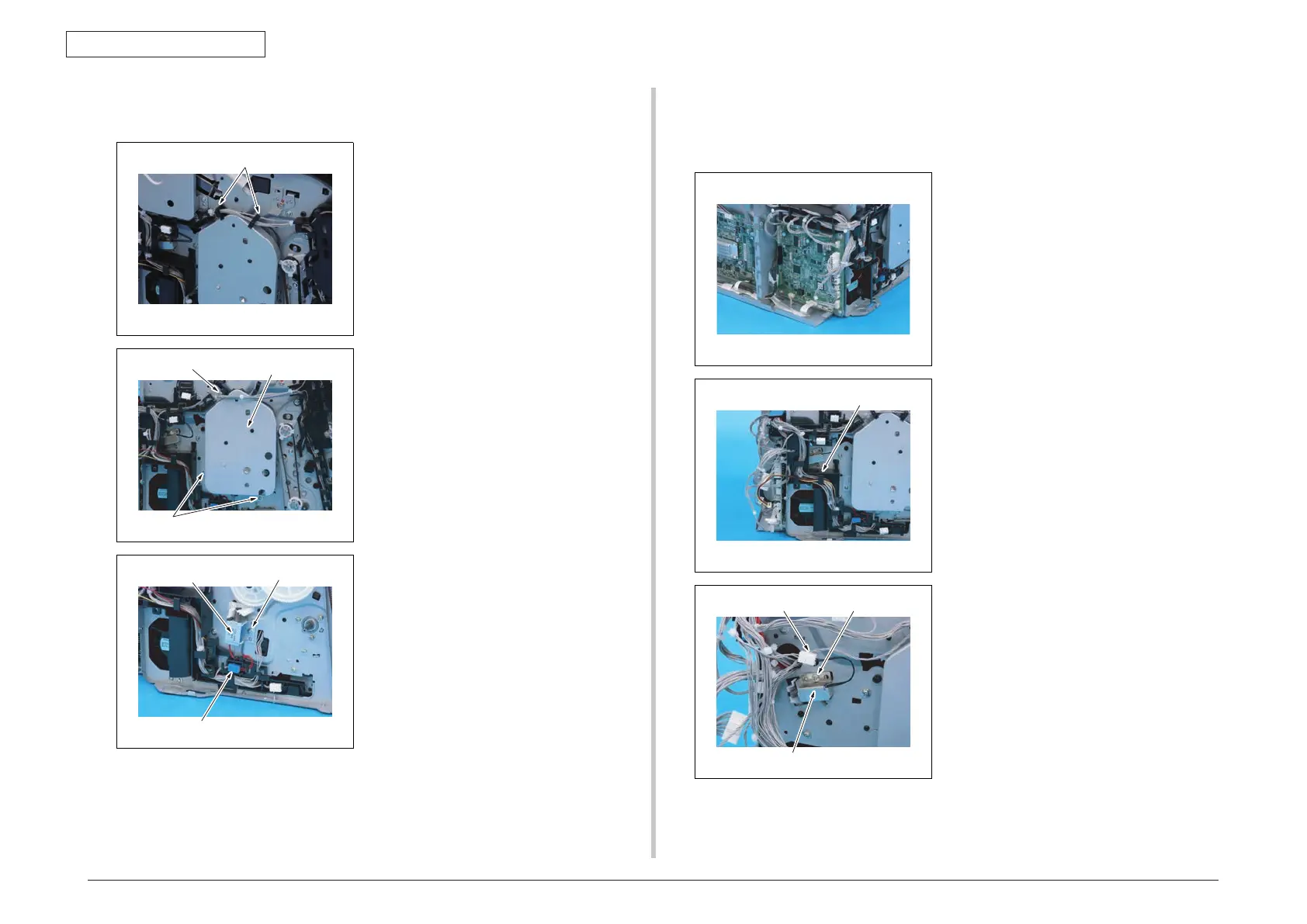

7.3.27 Registration roller solenoid (SD2)
1. Remove the left cover.
See P.76
2. Remove the harness from two wire
saddles [1].
3. Remove three screws [1], and
remove the plate [2].
4. Remove the screw [1] and discon-
nect the connector [2], and remove
the registration roller solenoid [3].
NOTE
• Use care not to lose the two
springs.
A034F2C101DA
[1]
A034F2C036DA
[1]
[1]
[2]
A034F2C055DA
[1]
[2]
[3]
7.3.28 2nd image transfer pressure/retraction solenoid (SD4)
1. Remove the rear cover.
See P.76
2. Remove the left cover.
See P.76
3. Disconnect all connectors and flat
cables from the printer control board.
4. Remove the harness from the har-
ness guide [1] to remove it.
5. Remove the screw [1] and discon-
nect the connector [2], and remove
the 2nd image transfer pressure/
retraction solenoid [3].
NOTE
• Use care not to lose the two
springs.
A034F2C006DA
A034F2C057DA
[1]
A034F2C058DA
[1][2]
[3]
6.3.27 Registration roller solenoid (SD2) 6.3.28 2nd image transfer pressure/retraction solenoid (SD4)
