Oki MC160MFP Maintenance Manual

44292401TH Rev.1
93 /
Oki Data CONFIDENTIAL
MAINTENANCE

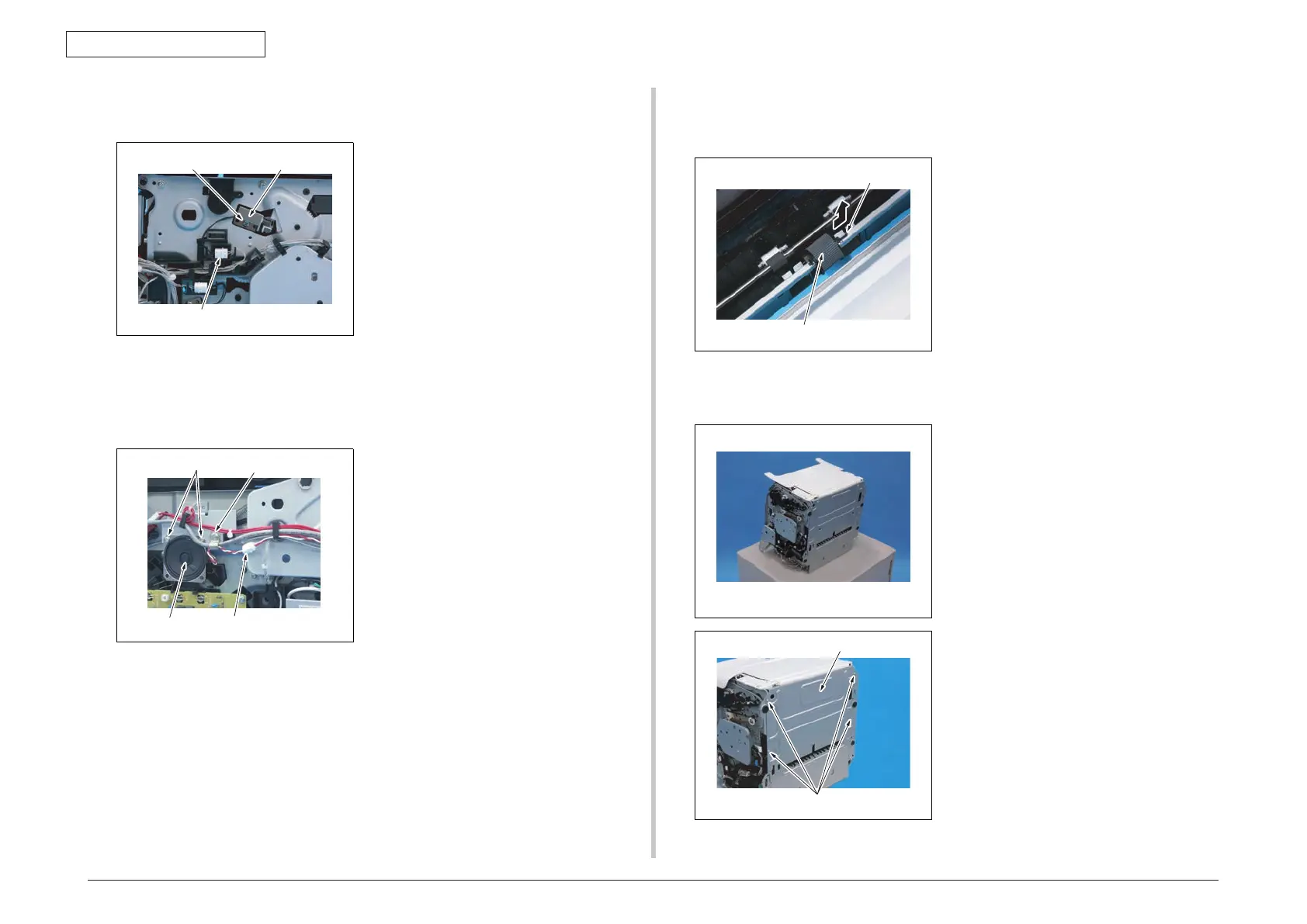

7.3.29 Cleaning blade pressure/retraction solenoid (SD5)
1. Remove the left cover.
See P.76
2. Remove the screw [1] and discon-
nect the connector [2], and remove
the cleaning blade pressure/retrac-
tion solenoid [3].
NOTE
• Use care not to lose the two
springs.
7.3.30 Speaker (SP)
1. Remove the right cover.
See P.76
2. Remove the screw [1].
3. Disconnect the connector [2] and
remove two screws [3], and remove
the speaker [4].
A034F2C056DA
[1]
[2]
[3]
A0HFF2C519DA
[2]
[1]
[3]
[4]
7.3.31 Tray 1 media feed roller
1. Open the top cover.
2. Remove the imaging cartridge.
See P.71
3. Remove the media feed roller [2]
pulling up the hook [1].
7.3.32 Separation pad
1. Remove the IR unit.
See P.85
2. Lay the main body of the printer on
its back.
NOTE
• Put the printer on the flat place
such as a desk for this work, not to
impose unreasonable force on the
machine.
3. Remove four screws [1], and remove
the plate [2].
NOTE
• Use care not to lose the two
springs.
A034F2C032DA
[1]
[2]
A034F2C089DA
A034F2C027DA
[1]
[2]
6.3.29 Cleaning blade pressure/retraction solenoid (SD5) 6.3.31 Tray 1 media feed roller
6.3.32 Separation pad
6.3.30 Speaker (SP)
