44292401TH Rev.1
94 /
Oki Data CONFIDENTIAL
MAINTENANCE

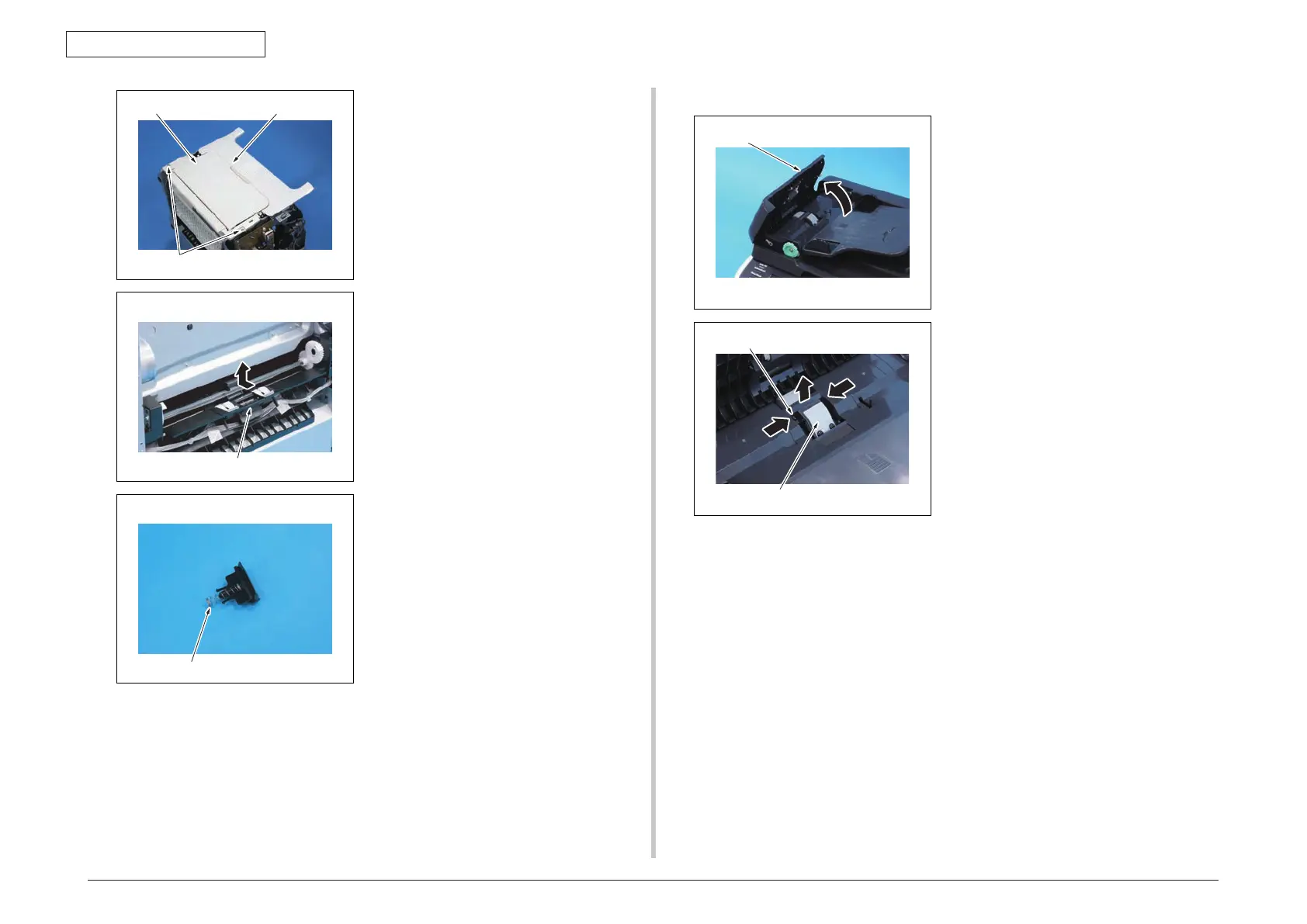

7.3.33 ADF separation pad
1. Open the ADF top cover [1].
2. Unhook the tab [1], and remove the
ADF separation pad [2].
A034F2C062DA
[1]
A034F2C113DA
[1]
[2]
6.3.33 ADF separation pad
4. Remove two screws [1] and open the
front cover [2] to remove the media
feed tray unit [3].
5. Remove the separation pad [1].
6. Remove the spring [1].
A034F2C090DA
[1]
[2][3]
A034F2C033DA
[1]
A034F2C034DA
[1]
