Oki MC560n User Manual

Operation > 110
The level of saturation determines whether the color
is pale or rich.
(b) Lightness
Increase the lightness by moving the triangle to the
right or to the left to decrease the lightness.

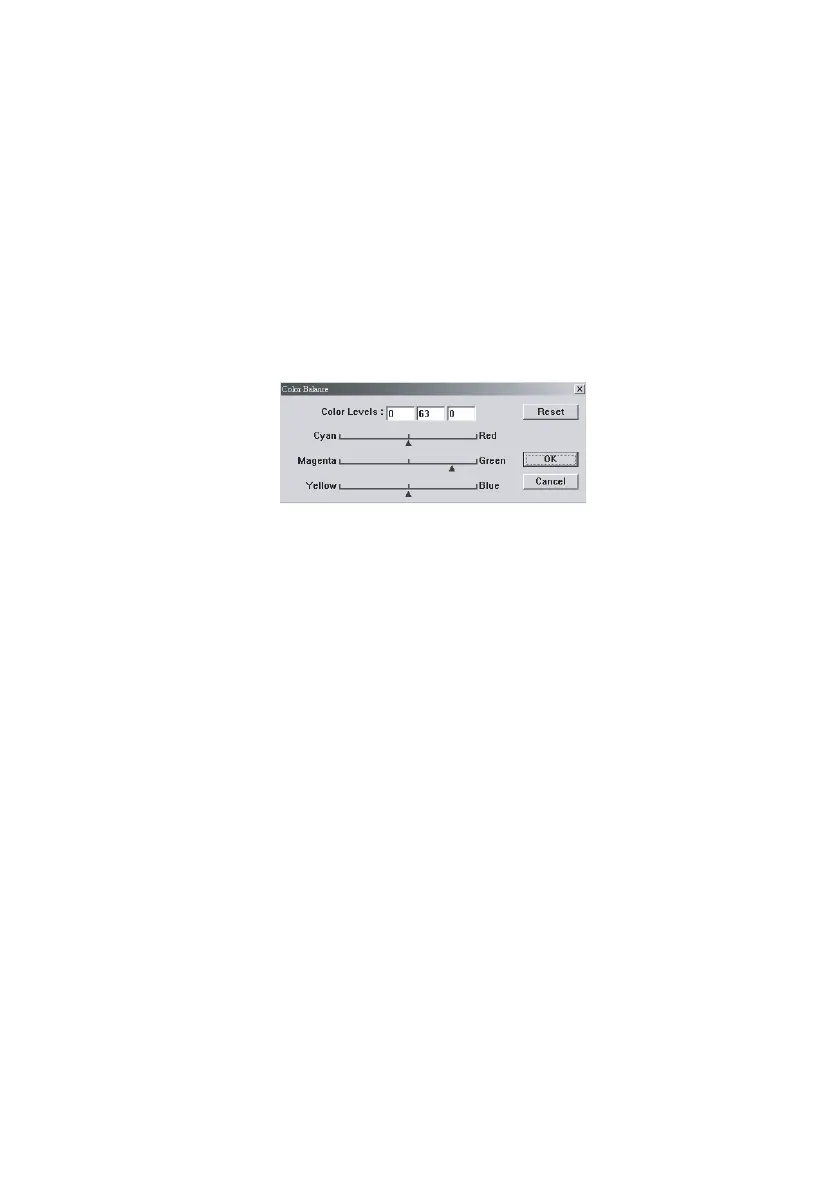

5. Using color balance
The Color Balance control allows you to set optimal image
color quality.
Scanner 13.eps
You can either move the relevant pointer toward a color (in
the above example 63% green has been selected) or, if
known, enter the figure in the box at the top.
The first box refers to the Cyan/Red percentage content,
the second to Magenta/Green and the third to Yellow/Blue.
6. Color drop-out
Click the button and the dialog box below will be displayed.
This allows you to remove one of the R (Red), G (Green),

Oki MC560n Specifications

Printer Specifications

print speed (color)	Up to 20 ppm
print speed (black & white)	32 ppm
time to first page (color)	As fast as 11 seconds
time to first page (black & white)	8 seconds
print resolution	1200 x 600 dpi
processor speed	500 MHz
duty cycle	60, 000 prints/copies per month

Copier Specifications

copy speed (color)	Up to 20 cpm
copy speed (black & white)	32 cpm
first copy out (color)	As fast as 23 seconds
first copy out (black & white)	19 seconds
copy resolution	Up to 600 x 600 dpi

Scanner Specifications

scan speed (color)	Up to 10 cpm
scan speed (black & white)	20 cpm
scan resolution	Up to 4800 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	3 seconds/page
fax resolution	Up to 200 x 400 dpi

System Memory

standard imaging RAM	256 MB
maximum imaging RAM	768 MB
optional hard disk drive	40 GB

Paper Handling

scanner ADF capacity	Up to 50 sheets
paper sizes (main tray)	from 4.1" x 5.8" to 8.5" x 14"
standard printer input	400 sheets
maximum printer input	930 sheets
output capacity	250 sheets face down, 100 sheets face up

Environmental

dimensions (WxDxH)	19.7" x 23.6" x 26.7"
weight	81.6 lb.
power consumption (peak)	1200W
power consumption (standby)	110W
power consumption (normal)	490W
