Installing upgrades > 141
All that remains is to adjust the Windows printer driver to
make full use of the new features. See “Adjusting windows
printer drivers” on page 147.
M
EMORY
UPGRADE
This section explains how to install additional RAM memory into
your MFP as a memory upgrade.
The model comes equipped with 256MB of main memory.This can
be upgraded with an additional memory board containing 512MB,
giving a total memory capacity of 768MB maximum.
1. Switch the MFP off and disconnect the AC power cable.

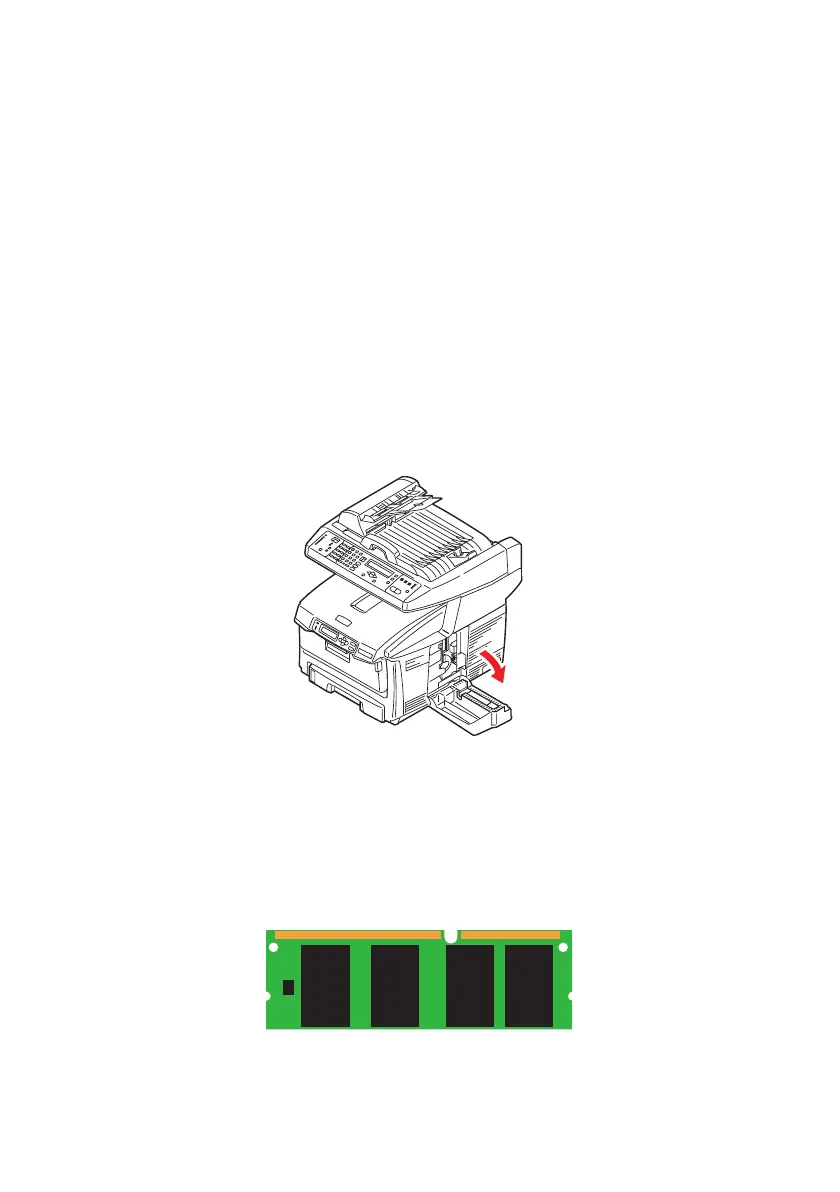

2. Pull open the access panel on the side of the machine.
Side cover open.eps
3. Carefully remove the new memory board from its
wrapping. Try to handle the board only by its short edges,
avoiding contact with any metal parts as far as possible.
In particular, avoid touching the edge connector.
4. Notice that the memory board has a small cutout in the
edge connector, which is closer to one end than the other.
RAM Board.eps
5. Identify the RAM expansion slot (1) in the machine.
